Three-Phase Power Distribution Transformer

This three-phase transformer is designed for efficient power distribution. It facilitates reliable grid connections and power transmission in various industrial applications.

Request a Quote Download PDFPDF

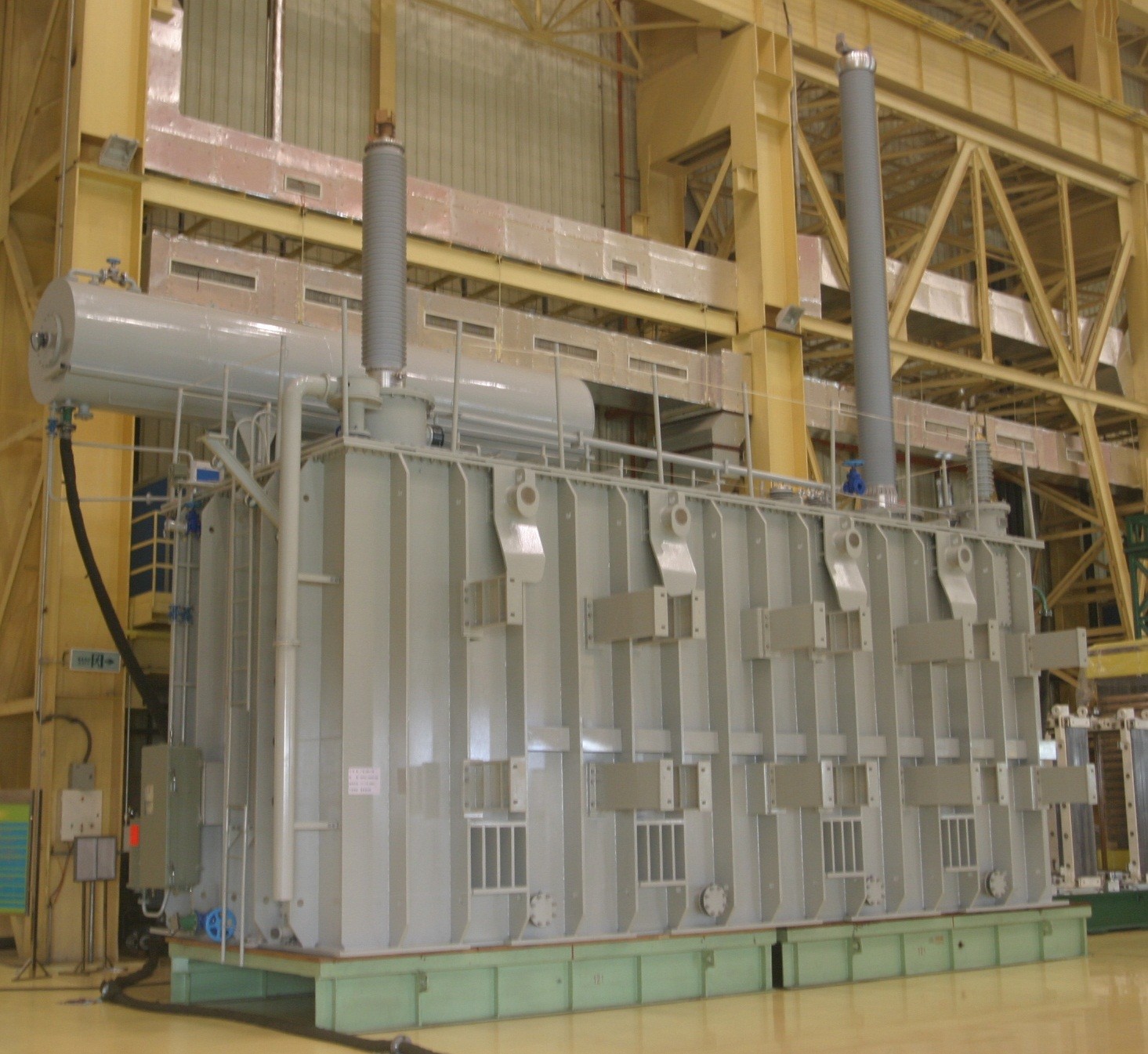

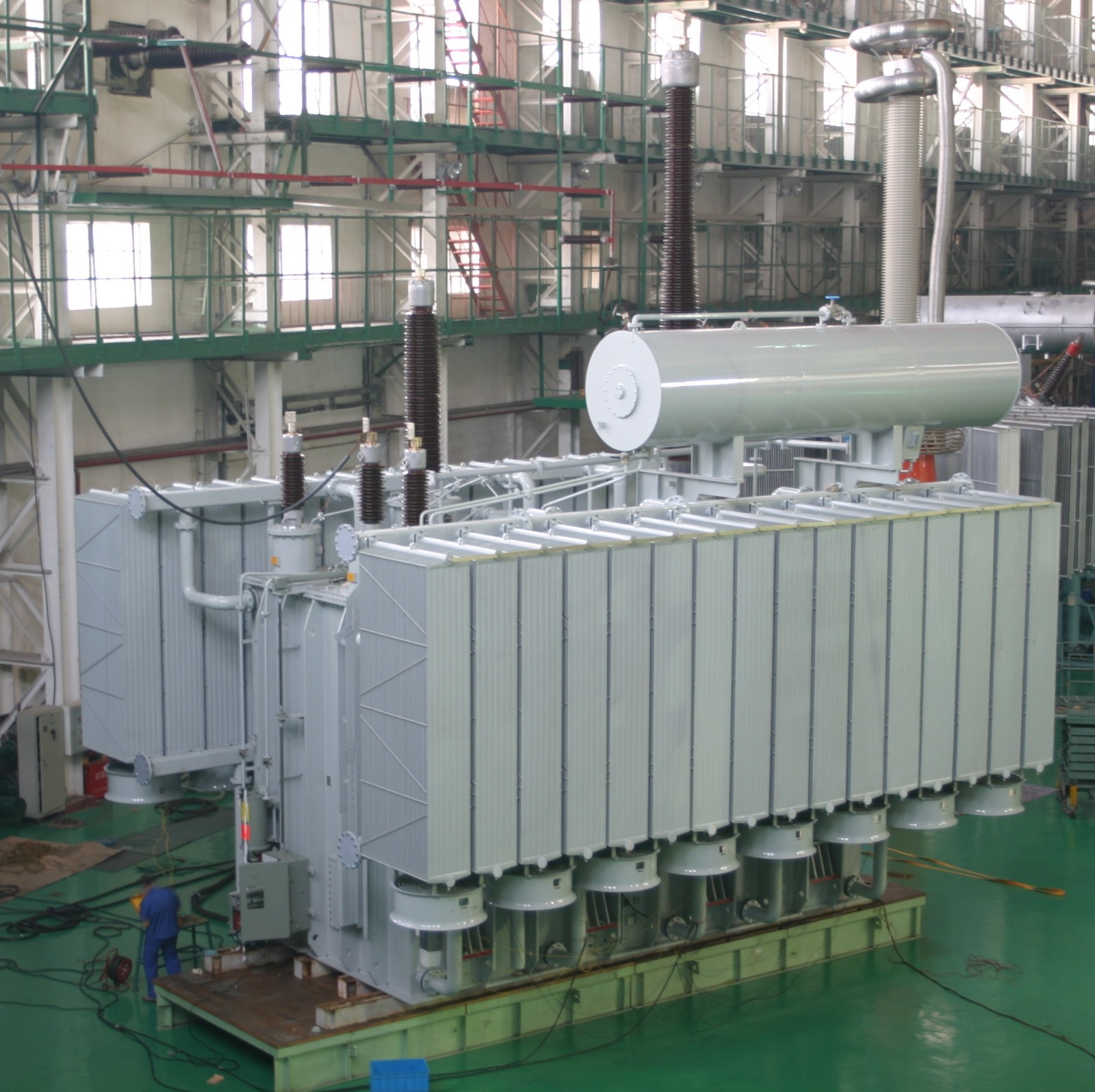

Three phase Distribution Transformer - Image 1

Technical Specifications

Product Overview

High-Efficiency Three-Phase Power Distribution

This three-phase power distribution transformer is engineered for high-performance power conversion in demanding industrial environments. It supports voltage classes up to 500kV and offers a capacity of up to 1500MVA, ensuring robust power delivery for large-scale utility and substation applications. Designed with heavy-duty cooling and monitoring systems, it provides reliable thermal management and operational safety for continuous outdoor service.

Technical Specifications

Voltage Class: 500 kV
Capacity: 1500 MVA

Dimensions and Weight

Weight Metrics

525 ton

Total Weight

64 ton

Max Single Unit Weight

Outline Dimensions: 16.7m x 9.1m x 11.6m
