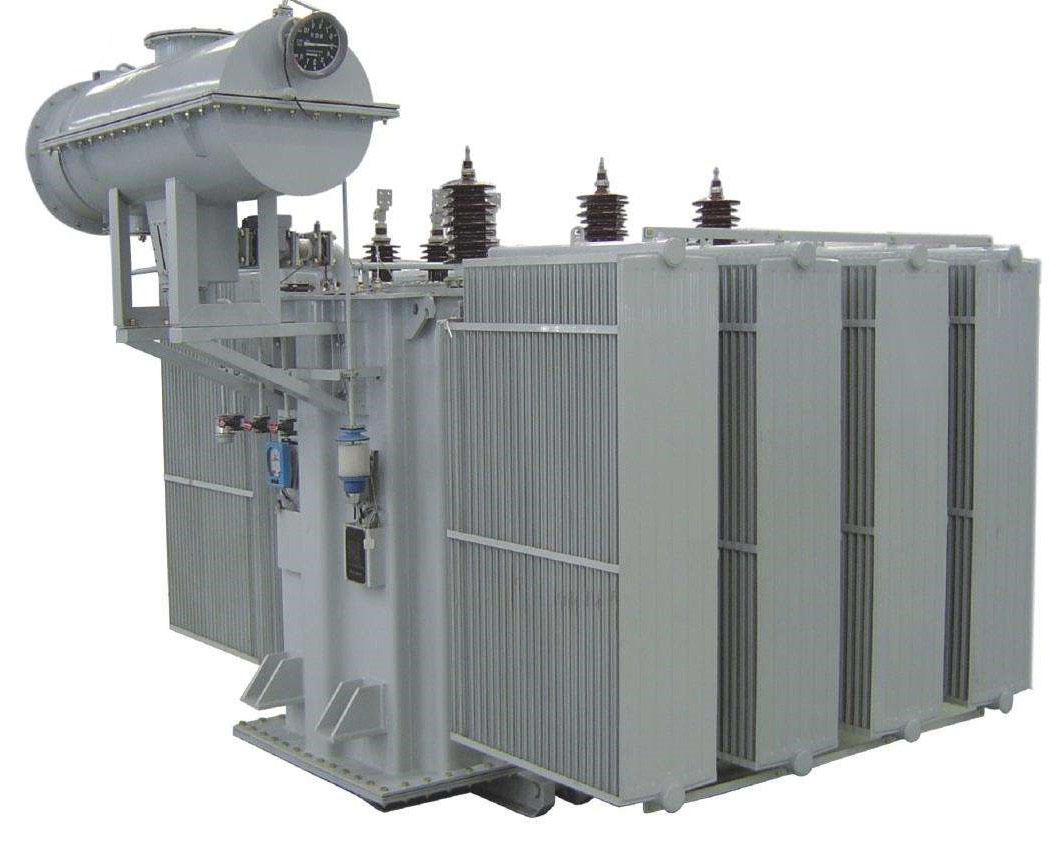

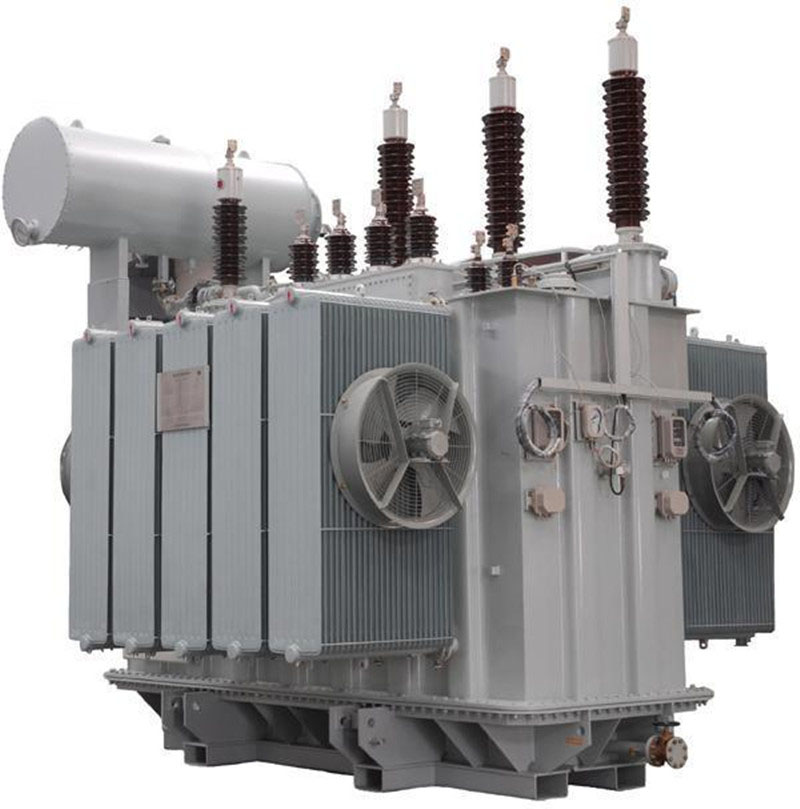

Three-Phase Distribution Transformer
This high-pressure transformer utilizes advanced analysis software for core and winding design. It features superior process equipment and efficient manufacturing for small volume, light weight, and low loss.
Technical Specifications
Overview
High-Performance Three-Phase Distribution Transformer
This high-pressure distribution transformer is engineered using advanced analysis software to optimize the core, winding, and fuel tank design. It features a compact, lightweight construction characterized by low loss, low noise, and minimal partial discharge for superior operational efficiency. Designed for reliability and environmental protection, it offers easy installation and maintenance to effectively reduce long-term running costs for power distribution networks.
Core Performance
Performance Highlights
120 KV
Max High Voltage
63,000 kVA
Max Capacity
11 KV
Max Low Voltage
Technical Configuration
Voltage & Connection
| High Voltage (KV) | Tapping Range | Low Voltage (KV) | Connection Symbol |
|---|---|---|---|
| 63, 66, 69, 110, 120 | ±8x1.25% | 6.3, 6.6, 10.5, 11 | Ynd11 |

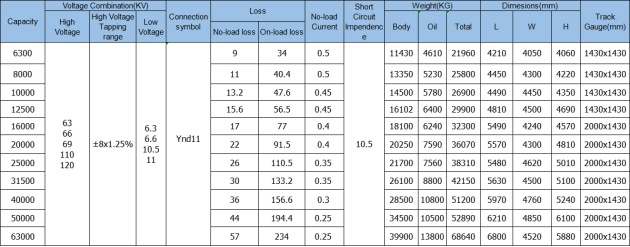

Detailed Specifications
Model Capacity and Loss Data
| Capacity (kVA) | No-load Loss (kW) | On-load Loss (kW) | No-load Current (%) |
|---|---|---|---|
| 6,300 | 9 | 34 | 0.5 |
| 10,000 | 13.2 | 47.6 | 0.45 |
| 16,000 | 17 | 77 | 0.4 |
| 31,500 | 30 | 133.2 | 0.35 |
| 63,000 | 57 | 234 | 0.25 |
Physical Characteristics
Weight and Dimensions (63000 kVA Model)
- Body Weight: 39,900 kg
- Oil Weight: 13,800 kg
- Total Weight: 68,640 kg
- Length (L): 6,800 mm
- Width (W): 4,520 mm
- Height (H): 5,880 mm
- Track Gauge: 2000 x 1430 mm
Design Features
- Key Features
- Low LossLow NoiseLow Partial DischargeEnergy ConservingEnvironmental ProtectionSmall VolumeLight Weight
- Maintenance & Reliability
- Yes
