JLS4 Outdoor Voltage Transformer
The JLS4 voltage transformer is designed for voltage transformation in power distribution systems. This oil-immersed transformer is suitable for metering and protection applications in medium-voltage power networks.
Technical Specifications
Product Overview

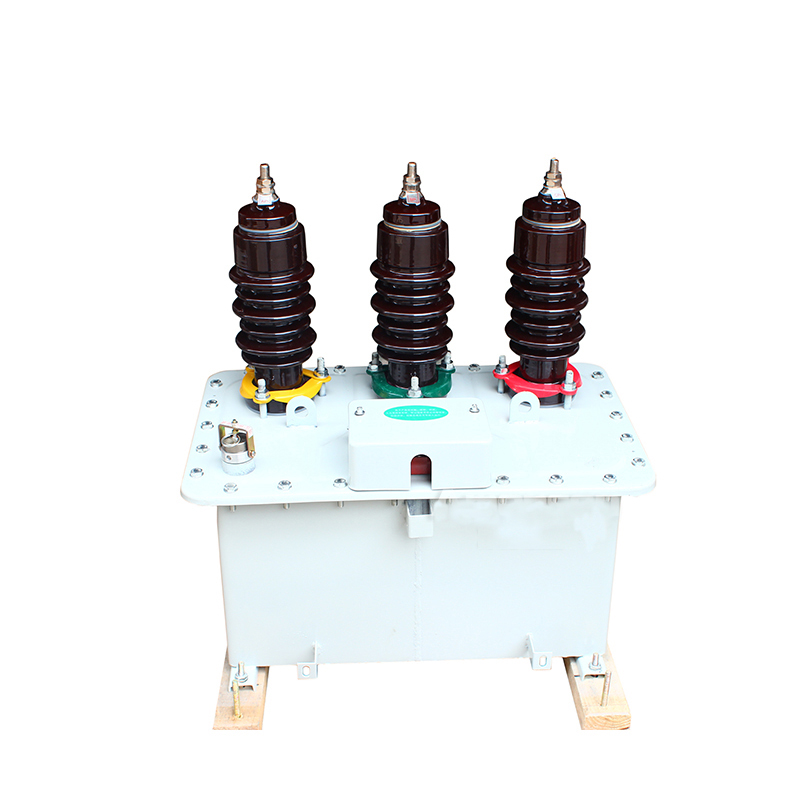

JLS4 Series Outdoor Combined Transformer
The JLS4 series is a robust, oil-immersed combined transformer engineered for reliable performance in outdoor medium-voltage power networks. Designed for versatility, it supports voltage configurations of 6kV, 10kV, and 35kV, providing essential metering, control, and protection capabilities. Its durable construction ensures high accuracy and stability, making it an ideal solution for efficient electrical network management.
Technical Specifications
Key Performance Metrics
60 I IN
1s Thermal Current
150 I IN
Rated Dynamic Current
400 VA
Max Thermal Limiting Output

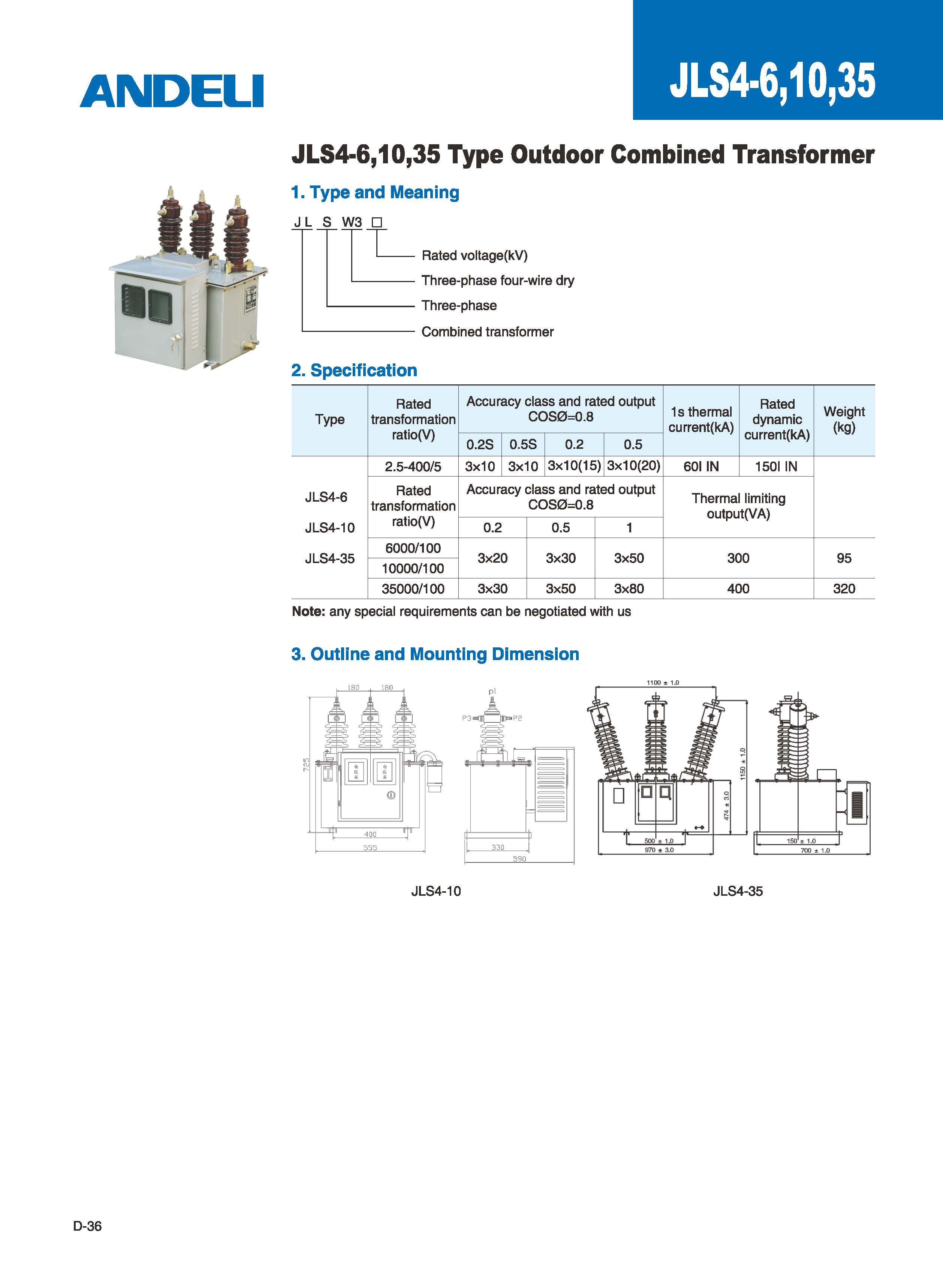

Model Specifications
| Model | Rated Voltage | Weight |
|---|---|---|
| JLS4-6 | 6kV | N/A |
| JLS4-10 | 10kV | N/A |
| JLS4-35 | 35kV | 95kg - 320kg |
- Rated Voltage Configurations
- 6kV10kV35kV
Installation and Compliance
Accuracy Classes
- 0.2S
- 0.2
- 0.5S
- 0.5
- 1
- Installation Environment
- Outdoor
