Technical Specifications

Product Overview

Industrial-Grade Power Distribution

This three-phase oil-immersed distribution power transformer is engineered for reliable voltage transformation in mining and industrial power distribution networks. Designed for efficient cooling and insulation, it provides stable operation for illumination and driving power requirements. The unit is built for durability, requiring no life-machine examination after standard transportation.

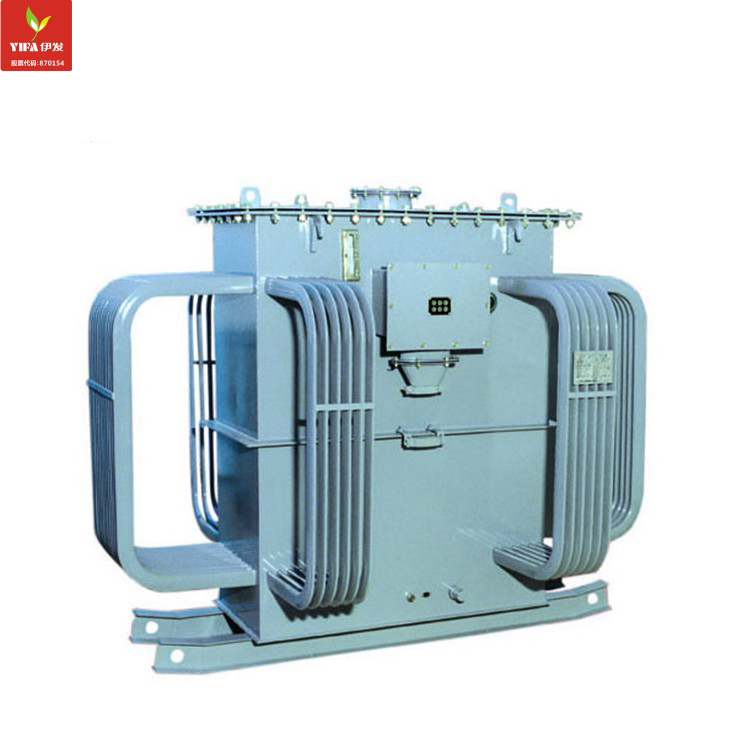

Three-phase oil-immersed transformer construction with visible cooling tubes

Technical Specifications

Maximum Capacity: 630 KVA
Maximum Voltage: 10 KV
Cooling Method: Oil-immersed
Phase Configuration: Three-phase

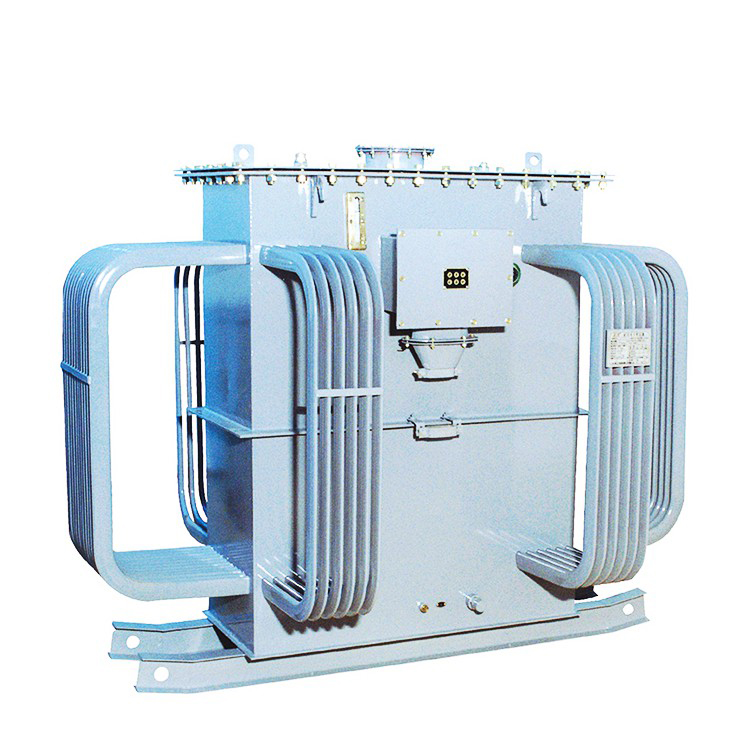

Robust industrial distribution transformer exterior

Safety & Features

Explosion-proof Required: No
Primary Applications: MiningIlluminationDriving PowerIndustrial Distribution

Logistics

Installation Notes: Unshipped spare parts may be assembled on-site for checking and acceptance purposes.

Interested in Sourcing This Product?

Submit a request to connect with verified manufacturers who produce this product.

Three-Phase Oil-Immersed Distribution Power Transformer

This three-phase oil-immersed distribution power transformer is designed for distributing power, especially for mine illumination. The transformer does not need life-machine examination after transportation, and spare parts can be assembled for checking and acceptance.

Request a Quote Download PDFPDF

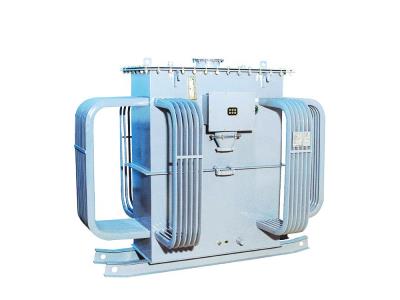

Three-Phase Oil-Immersed Distribution Power Transformer - Image 1
