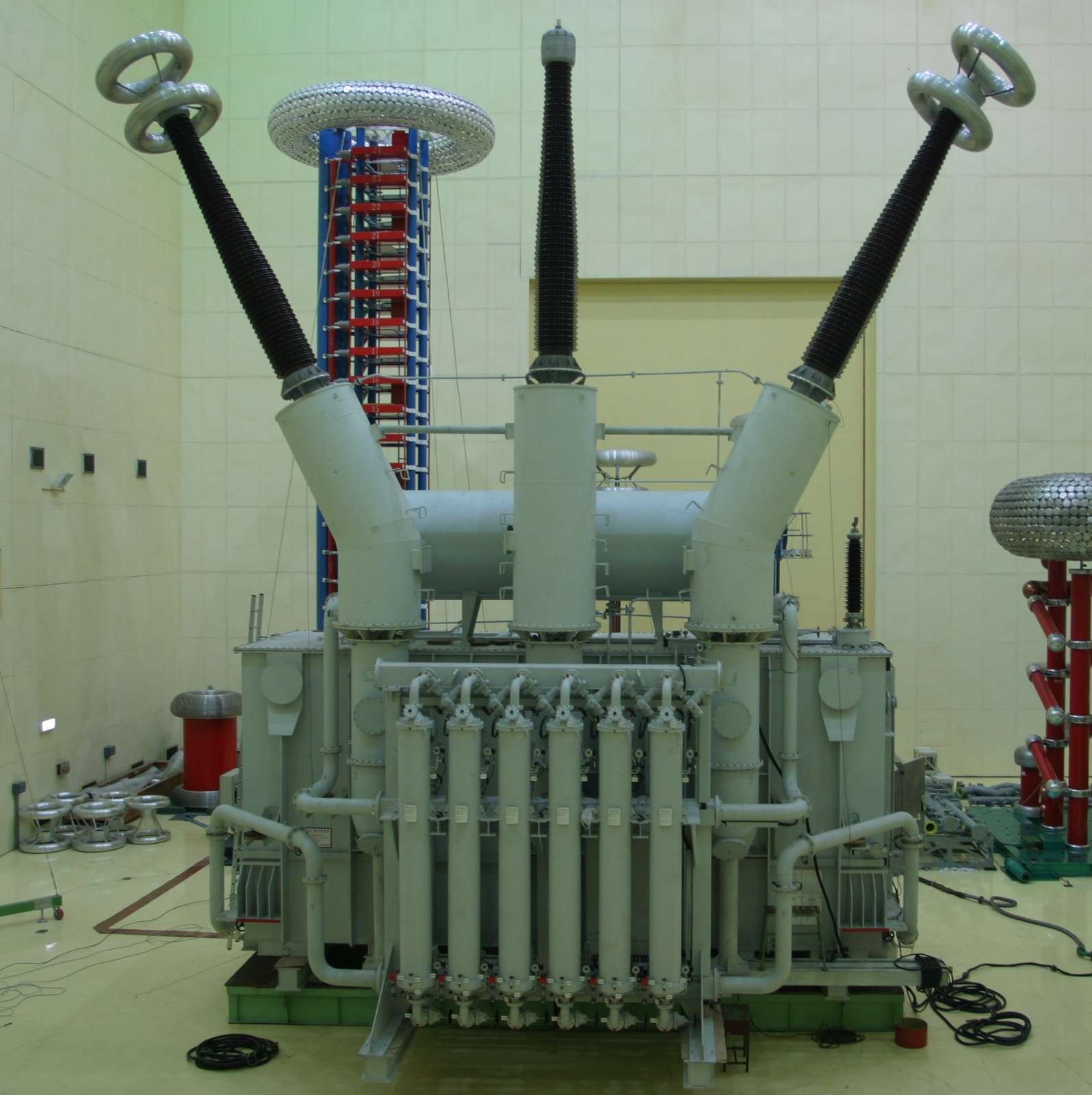

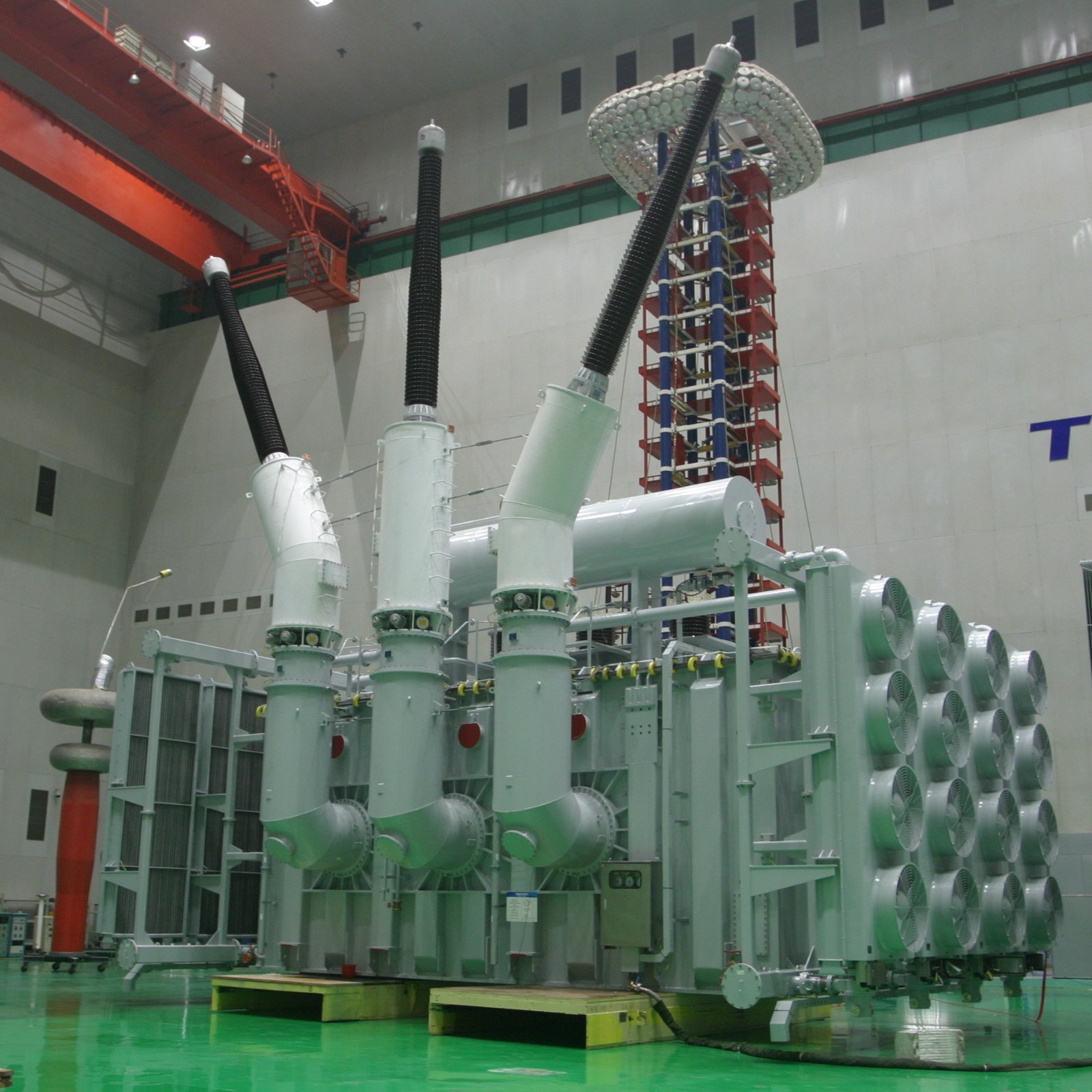

Three-Phase Generator Step-Up Transformer

This three-phase generator transformer is designed for large capacity and ultra-high voltage step-up in power plants. It can be configured with either an on-load tap changer or off-load tap changer.

Request a Quote Download PDFPDF

Three phase Generator Transformer - Image 1

Technical Specifications

Overview

High-Capacity Three-Phase Transformer

This three-phase generator step-up transformer is engineered for high-voltage power transmission in demanding industrial and grid-scale environments. It supports voltage classes up to 750kV and capacities reaching 1200MVA, ensuring reliable energy delivery. Built for durability and performance, the unit integrates advanced thermal management and robust structural design to meet rigorous operational requirements.

Technical Specifications

Voltage Class: 750 kV
Capacity: 1200 MVA

Logistics and Dimensions

Weight Metrics

449 ton

Single Unit Transport Weight

590 ton

Total Weight

Outline Dimensions: 16.5m x 11m x 11.8m
