Three-Phase AC Contactor for Low Voltage Systems
This AC contactor is designed for AC 50 Hz or 60 Hz systems with a rated insulation voltage of 690-1000V. It is used for remote connection and breaking of circuits, as well as frequent starting and control of AC motors.
Technical Specifications
Product Overview
Industrial AC Contactor

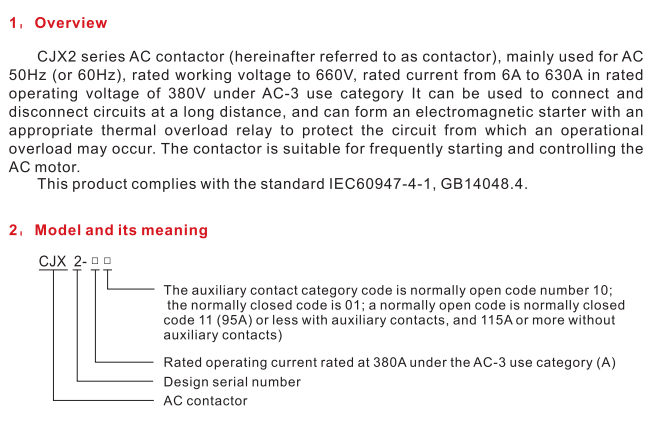

The CJX2 series AC contactor is designed for reliable remote connection and breaking of circuits in AC 50/60 Hz systems with rated insulation voltages up to 1000V. Optimized for frequent motor starting and industrial control, this high-performance component ensures robust operation in demanding environments. It fully complies with international IEC60947-4-1 and GB14048.4 safety standards for power distribution.
Technical Specifications
Mounting Options
- Screw Mounting
- TH35 DIN Rail
- TH75 DIN Rail
- Standards Compliance
- IEC60947-4-1GB14048.4
- Rated Insulation Voltage
- 1000 V
- Rated Operating Current
- 6A - 630A
Performance Metrics
Mechanical Life
300 Million Cycles
Mechanical Life
Operating Frequency
2,400 times/h
Mechanical Operating Frequency
Order Information
Service & Terms
| Term | Details |
|---|---|
| Payment | 30% deposit, 70% before shipment (TT) |
| Delivery Time | 15-20 days |
| Packaging | Protective carton |
