Technical Specifications
Product Overview
Precision Workholding Solution

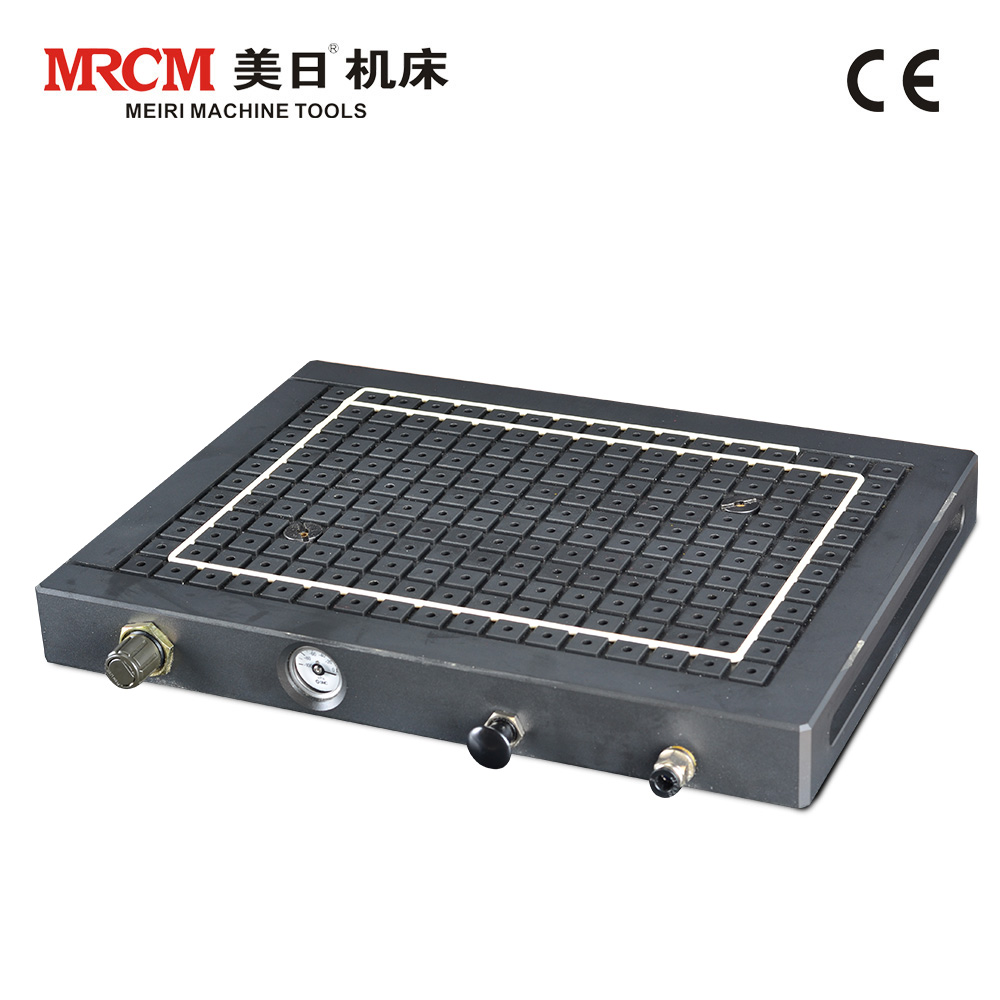

This surface grinder chuck utilizes a hybrid magnetic and pneumatic system to securely hold workpieces without the need for an external vacuum pump, relying instead on a standard air compressor. It offers strong magnetic attraction and automatic pressure maintenance, ensuring consistent holding force for 4 to 6 seconds even without active power. Designed for versatility, it effectively clamps both magnetic and non-magnetic materials, including plastic, stainless steel, copper, aluminum, and glass.
Technical Specifications
- Minimum Workpiece Size
- 60mm x 60mm
- Groove Size
- 16.2mm x 16.2mm
Model Comparison
Model Specifications
| Model | Dimensions (mm) | Weight (kg) |
|---|---|---|
| 3030 | 300 x 300 x 45 | 10 |
| 3040 | 300 x 400 x 45 | 14 |
| 4040 | 400 x 400 x 45 | 18 |
| 4060 | 400 x 600 x 45 | 28 |
Applications
Primary Applications
- Metal cutting processing
- Grinding machines
- CNC carving
- CNC milling machines
- Compatible Materials
- PlasticStainless SteelCopperAluminumAcrylicGlass
Certification
Certifications
CEISO 9001
