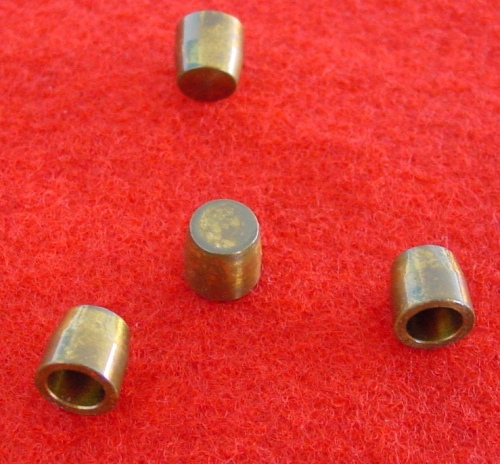

Drill Bushing

Sourcing precision drill bushings at scale requires strict attention to dimensional tolerances and metallurgical consistency. A batch of bushings with poor concentricity or inadequate hardness will quickly degrade jig accuracy, leading to tool wander and ruined production runs on the shop floor. When buying in bulk, securing a manufacturer capable of repeatable precision grinding and reliable heat treatment is non-negotiable.

Critical Specifications for Drill Bushings

The performance of a drill bushing relies entirely on its material hardness and dimensional accuracy. Standard bushings are typically machined from high-carbon chromium bearing steel (such as GCr15 or SUJ2), while high-wear applications demand tungsten carbide.

When specifying your order with a manufacturer, you must define the exact tolerance classes for both the inside diameter (ID) and outside diameter (OD).

Concentricity and Tolerances

The most critical metric is concentricity (Total Indicator Reading, or TIR). For standard precision bushings, TIR should be max 0.005mm to 0.012mm, depending on the size. The OD is typically ground to an m6 or n6 tolerance for a proper press fit into the jig plate, while the ID is often honed to an F7 or G7 tolerance to allow the drill to pass without binding or excessive play.

Manufacturing and Quality Control Checkpoints

Quality is won or lost during the heat treatment and final grinding phases. Improper heat treatment can leave the core too soft (leading to rapid wear) or too brittle (leading to cracking under heavy tool pressure). Furthermore, the internal honing process must achieve a mirror finish to reduce friction and heat buildup during drilling.

Implementing rigorous Quality Control & Inspection before shipment is essential.

Sourcing Mechanics: MOQ, Pricing, and Lead Times

The Asian supply chain for machine tool accessories is highly fragmented, ranging from premium precision grinding houses to lower-tier workshops. Conducting thorough Factory Audits is vital to ensure the supplier actually owns the necessary internal honing and cylindrical grinding equipment, rather than outsourcing to unverified sub-tier vendors.

Pricing is heavily dependent on the ID size, length, material, and required precision grade. Standard steel press-fit bushings are commodities, while renewable carbide-lined bushings command significant premiums.

Frequently Asked Questions

Securing a reliable supply of drill bushings means looking past the initial unit price and evaluating a factory's grinding capabilities and metallurgical consistency. Partnering with a professional sourcing team ensures your tooling components meet the exacting standards your end-users demand, batch after batch.
