Why is dynamic balancing necessary for machine tool flanges?

Unbalanced flanges create centrifugal forces at high rotational speeds, causing severe vibration. This vibration translates directly to the cutting tool, resulting in poor workpiece finish, accelerated tool wear, and premature failure of the machine's spindle bearings.

Can I use cast iron for a high-speed spindle flange?

Generally, no. Cast iron (like HT250) is excellent for vibration dampening in static or low-speed applications (like backing plates), but it lacks the tensile strength required for high-speed rotation. High-speed spindle flanges should be forged from steel alloys like 40Cr or 20CrMnTi.

How do I ensure the factory's runout measurements are accurate?

Do not rely solely on the factory's outgoing inspection report. Specify the testing methodology in your PO (e.g., measuring runout while mounted on a precision mandrel) and utilize third-party pre-shipment inspections to verify the measurements independently.

What surface treatments are standard for these flanges?

Black oxide (blackening) is the most common treatment to provide mild corrosion resistance without altering the precision dimensions. Critical mating surfaces and tapers are typically left bare and coated with anti-rust oil after grinding.

Flange

Source precision flanges from vetted manufacturers and suppliers in China and across Asia. Designed for industrial machinery importers, machine tool distributors, and OEM brands requiring high-volume production. Secure competitive bulk pricing and stringent quality control for your machine tool accessory supply chain.

Get a free consultation

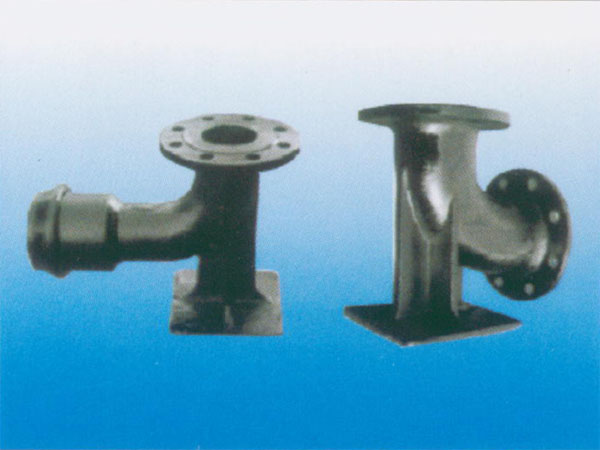

Flanged Ductile Iron Elbow with Square Base

These flanged ductile iron elbows feature a square base for stable 90-degree pipe connections. Their design ensures straightforward installation and facilitates easy maintenance.

View Details →

Sourcing machine tool flanges in bulk requires balancing tight precision tolerances with cost-effective manufacturing. Unlike standard pipe fittings, flanges used in machine tool accessories—such as spindle mounting, chuck adapters, and motor coupling—must handle high rotational speeds, heavy loads, and minimal runout. Securing a reliable supply chain means vetting factories not just for their machining capacity, but for their metallurgical integrity and dynamic balancing capabilities.

Critical Specifications for Machine Tool Flanges

When communicating with manufacturers, precision is everything. Ambiguous technical drawings lead to unacceptable vibration and premature bearing failure in the final machine tool assembly.

Key Specifications to Define in Your RFQ

Runout Tolerance: Specify radial and axial runout (often under 0.01mm or 0.005mm for high-speed applications).
Dynamic Balancing Grade: Define the required ISO 1940-1 grade (e.g., G2.5 or G6.3) at maximum operating RPM.
Concentricity and Perpendicularity: Critical for chuck and spindle adapter flanges to ensure accurate workpiece alignment.
Surface Hardness: Specify HRC requirements after quenching and tempering, typically between HRC 45 and 55 depending on the application.
Surface Finish (Ra): Define grinding requirements for mating surfaces to ensure maximum contact area and rigidity.

Material Selection and Application

The raw material dictates the flange's rigidity, vibration dampening, and lifespan. Most Chinese manufacturers will quote based on standard GB material designations.

Material Grade	Equivalent Standard	Primary Machine Tool Application	Characteristics
45# Steel	C45 / 1045	Standard chuck and motor flanges	Good machinability, economical, moderate strength.
40Cr	5140 / 41Cr4	High-stress spindle adapters	High tensile strength, excellent response to heat treatment.
HT250 / HT300	FC250 / FC300	Large mounting bases, backing plates	Superior vibration dampening, castable for complex geometries.

Verifying that a factory actually uses the requested alloy rather than a cheaper substitute is a common sourcing hurdle. Implementing rigorous Quality Control & Inspection protocols, including spectrometer testing, is essential before accepting a bulk production run.

Need to secure reliable production for high-precision machine tool accessories? Let our engineers vet capable manufacturers for your specific tolerance requirements.

Talk to our team

The Manufacturing Process: Where Quality is Won or Lost

Understanding the factory floor process helps you identify where defects originate. A standard CNC shop cannot produce high-grade machine tool flanges without specialized grinding and balancing equipment.

Blank Preparation (Forging or Casting)

Raw material is forged or cast into a near-net shape. Forging is preferred for high-speed flanges to align the grain structure and eliminate internal porosity.

Rough Machining & Heat Treatment

The blank is turned to rough dimensions, then subjected to quenching and tempering to relieve internal stresses and achieve the target core hardness.

Precision CNC Turning & Milling

Bolt circles are drilled and tapped. The central bore and outer diameters are machined close to final tolerances.

Precision Grinding

The most critical step. Mating faces and locating tapers are ground to achieve the final runout and surface finish (Ra) specs.

Dynamic Balancing

The finished flange is spun on a balancing machine. Material is removed (usually via shallow drilling) to achieve the specified balance grade, preventing vibration at high RPMs.

Assessing Factory Capability

Many suppliers outsource grinding and balancing to third-party workshops, which introduces quality risks and delays. When conducting Factory Audits, always verify the presence and calibration of in-house dynamic balancing machines and Coordinate Measuring Machines (CMM) to ensure the supplier controls the final, most critical stages of production.

Buying Mechanics: MOQ, Lead Times, and Pricing

Machine tool flanges are rarely bought "off the shelf" in B2B volumes. They are typically manufactured to order based on the buyer's drawings.

Minimum Order Quantities (MOQ): For custom CNC-machined flanges, MOQs typically range from 100 to 500 pieces per size, depending on the setup time and raw material minimums. Cast flanges (like HT250) usually require higher MOQs (500 to 1,000+ pieces) to justify the tooling and mold costs.
Lead Times: Tooling and initial sample production usually takes 15 to 25 days. Once samples are approved, bulk production requires an additional 30 to 45 days.
Pricing Drivers: The primary cost drivers are the raw material (forged alloy steel vs. cast iron), the required runout tolerance (tighter tolerances require significantly more grinding time), and the dynamic balancing grade.

If you are developing proprietary machine tool components, leveraging professional OEM/ODM Services ensures your intellectual property is protected while your custom bolt patterns and tapers are manufactured exactly to spec.

Struggling with inconsistent runout or long lead times from your current supplier? We can help you transition to vetted, high-performance manufacturers.

Get a free consultation

Frequently Asked Questions

Sourcing high-precision flanges requires looking past the initial unit price and evaluating the manufacturer's internal quality systems and finishing equipment. A cheaper flange that causes spindle vibration will cost exponentially more in machine downtime and warranty claims. Partnering with a sourcing team that understands machining tolerances and metallurgical requirements ensures your supply chain delivers consistency, order after order.
