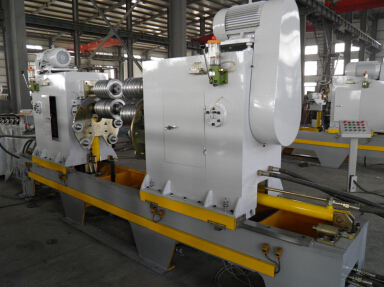

Steel Drum Production Line

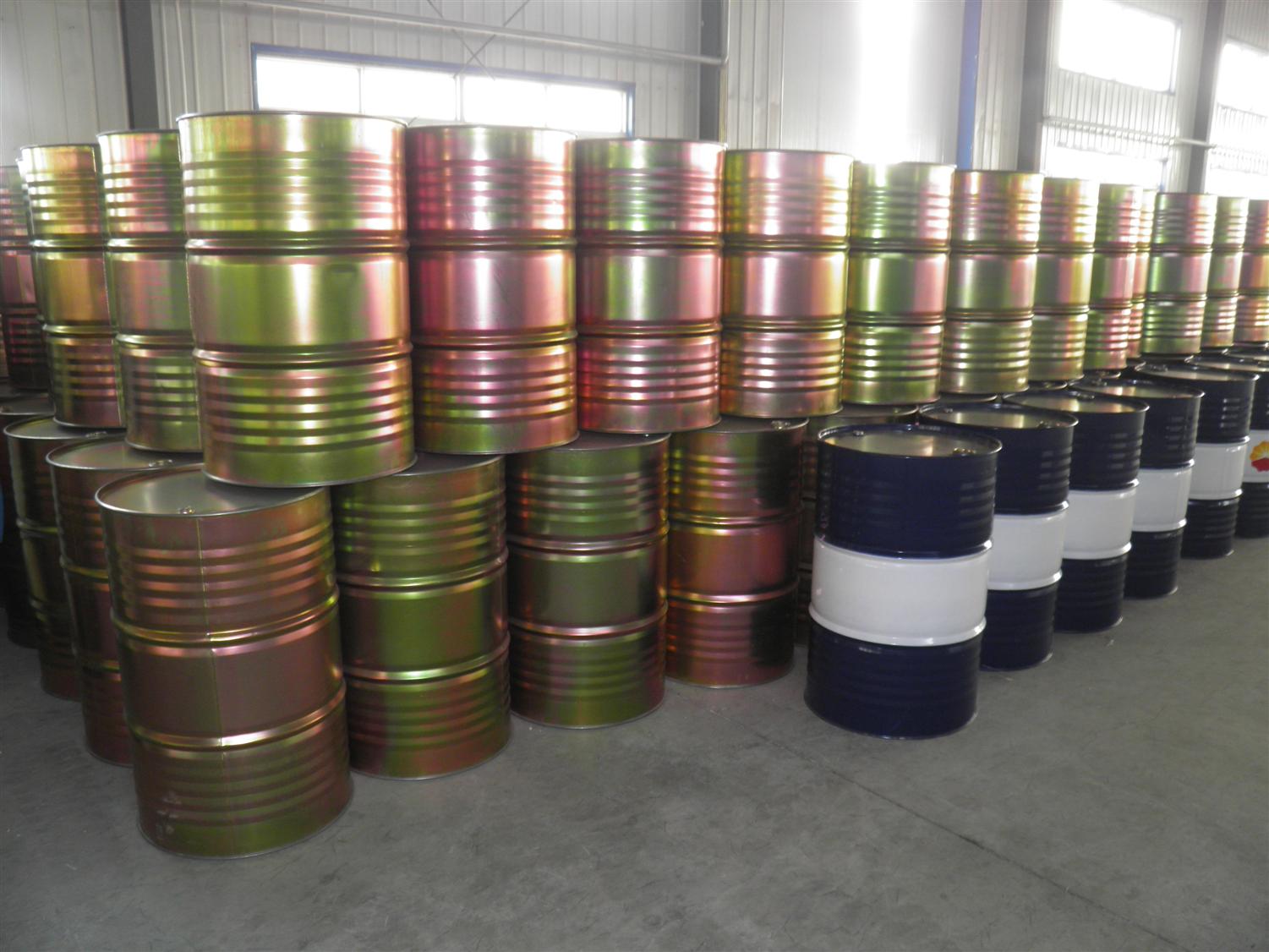

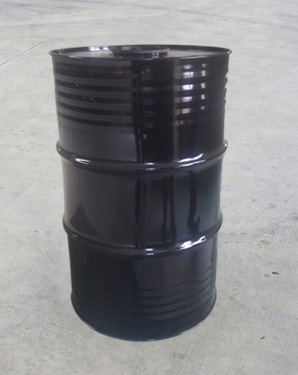

This steel drum production line is engineered for manufacturing closed, open, conical, and bituminous drums. It is capable of producing 100-220L drums and is suitable for use in oil, chemical, food, and beverage industries.
Technical Specifications
Overview
Industrial Steel Drum Production Solutions

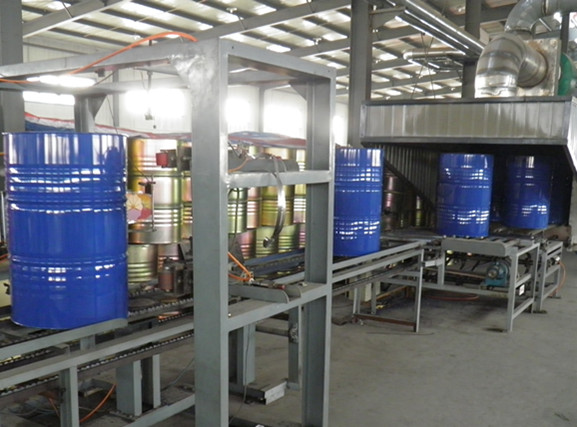

This automated production line is designed for high-efficiency manufacturing of standard 100-220L steel drums. Offering scalable throughput from 1 to 8 pieces per minute, the system is suitable for diverse industrial requirements including closed, open, conical, and bituminous drum formats. It provides a robust, professional-grade solution for industries ranging from chemical and petroleum to food and beverage processing.
Performance
Throughput and Capacity
220 L
Max Drum Capacity
18 micron
Max Paint Thickness
- Production Speed Options
- Low Speed: 1-2 pcs/minMedium Speed: 5-6 pcs/minHigh Speed: 7-8 pcs/min
Technical Specifications

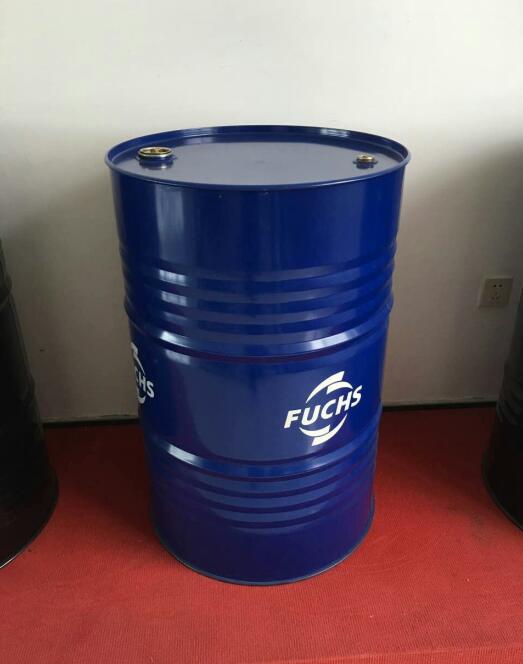

Standard Drum Dimensions
| Metric | Value |
|---|---|
| Inner Diameter | 571.5 mm |
| Outside Diameter | 585 mm |
| Height | 897 mm |
Material and Construction
- Applied Sheet: SPCC steel plate or cold-rolled sheet
- Material Thickness: 0.8-1.2 mm
- Closures: 2 standard closures
- Top Hole Configuration: One 3/4 inch + one 2 inch
- Corrugations: 6-10
- Finish: Nitro bake paint
Global Reach
Regulatory Standards
ISO 9001:2008CE CertifiedMachinery Directive 2006/42/ECUtility Model Patent
