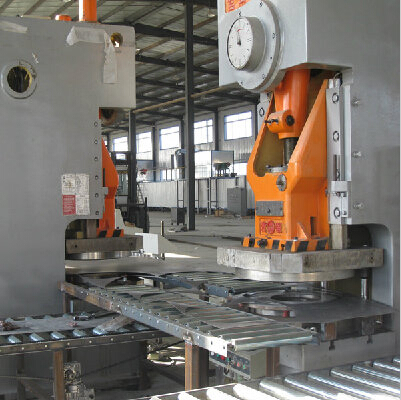

200L Steel Drum Production Line
This steel drum production line is engineered to produce 100-220L drums, including closed, open, conical, and bituminous types. It is widely used in oil, chemical, food, and beverage industries.
Technical Specifications
Overview
Versatile Steel Drum Manufacturing Solutions
This production line is designed for the high-efficiency manufacturing of 100-220L steel drums, including closed, open, conical, and bituminous types. It offers scalable output options ranging from low-speed (1-2 pcs/min) to high-speed (7-8 pcs/min) configurations to meet various industrial demands. These drums are widely utilized across the oil, chemical, food, and beverage industries for reliable storage and transport.
Production Capacity
Available Production Speeds
- Low speed: 1~2 pcs/min
- Medium speed: 5~6 pcs/min
- High speed: 7~8 pcs/min
Drum Specifications

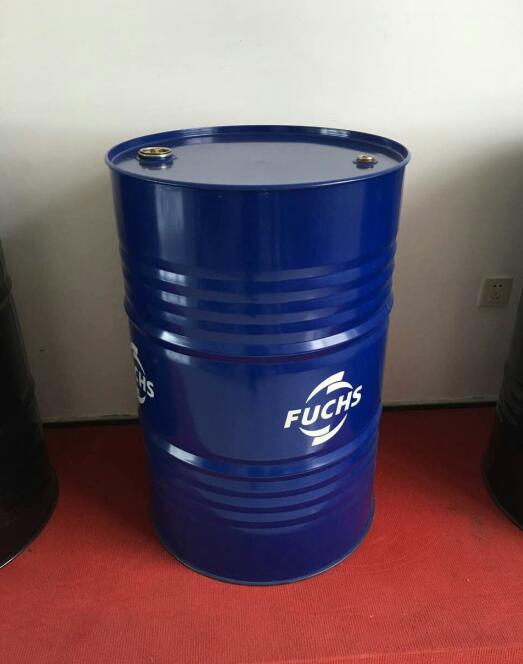

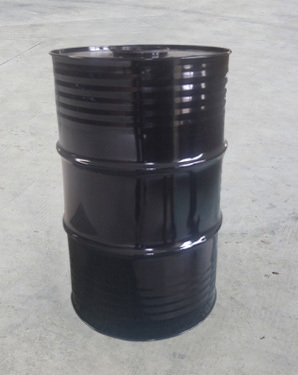

Standard 216.5L Drum Dimensions
216.5 L
Capacity
571.5 mm
Inner Diameter
897 mm
Height
Material & Construction
| Feature | Specification |
|---|---|
| Applied Sheet | SPCC steel plate or cold-rolled sheet |
| Material Thickness | 0.8 - 1.2 mm |
| Weight | 16 - 18 kg |
| Corrugations | 6 - 10 |

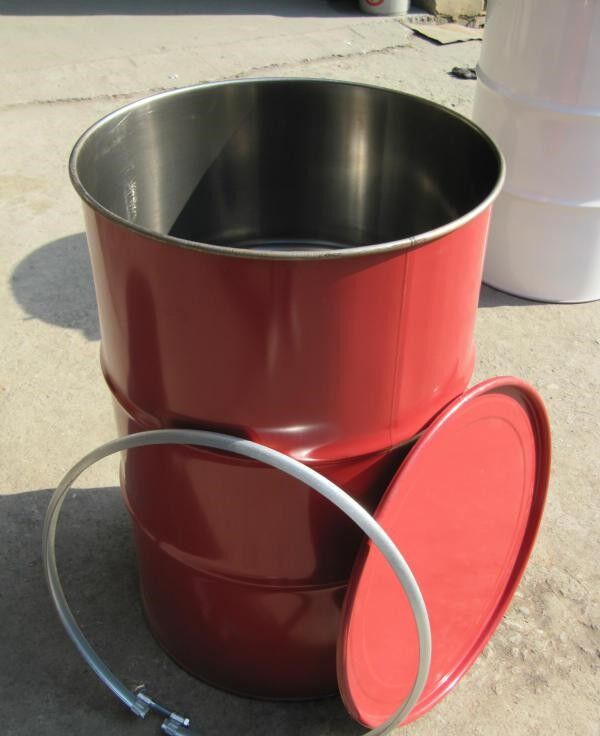

| Closures | 2 closures (3/4 Inch + 2 Inch holes) |
Finishing & Coating
Surface Treatment
| Parameter | Value |
|---|---|
| Outside Painting | Nitro bake paint |
| Paint Thickness | Minimum 18 micron |

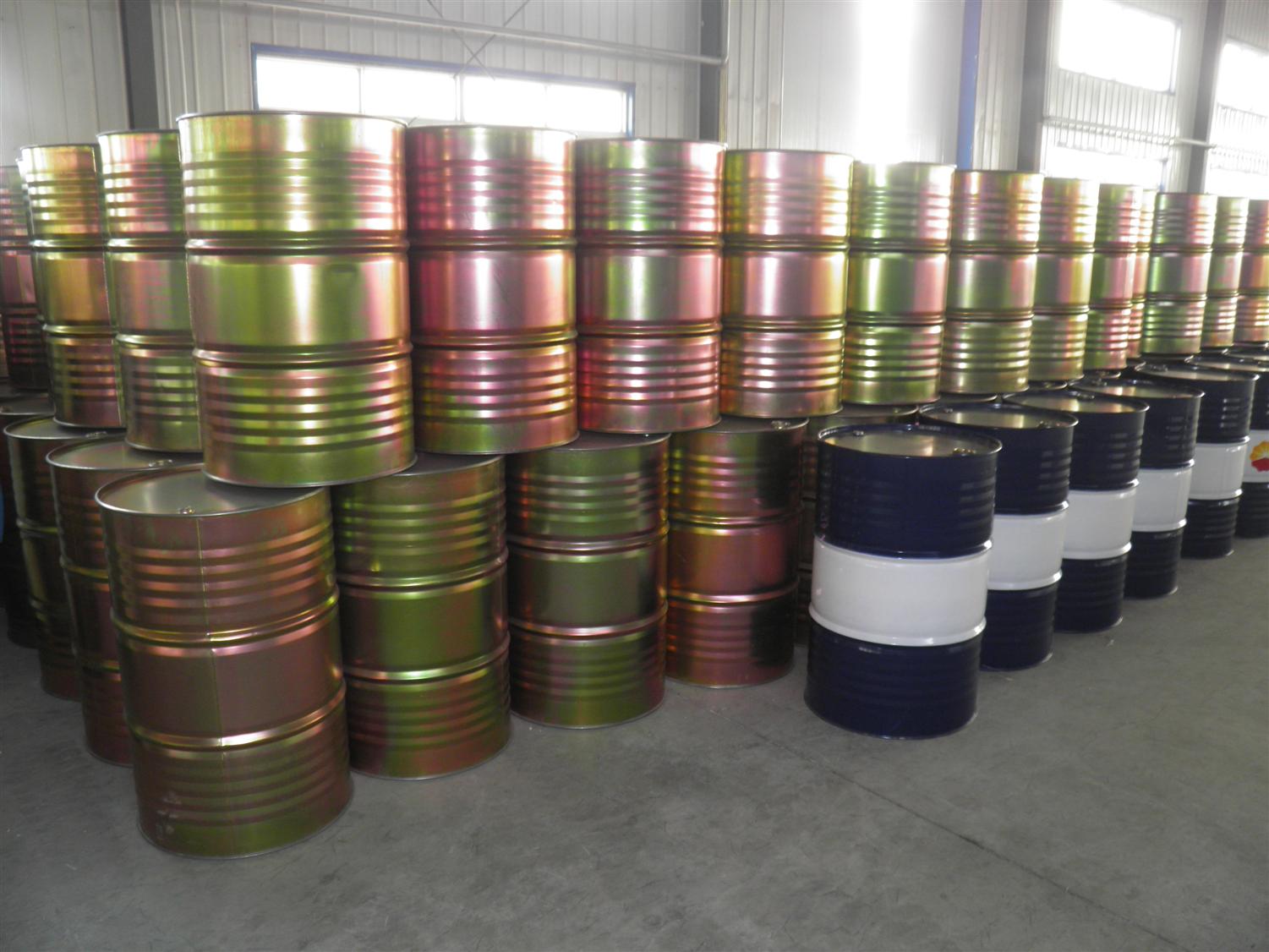

| Body Color | One color or multicolor |
Material Consumption
Material Efficiency Ratios
| Plate Thickness (mm) | Finished Drums (pcs/T) | Unit Weight (kg/pc) |
|---|---|---|
| 1.2 | 41 | 21.5 |
| 1 | 50 | 18 |
Compliance & Quality
- Quality Standards
- ISO 9001:2008CE CertifiedMachinery Directive 2006/42/ECUtility Model Patent
