Technical Specifications
Overview

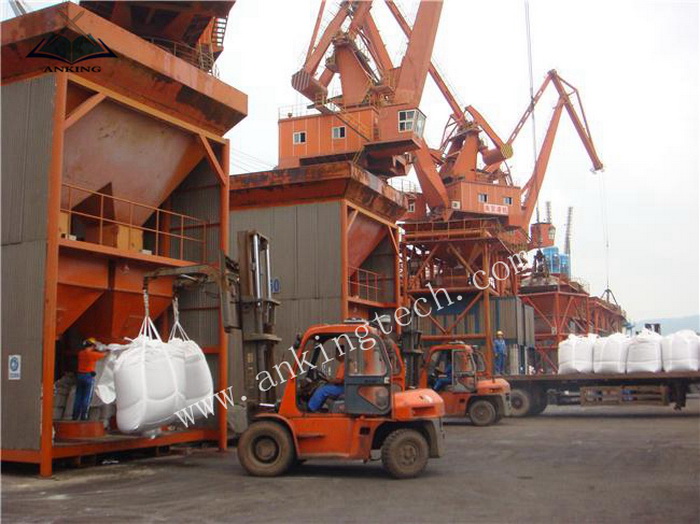

Stationary Automatic Weighing and Bagging Plant
The ANKING-50/100IV series is a high-performance stationary system designed for the precise weighing and bagging of solid granular bulk materials like fertilizer and grain. Built on a robust steel framework with integrated operator platforms, it features a duplex weighing scale design that allows for simultaneous, independent feeding and weighing to maximize operational throughput. This machine is engineered for continuous, heavy-duty industrial use in workshops and warehouses.
Performance Metrics
Core Capacity & Accuracy
16 Bags/min
Max Capacity
0.1 %
Static Accuracy
0.2 %
Dynamic Accuracy
Material Specifications
Handling Capabilities
| Property | Specification |
|---|---|
| Suitable Materials | Fertilizer, Grain, Granular Cargo |
| Bulk Density | 0.75 - 1.2 Ton/m3 |
| Granular Size | 1 - 15 mm |
Technical Details
Electrical Requirements
- Power Supply: 3Ph, 400V, 50Hz
- Control Voltage: 1Ph, 110V, 50Hz
- Environment & Pneumatics
- Air Pressure 0.6MpaIndoor Operation0-50°C Ambient Temp
Bagging Configuration
Compatible Bag Types
- Capacity: 15-100kg adjustable
- Type: Open mouth bag (PP woven with PE inner)
- Dimensions: 900Lx630Wmm to 1100Lx700Wmm
