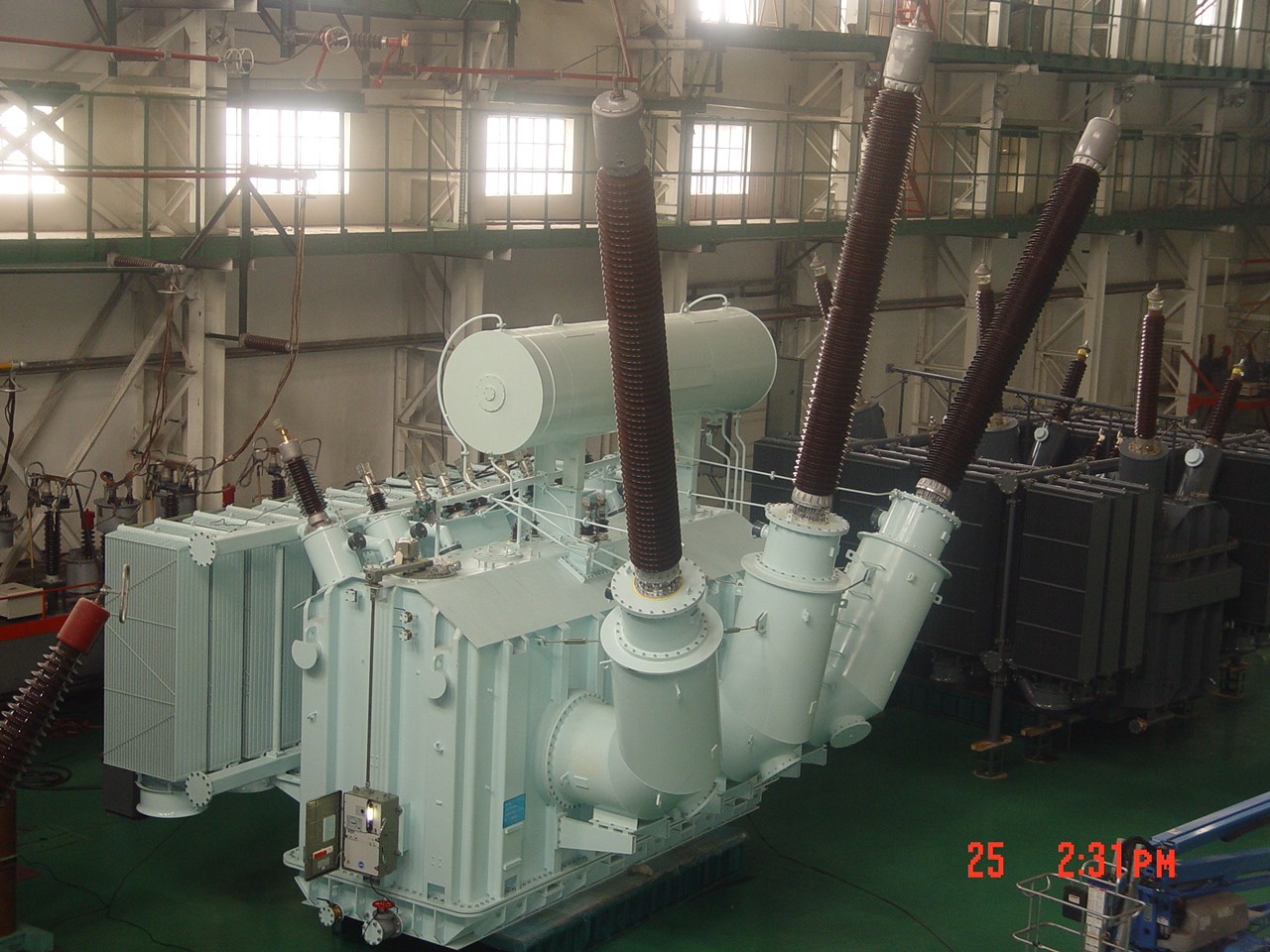

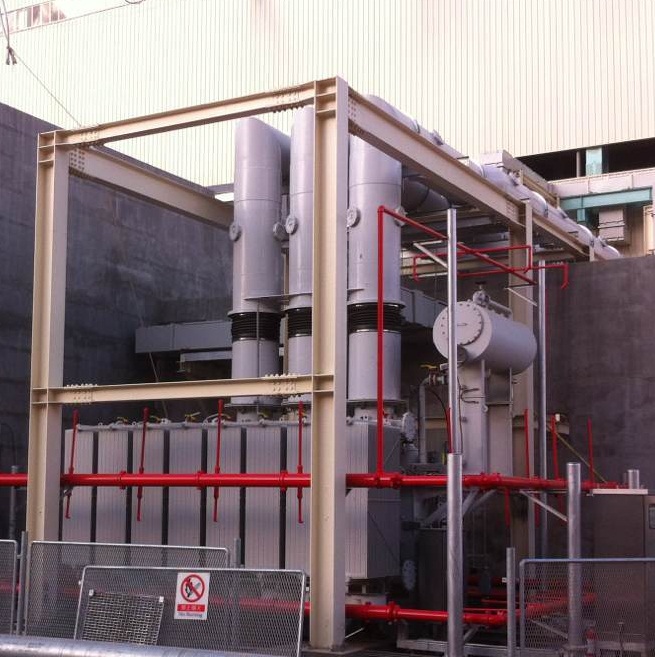

Station Starting Transformer
Typically, two generators will share one transformer in a power plant or electric generating set. This transformer is designed for station and starting applications.
Technical Specifications
Product Overview
High-Capacity Station and Starting Transformer
This station and starting transformer is engineered for demanding industrial power generation and transmission applications. It delivers robust performance with a voltage class reaching 500kV and a capacity of up to 100MVA. Designed for reliability in harsh environments, it features sophisticated cooling systems and structural reinforcements to ensure long-term operational efficiency.
Technical Specifications
Key Performance Metrics
500 kV
Max Voltage
100 MVA
Max Capacity
- Voltage Class
- 500 kV
- Power Capacity
- 100 MVA
Logistics and Physical Dimensions
- Single Unit Transport Weight
- 104 ton
- Maximum Total Weight
- 199 ton
- Outline Dimensions
- 7.71m x 8.166m x 11.26m
