Spunbond Nonwoven Fabric Production Line
This production line is designed for manufacturing S/SS/SMS PP spunbond non-woven fabrics. The system integrates raw material feeding, melting, extrusion, fiber formation, web laying, thermal bonding, winding, and slitting processes.
Technical Specifications
Product Overview
High-Efficiency Spunbond Production Line

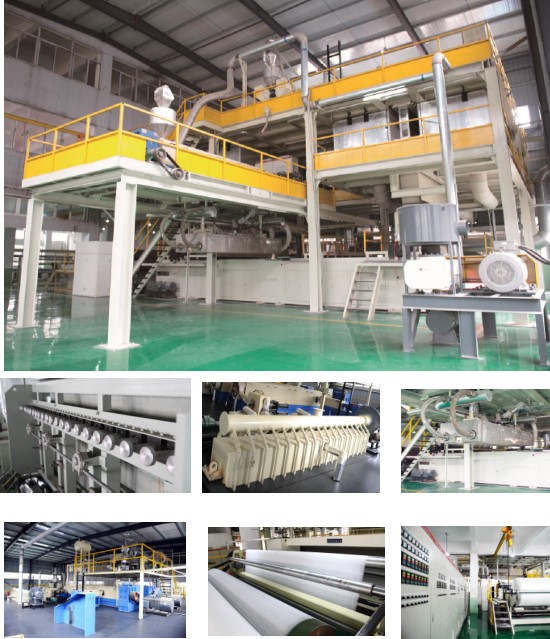

This advanced production line is engineered for the continuous manufacturing of S/SS/SMS PP spunbond non-woven fabrics. The integrated system handles the entire process from raw material melting and extrusion to fiber formation, web laying, thermal bonding, and final winding. Designed for versatility, it supports multiple product widths and delivers uniform fabric with high tensile strength and excellent air permeability, suitable for medical, hygiene, and agricultural applications.
Technical Specifications
Performance Metrics
150 mm
Max Winding Diameter
150 m/min
Max Production Rate
150 g/㎡
Max Product Weight
- Available Widths
- 1600mm2400mm3200mm
- Input Material
- Polypropylene (PP) Chip
- Denier per Filament
- 1.8 - 2.5
Workshop Requirements
Facility Requirements
| Section | Dimensions (L x W x H) |
|---|---|
| Total Equipment Area | 35m x 12m |
| Spinning Part | 20m x 12m x 11m |
| Hot Rolling Unit | 15m x 8m x 6m |
- Floor Foundation
- Reinforced concrete structure, 25cm thickness
Process Flow
Manufacturing Process
- Recycling raw material & side material
- Melting and extruding
- Filtering and measuring
- Spinning and cooling
- Air dragging and dispersing
- Air-laid web forming
- Thermal bonding
- Winding and slitting
- Packing and warehousing
