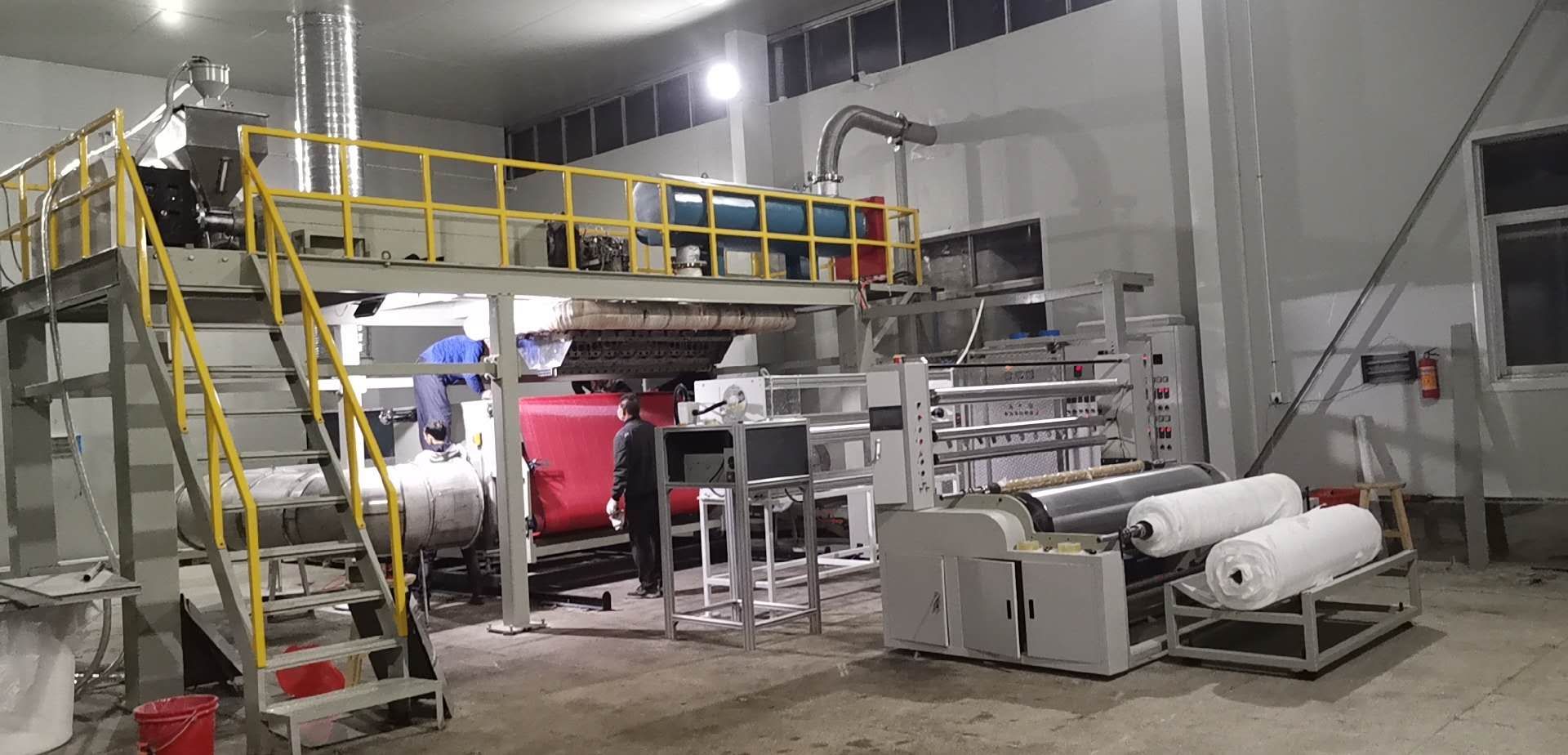

PP Melt-Blown Fabric Extrusion Line
This extrusion line is designed for the production of PP melt-blown nonwoven fabrics. The system ensures consistent fabric quality and performance through precise control of melt temperature, air velocity, and web tension.
Technical Specifications
Overview
High-Efficiency Melt-Blown Extrusion
This 1600mm PP melt-blown extrusion line is designed for high-performance production of non-woven filter media. Engineered for precision, it reliably produces KN90-99 level fabrics with consistent fiber fineness and structural integrity. The system offers a streamlined workflow from raw material intake to final winding, ensuring industrial-grade output for medical and hygiene applications.
Performance Metrics
Daily Extrusion Capacity
1,600 kg/day
Max Daily Capacity
- Operational Speed
- 60 m/min
Technical Specifications
- Finished Fabric Width
- 1600 mm
- Fiber Fineness
- 2-5 micron
- Fabric Basis Weight
- 20-80 g/㎡
- Suitable Material
- PP Melt Blow GradeMFI 1200-1800 g/min
Electrical and Dimensions
Power Requirements
| Metric | Value |
|---|---|
| Total Power | ~600 kW |
| Working Power | ~350 kW |
| Supply | 380V/3P/50Hz |
- Machine Dimensions
- 13500 x 5500 x 4000 mm
Included Components
Included Equipment
- Spinneret plate
- Mould
- N95 Electret system
