SMS Nonwoven Fabric Production Line (1600-3200mm)
This SMS nonwoven fabric production line is designed for creating high-quality, multi-layer nonwoven fabrics. It integrates spunbond and meltblown technologies to produce materials suitable for medical, hygiene, and industrial applications.
Technical Specifications
Overview
High-Performance SMS Nonwoven Production
The AF series SMS production line is a highly automated solution designed for the efficient manufacturing of Spunbond-Meltblown-Spunbond composite fabrics. Available in widths of 1600mm, 2400mm, and 3200mm, this system integrates advanced extrusion and bonding technologies to produce multi-layered materials with superior barrier properties and strength. It is an ideal choice for B2B buyers requiring consistent, high-throughput production for medical, hygiene, and industrial textiles.
Key Performance Metrics
Key Capabilities
3,200 mm
Max Effective Width
3,300 T
Max Annual Output
200 gsm
Max Fabric Weight
Technical Specifications
Model Performance Comparison
| Type | Width (mm) | GSM Range | Annual Output |
|---|---|---|---|
| S | 1,600 | 8-200 | 1500T |
| S | 2,400 | 8-200 | 2400T |
| S | 3,200 | 8-200 | 3000T |
| SS | 1,600 | 10-200 | 2500T |
| SS | 2,400 | 10-200 | 3300T |
- Raw Material
- PP chips (Polypropylene)
- Available Embossing Patterns
- DiamondOvalCrossLine
System Features
Automation Level
Highly AutomatedPLC ControlledTouch-Screen Operation
Core Advantages
- Well-structured design for easy operation
- High-performance control elements from reliable technologies
- Customizable main frame and auxiliary equipment configurations
- Integrated edge material recycling system
- Energy-efficient high-throughput design
Production Process
Operational Workflow
- Raw Material & Edge Recycling
- Extrusion & Filtration
- Metering Pump & Spinning Box
- Cooling Air Drawing (Up & Down Stretching)
- Web Formation
- Calendaring (Bonding)

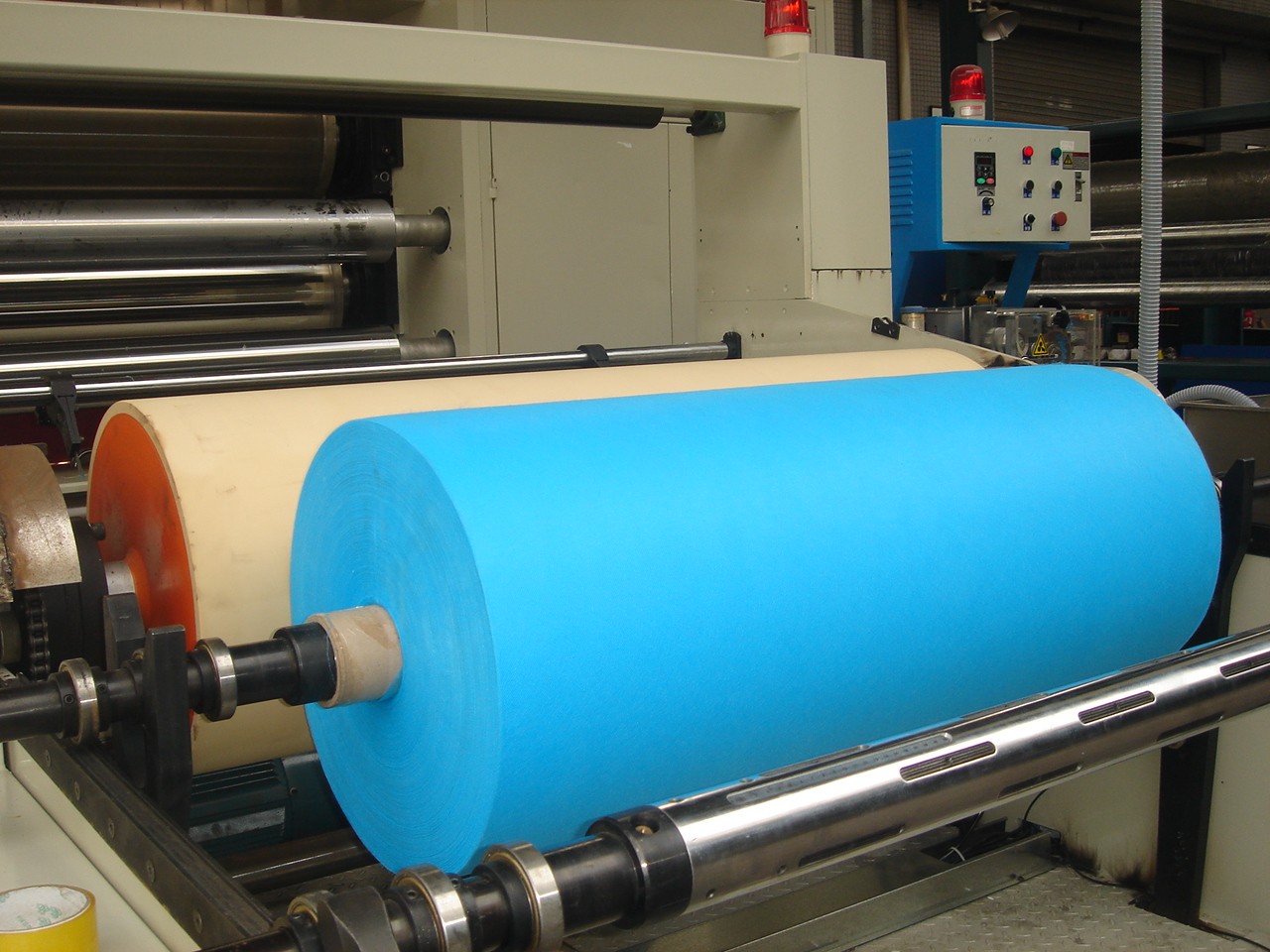

- Winding & Slitting
Application Fields
- Medical & Health
- Operation suitsPatient suitsRespiratorsSanitary napkinsBaby diapers
- Industrial & Travel
- Protective clothingCar coversDust coversFilter materialsShopping bags
