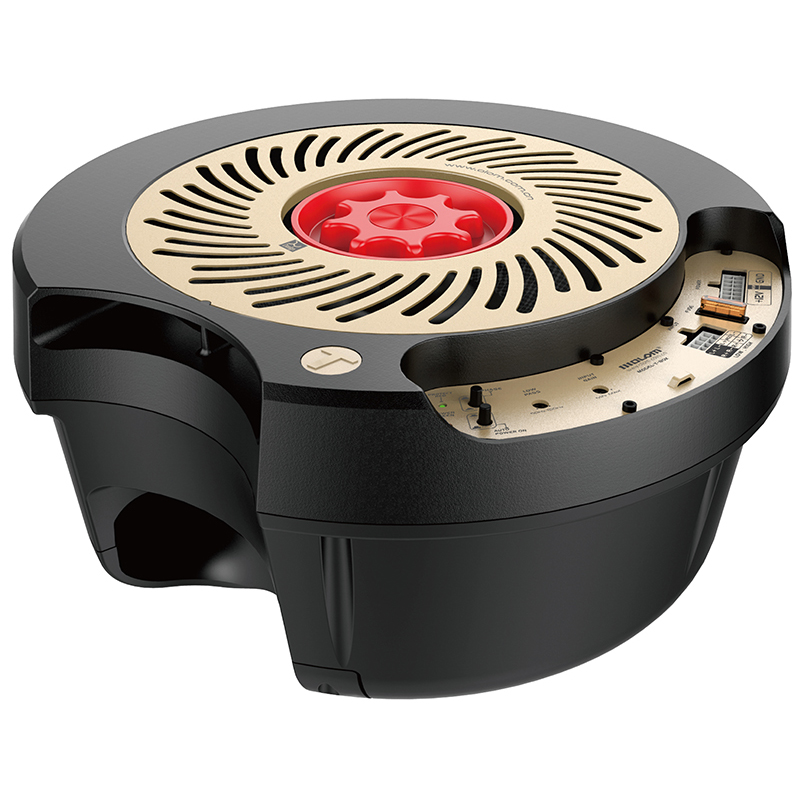

Spare Tire Vehicle Subwoofer
This high-performance subwoofer fits within a vehicle's spare tire compartment. It delivers enhanced bass response while maximizing space efficiency, and includes connectors for easy installation.
Technical Specifications
Product Overview
Compact In-Vehicle Subwoofer
This high-performance spare tire subwoofer offers a space-efficient solution for vehicle audio upgrades. Engineered with a die-cast aluminum alloy enclosure and an integrated power amplifier, it delivers powerful, deep bass without requiring traditional bulky housing. It is designed for versatile integration with adjustable phase, frequency, and input gain settings to suit various vehicle audio systems.
Performance Metrics
Key Audio Metrics
350 W
Undistorted Power
600 W
Maximum Power
86 db
Sensitivity
2 Ω
Impedance
Audio Tuning Settings
- Frequency Response: 20Hz-150Hz
- Low Pass Filter: 50Hz-150Hz
- Volume Adjustment: 0dB to +12dB
- Phase Adjustment: 0 to 180 degrees
Technical Specifications
Woofer Construction
- Driver Diameter: 250mm (10 inch)
- Magnet Material: Ferrite (Y30)
- Cone Material: Wave Fiber + Paper
- Surround: Rubber edge
- Voice Coil Diameter: 50mm
Electrical & Input
| Parameter | Value |
|---|---|
| Supply Voltage | 14.4 VDC |
| SNR | 85 dB |
| THD | 0.08% |
| Fuse Rating | 25A |
Physical Attributes
- Dimensions & Build
- Die-cast aluminum alloy360x360x169mmInverting secondary radiation box
