Spare Tire Subwoofer for Vehicle Audio Systems

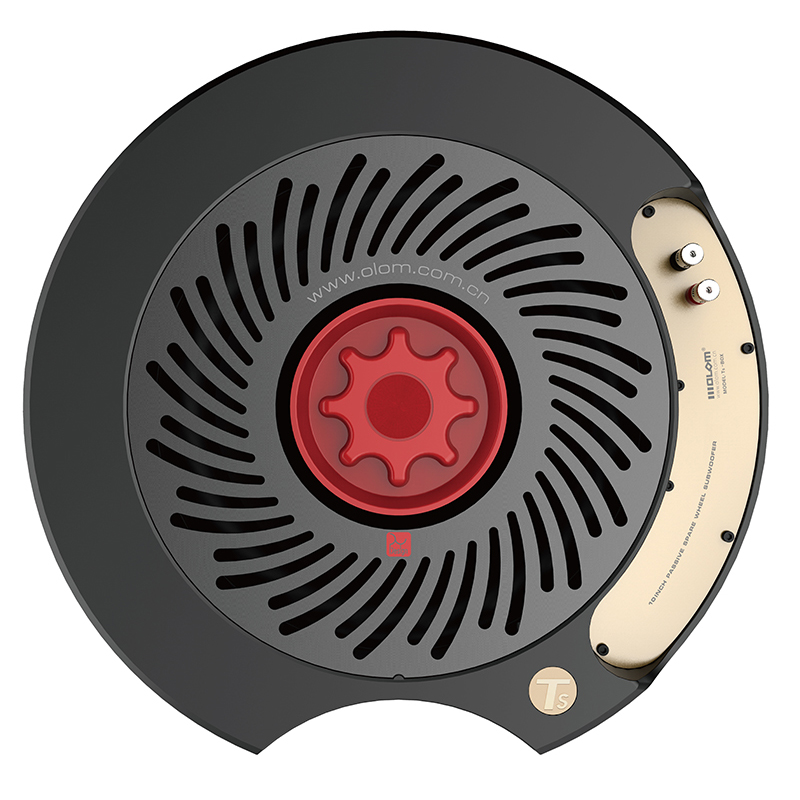

This subwoofer fits within the spare tire compartment of a vehicle. It features a circular design with radiating vents, delivering enhanced bass performance while saving cargo space.
Technical Specifications
Product Overview
Compact High-Performance Bass Solution
This spare tire subwoofer is engineered to provide professional-grade bass enhancement without consuming valuable vehicle cargo space. Featuring a robust die-cast aluminum alloy enclosure and a 10-inch driver, it integrates seamlessly into the spare tire well of most vehicles. With a built-in power amplifier and versatile input sensitivity settings, it offers a powerful and clean audio experience for high-end vehicle sound systems.
Key Performance Metrics
Performance Metrics
350 W
Undistorted Power
600 W
Maximum Power
86 db
Sensitivity
0.08 %
THD
Technical Specifications
Woofer Details
| Component | Specification |
|---|---|
| Size | 250mm (10") |
| Magnet Material | Ferrite (Y30) |
| Cone Construction | Wave Fiber + Paper + Rubber edge |
| Voice Coil | 50 mm |
Electrical & Connectivity
- Impedance: 2Ω
- High-level input sensitivity: 500mV-10V
- Low-level input sensitivity: 150mV-3.5V
- Input impedance: 10K
- SNR: 85dB
- Fuse: 25A x 1
Physical & Adjustment
Physical Specs & Control
- Dimensions: 360 x 360 x 169mm
- Enclosure Material: Die-cast aluminum alloy
- Phase Adjustment: 0-180°
- Low Pass Filter: 50Hz-150Hz
- Bass Boost: 0dB to +12dB
- Product Features
- Inverting secondary radiation boxBuilt-in power amplifierSpace-saving designHigh-output bass
