Single/Dual-Axis Welding Positioner
This single or dual-axis positioner ensures welding joints rotate to the best position. It avoids vertical and over-head position welding, improving welding quality and production efficiency.
Technical Specifications
Overview

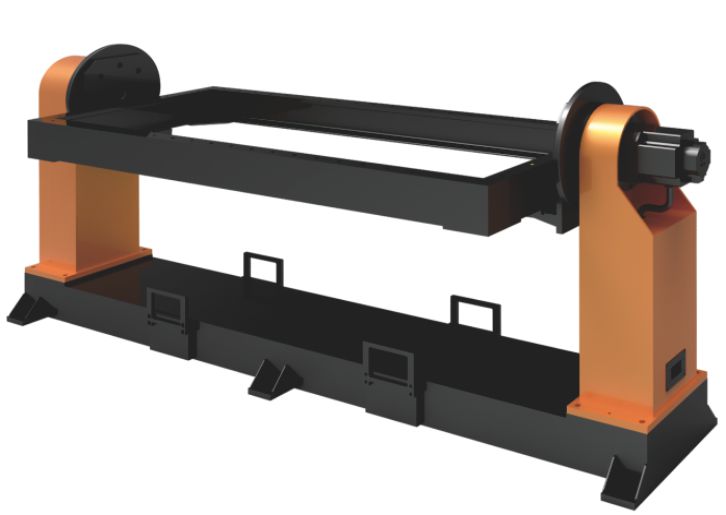

Precision Welding Positioning
This single and dual-axis welding positioner is designed to optimize welding workflows by rotating workpieces to the ideal angle, eliminating the need for vertical or overhead welding. By integrating seamlessly with robotic control systems, it automatically manages welding parameters such as voltage and current while verifying arc striking success. This precision-engineered unit enhances both weld quality and production efficiency, making it an essential tool for automated manufacturing lines.
Key Features
- Operational Capabilities
- AC Servo DriveAutomated Load/UnloadRobotic IntegrationVariable Speed ControlPrecision Positioning
Technical Specifications

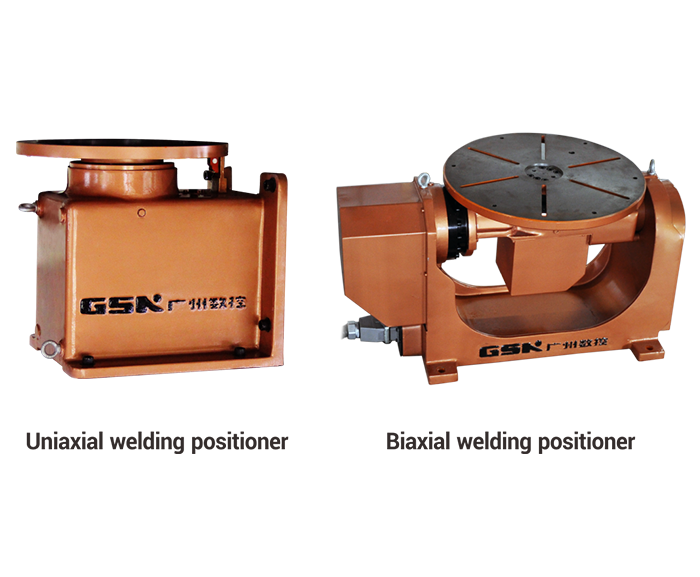

Model Comparison

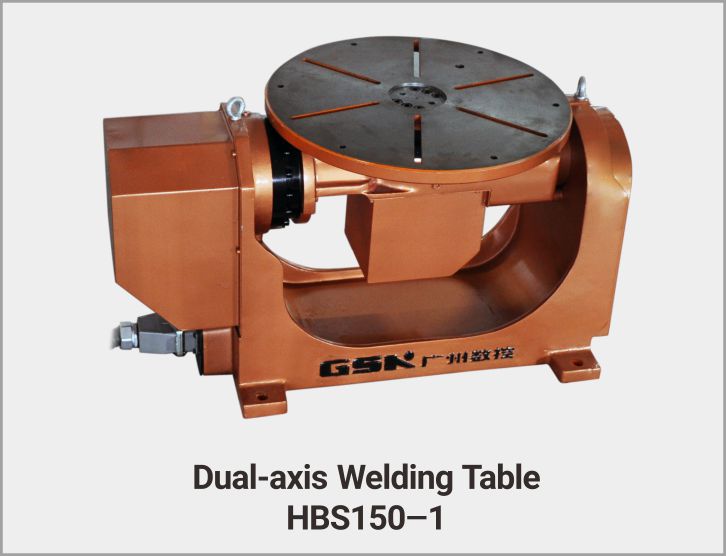

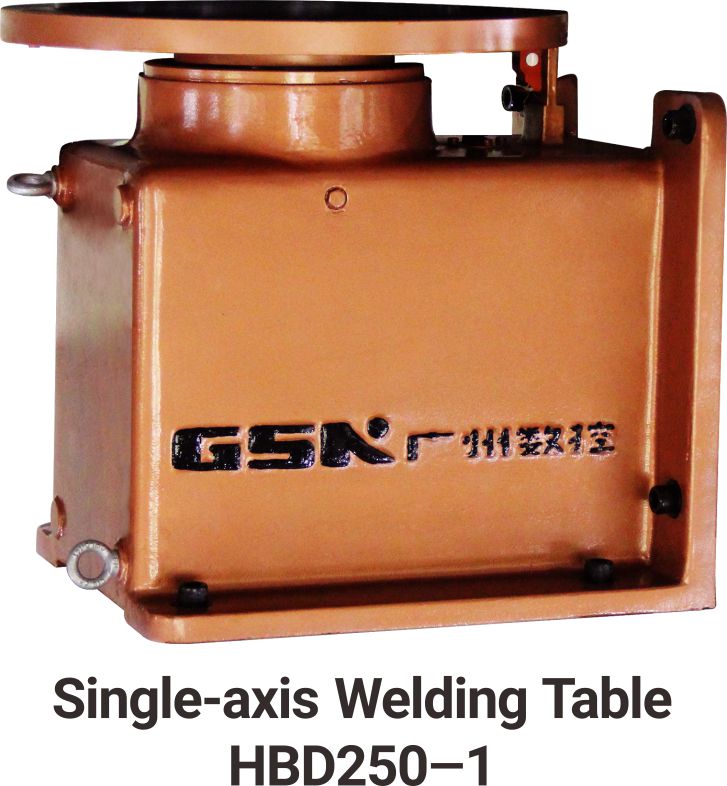

| Feature | HBS150-1 | HBD250-1 |
|---|---|---|
| Rated Loading (kg) | 500 | 1000 |
| Rated Torque (N-m) | 700 | 1000 |
| Max Loading (kg) | 200 | 300 |
| Repeated Positioning Accuracy (mm) | ±0.15 | ±0.10 |
Performance Metrics
15 R/Min
Rated Revolving Rate
700 mm
Standard Revolving Radius
360 °
Max Revolving Angle
Dimensions and Construction
Physical Dimensions
- Spindle Revolving Disk Diameter: φ400mm
- Revolving Shaft Center Height: 900mm
- HBS150-1 Appearance Dimensions: 2750 x 520 x 1100mm
- HBD250-1 Appearance Dimensions: 3250 x 550 x 1100mm
