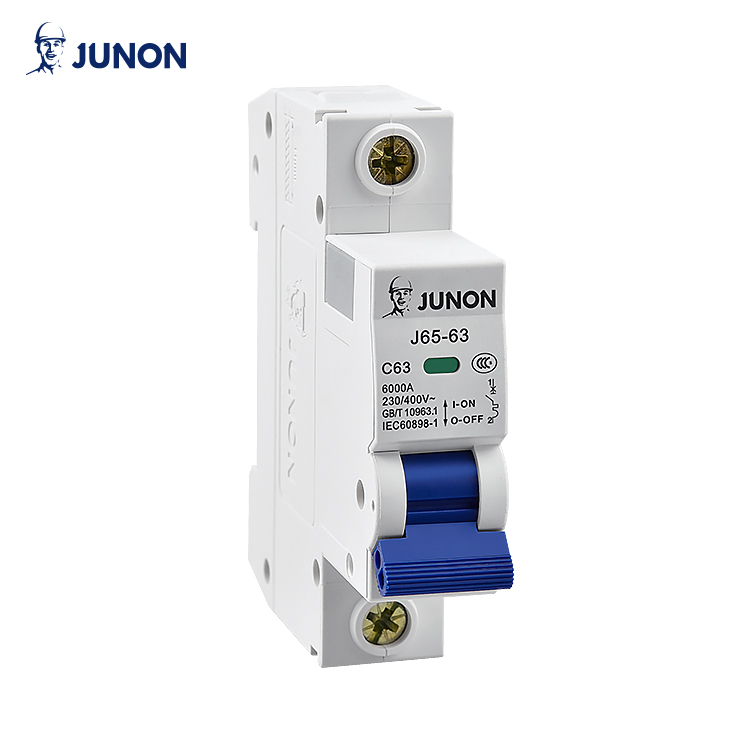

Single Pole Miniature Circuit Breaker 6A to 63A
This miniature circuit breaker is a single-pole device used for circuit protection in various applications. It offers both overload and short-circuit protection with a 6000A breaking capacity.
Technical Specifications
Overview
J65 Series Miniature Circuit Breaker
The J65 series miniature circuit breaker provides reliable protection for low-voltage electrical networks, serving as an efficient and safer alternative to traditional fuses. Designed to automatically switch off during overload or faulty conditions, this device ensures enhanced safety and quick restoration of power with a simple switch. Built with a reinforced 5-rivet side design, it offers superior durability for residential, commercial, and industrial applications.
Electrical Specifications
Rated Current Range
6 A
Minimum
63 A
Maximum
- Rated Voltage
- 230V / 400V AC
- Breaking Capacity
- 6 kA
- Rated Insulation Voltage
- 500 V
- Rated Impulse Withstand Voltage
- 6 kV
- Magnetic Tripping Limit
- 8.5 x In +/- 20%
Mechanical & Installation
Local Signaling
ON/OFF indication
Available Pole Configurations
- 1P
- 2P
- 3P
- 4P
- Mechanical Life
- 20000 cycles
- Electrical Life
- 10000 cycles
- Mounting Mode
- Clip-on / DIN rail
Standards & Compliance
- Compliance Standards
- EN/IEC 60947-2GB/T 10963.1IEC60898-1
