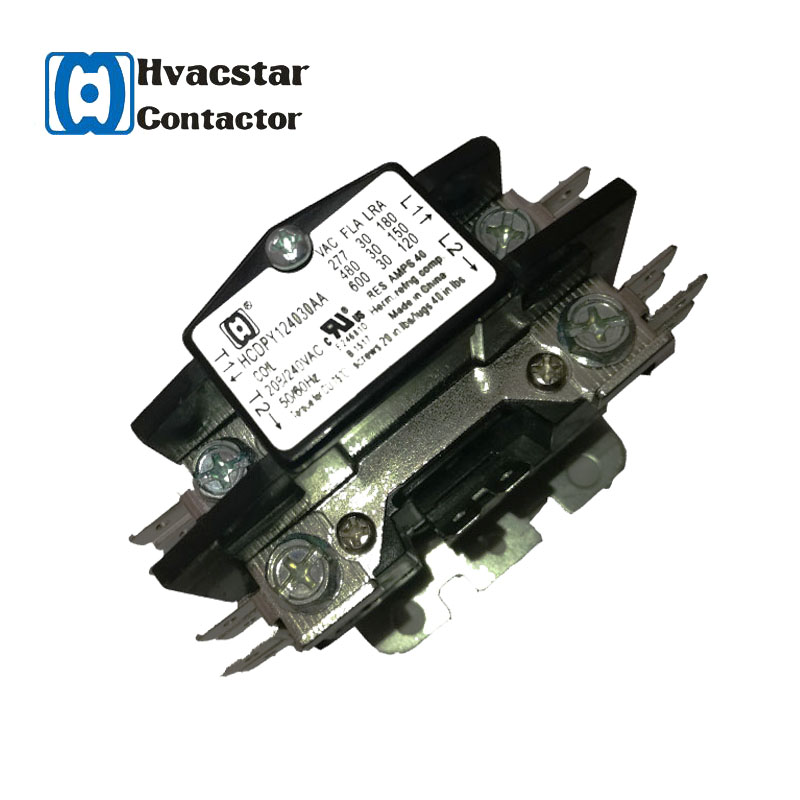

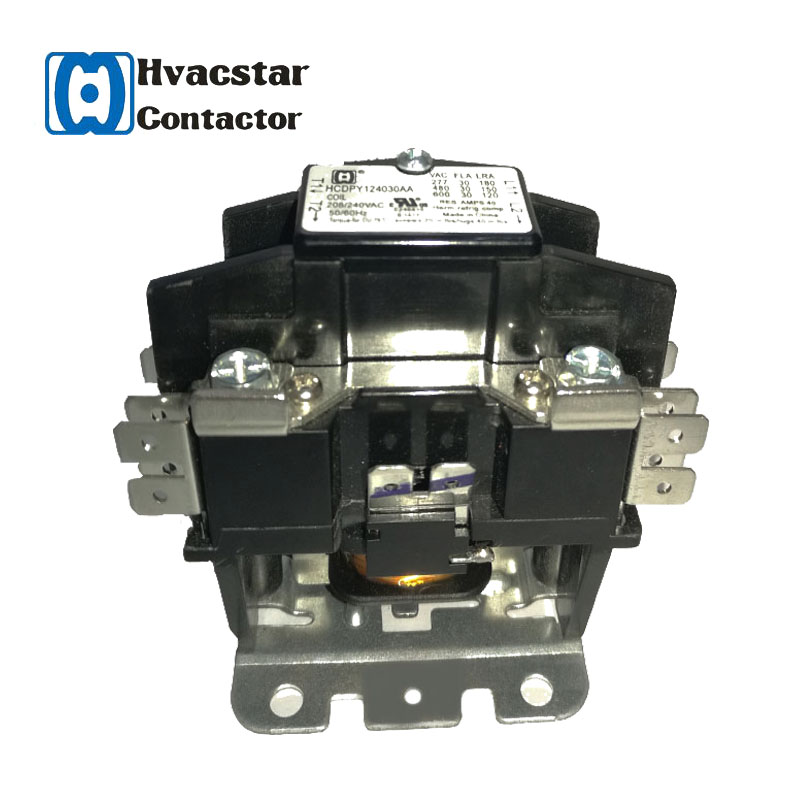

Single Pole Contactor for HVAC and Refrigeration
This single pole contactor is designed for commercial HVAC, refrigeration, and resistive heating applications. The device meets USA/Canada standards for definite purpose contactors, offering a cost-effective and high-performance solution.
Technical Specifications
Product Overview
HVAC and Refrigeration Contactor
This single pole definite purpose contactor is designed specifically for demanding HVAC and refrigeration environments. It offers reliable switching performance for hermetic systems and is built to ensure consistent operation in air conditioning applications. With 100% pre-shipment inspection, this component meets strict quality standards for professional installation.
Technical Specifications
Resistive Amps
40 A
Rated Resistive Amps
- Coil Voltage
- 208/240VAC 50/60Hz
Performance Ratings
Load Ratings Matrix
| Voltage (VAC) | FLA (A) | LRA (A) |
|---|---|---|
| 277 | 30 | 180 |
| 480 | 30 | 150 |
| 600 | 30 | 120 |
Installation
Recommended Torque
- CUTST screws: 20 in-lbs
- Lugs: 40 in-lbs
Certifications & Support
Service Terms
- Samples available
- OEM/ODM support
- 100% self-inspection
- Quality guarantee with replacement policy
- Certifications
- CUL Certified
