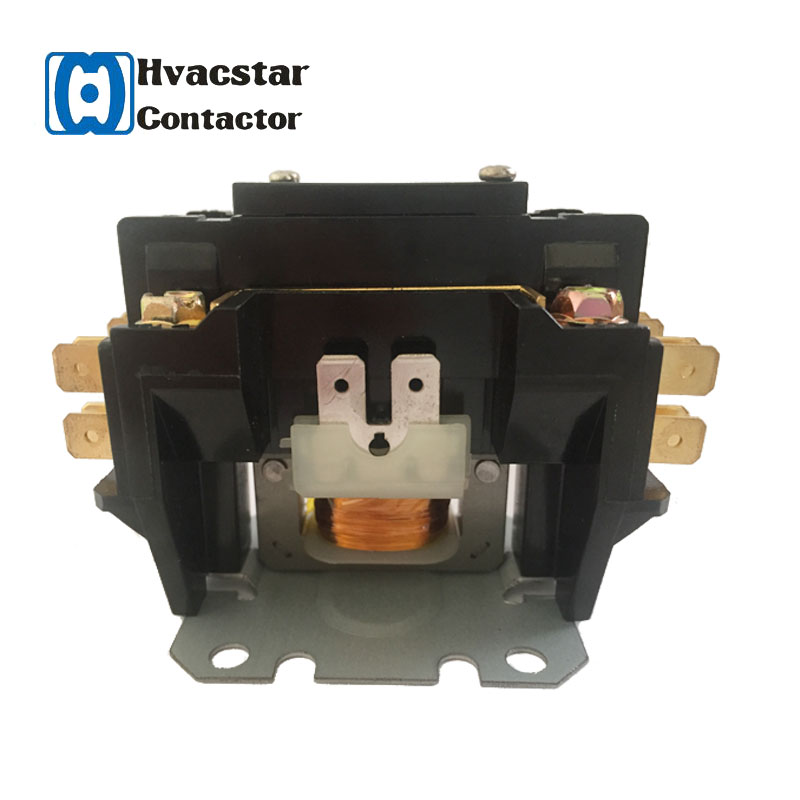

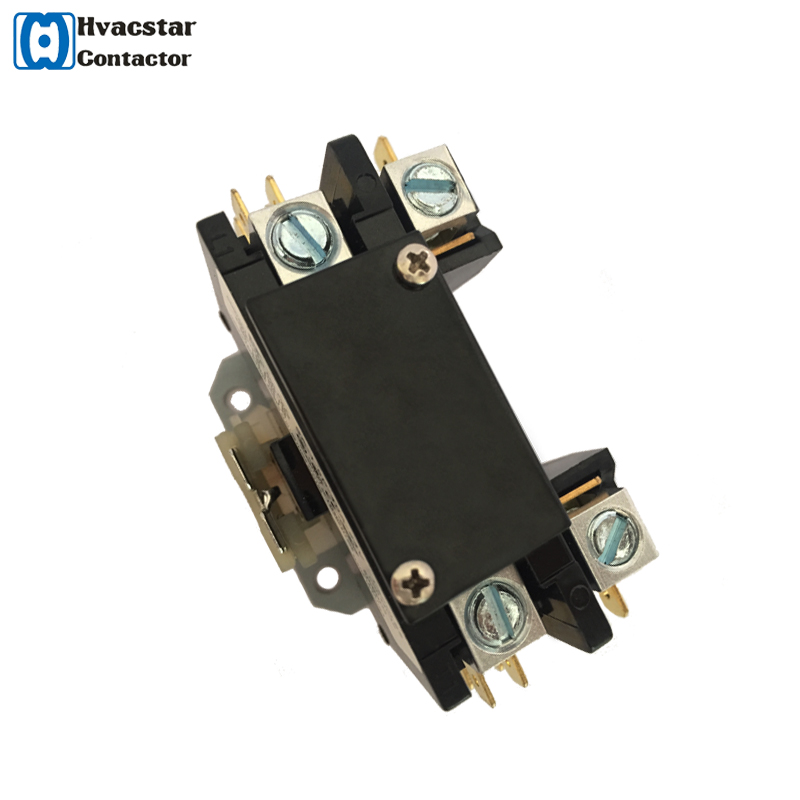

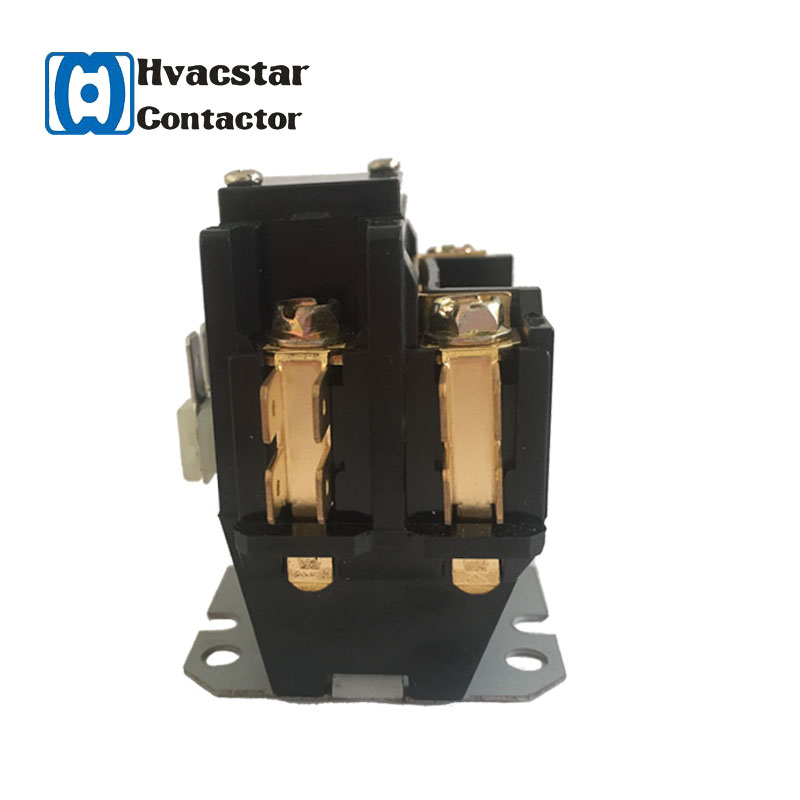

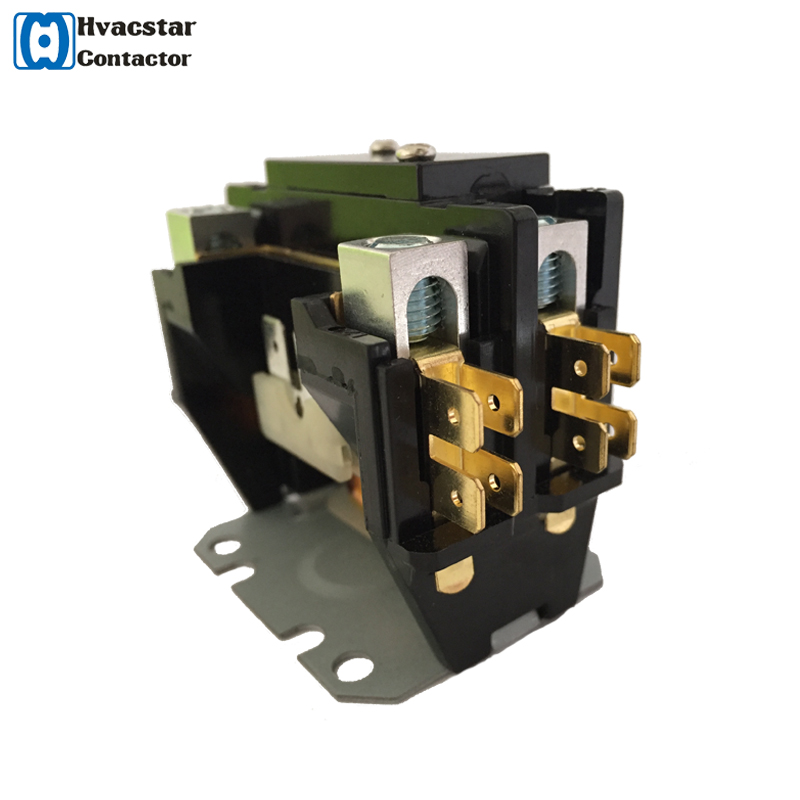

Single Pole AC Magnetic Contactor
This AC contactor is suitable for circuits up to 660V AC 50/60Hz. It can be combined with a thermal relay to create an electromagnetic starter.
Technical Specifications
Overview
High-Performance AC Magnetic Contactor
This single-pole AC magnetic contactor is specifically engineered for HVAC and refrigeration systems, providing reliable switching for compressors, fans, and heating elements. Designed for circuits up to 660V at 50/60Hz, it excels in frequently starting and breaking electrical loads with high durability. Its robust electronic design ensures energy efficiency and a long operational lifespan, making it an essential component for professional climate control applications.
Technical Ratings
Performance Ratings
660 V
Max Rated Voltage
95 A
Max Rated Current
30 A
Standard HVAC Current
Contact Rating per Pole
| Voltage (VAC) | FLA (A) | LRA (A) | RES (A) |
|---|---|---|---|
| 240/277 | 30 | 180 | 40 |
| 480 | 30 | 150 | 40 |
| 600 | 30 | 120 | 40 |
Installation & Construction
Tightening Torque
- Screws: 22 in-lbs
- Lugs: 40 in-lbs
- Suitable for CU 75°C conductors
- Pole Configuration
- 1 Pole (or 1.5 Pole options available)
- Coil Voltage
- 24VAC (50/60Hz)
Applications
Typical Use Cases
- Air Conditioning Systems
- Hermetic Refrigeration Compressors
- Star-Delta Starters
- Mechanical Interlocking Devices
- Electromagnetic Starters (when combined with thermal relay)
Compliance & Standards
International Standards
- IEC 60947-4-1
- GB 14048.4
- Product Certifications
- CBCEULCQCISO 9001
Service & Advantages
Why Choose This Product
OEM/ODM Available18-Year Manufacturing ExpertiseFast DeliveryLong Product Life
