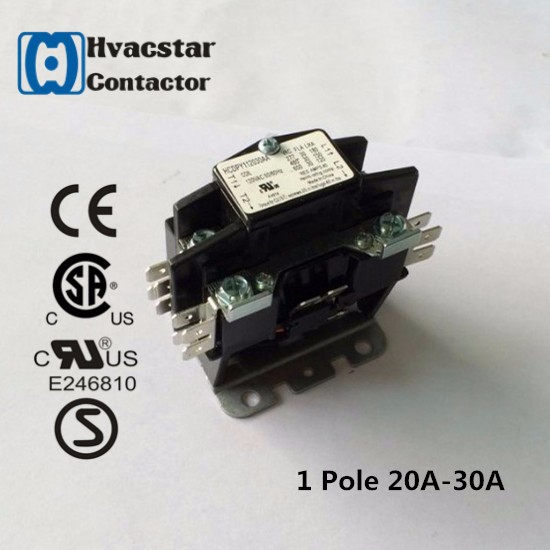

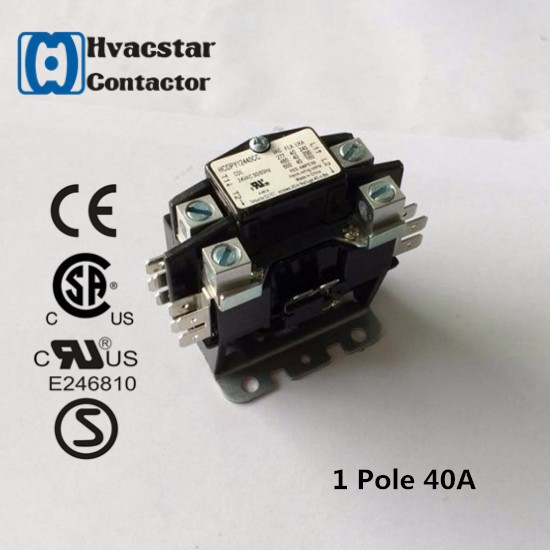

Single Pole AC Contactor 30 FLA for HVAC Systems
This single pole AC contactor is designed for HVAC applications. It is compatible with various coil voltages and suitable for use in air conditioning and refrigeration units.
Technical Specifications
Product Overview
High-Performance HVAC AC Contactor
This single-pole AC contactor is engineered for reliable motor and compressor control in residential and commercial HVAC and refrigeration systems. It serves as a direct, safe replacement for discontinued Furnas-type models, offering seamless compatibility with a wide range of major air conditioning brands. Designed for 30 FLA applications, it provides a robust solution for protecting electrical equipment in demanding environments.
- Compatible Equipment Brands
- AmanaCarrierColemanPayneBryantDay & NightIntercity ProductsLennoxTraneRheemRuudYorkGoodman
Electrical Ratings
Core Electrical Metrics
30 A
Full Load Amps (FLA)
1
Number of Poles
40 A
Resistive Amps
Available Coil Voltages
- 24V
- 120V
- 208/240V
- 277V
- 380V
30 FLA Load Ratings
| Line Voltage | Locked Rotor Amps (LRA) | Max Horsepower (HP) |
|---|---|---|
| 120V | 180 | 1 |
| 240V | 150 | 2 |
| 480V | 120 | 0 |
Technical Specifications
Coil Technical Data (50/60Hz)
| Nominal Voltage | Max Pickup (V) | Drop-Out Range (V) | DC Resistance (Ω) |
|---|---|---|---|
| 24V | 18 | 6-15 | 17.5 |
| 120V | 88 | 20-70 | 450 |
| 208/240V | 177 | 40-140 | 1,800 |
| 277V | 221 | 50-165 | 2,252 |

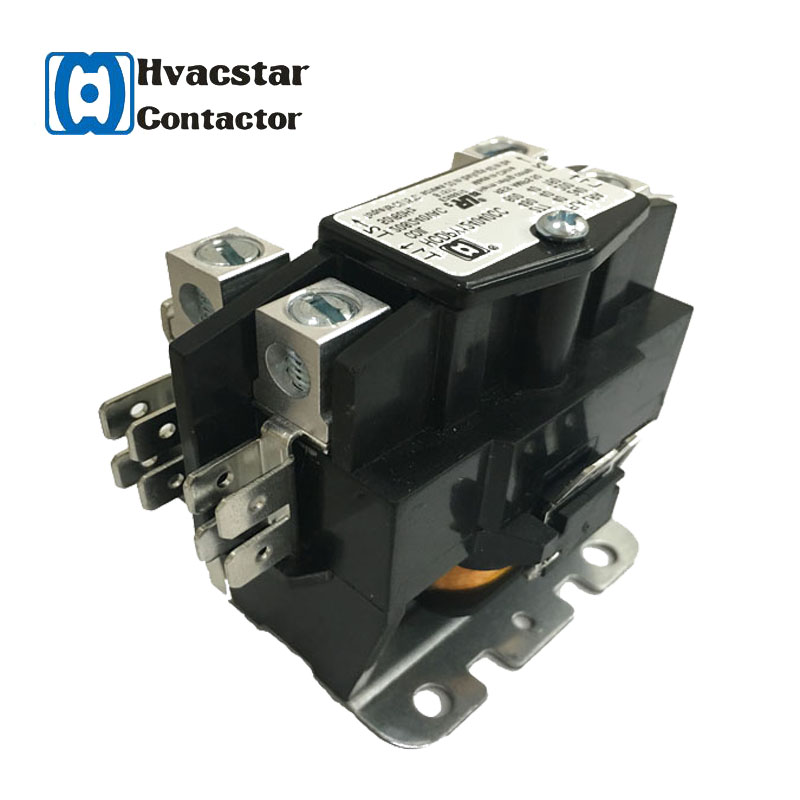

Installation & Construction
Terminal Specifications
- Line and Load Terminals: #10-32 Screw
- Wire Size: 16-8 AWG (Stranding must be split for #8)
- Tightening Torque: 25 in-lbs
- Coil Termination: Dual .250 QC
- Quick Connects: Quad configuration
Physical Characteristics
- Insulation System: 130°C Class B
- Optional ARC Cover available

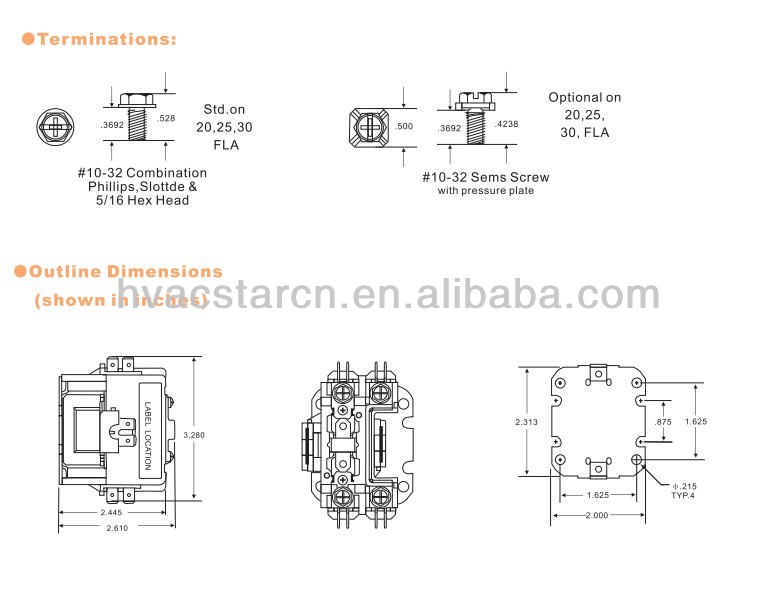

- Mounting: 4-hole pattern (0.215" diameter)
- Approximate Unit Weight: 0.5 lb / 0.23 kg
- Ambient Operating Temperature
- -40°C to 65°C (-40°F to 150°F)
Compliance & Safety
Certifications
CUL ListedCECSA
