Single-Phase HVDC Converter Transformer

This single-phase converter transformer is designed for high-voltage direct current (HVDC) transmission applications. It provides efficient power conversion for HVDC systems with a capacity of 3GW to 10GW.

Request a Quote Download PDFPDF

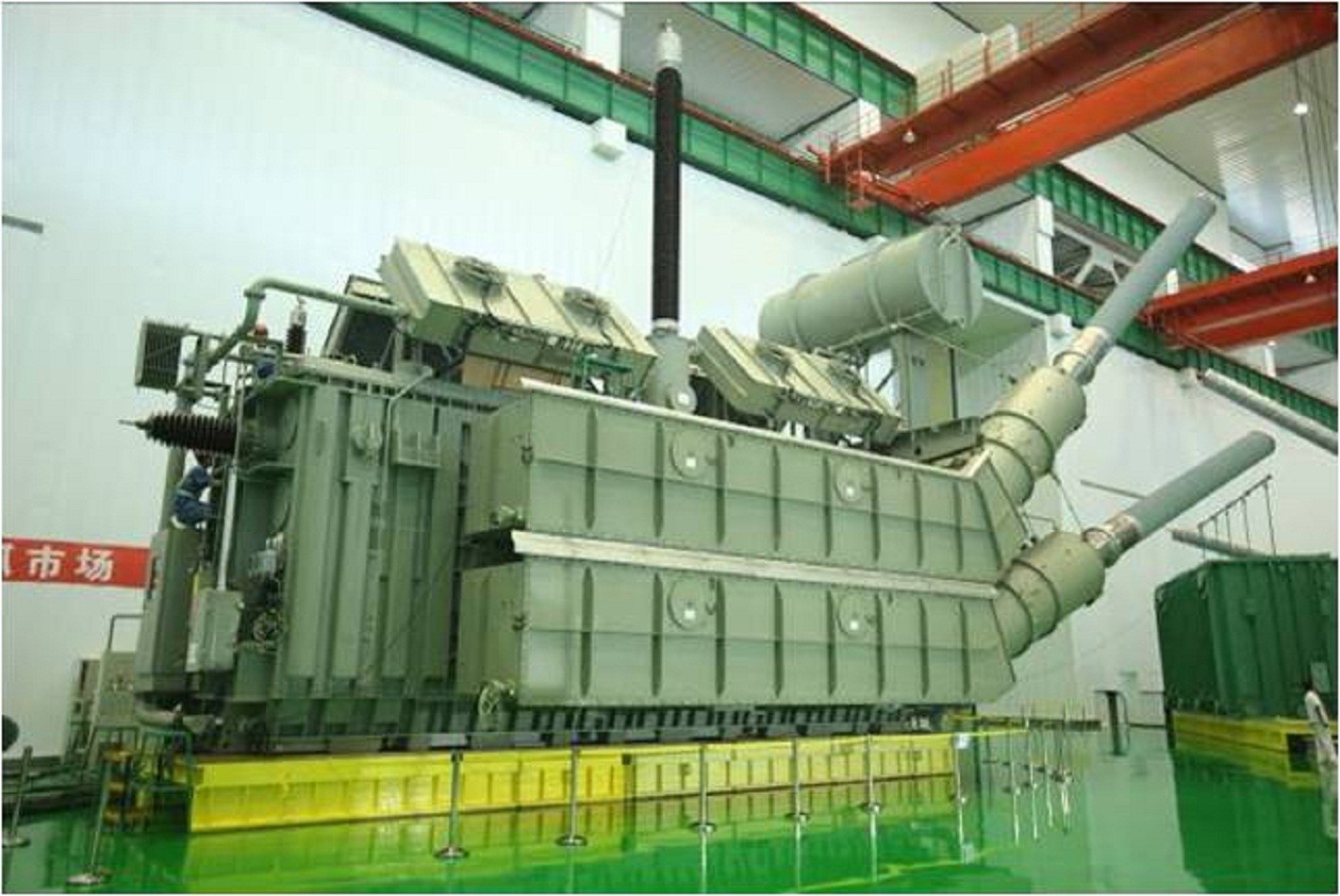

Single phase Converter Transformer - Image 1

Technical Specifications

Product Overview

High-Efficiency HVDC Conversion

This single-phase HVDC converter transformer is engineered for high-voltage power conversion applications up to ±1100kV. Designed with a robust construction, it features advanced cooling systems and insulation to ensure reliable performance in demanding industrial environments. The unit includes comprehensive monitoring systems for operational safety and is structured for efficient transport and installation.

Technical Specifications

Voltage Class: 1100 kV
Capacity: 600 MVA
Core Features: High-Voltage InsulationMulti-Tank DesignAdvanced MonitoringOil-Filled ConservatorCorrugated Tank Walls

Logistics and Dimensions

Max Transport Weight (Single Unit): 343 ton
Max Total Weight: 504 ton
Dimensions (L x W x H): 25.5m x 7.9m x 14.5m
