Technical Specifications
Product Overview

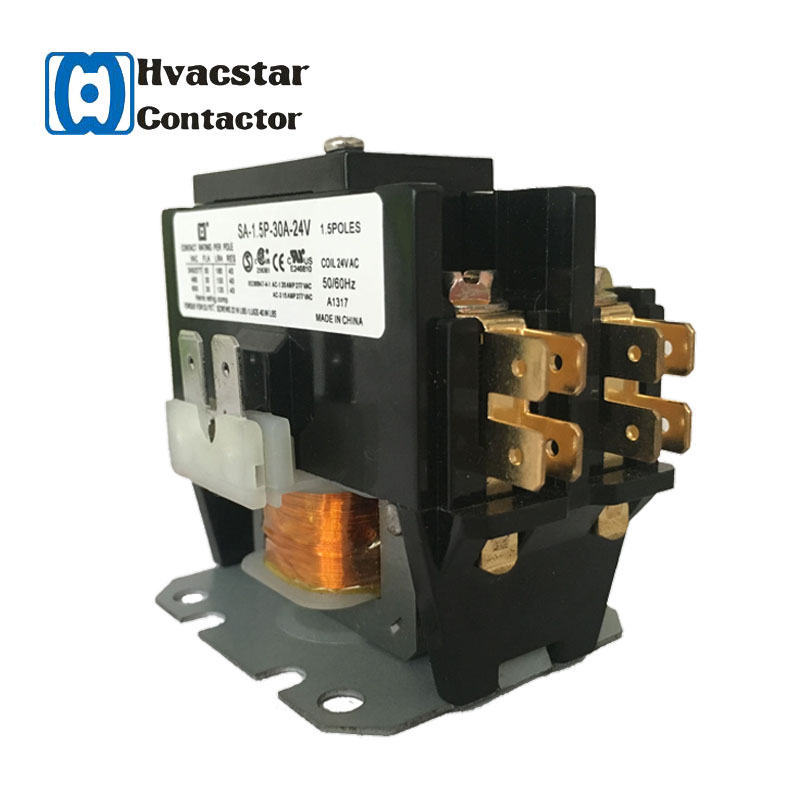

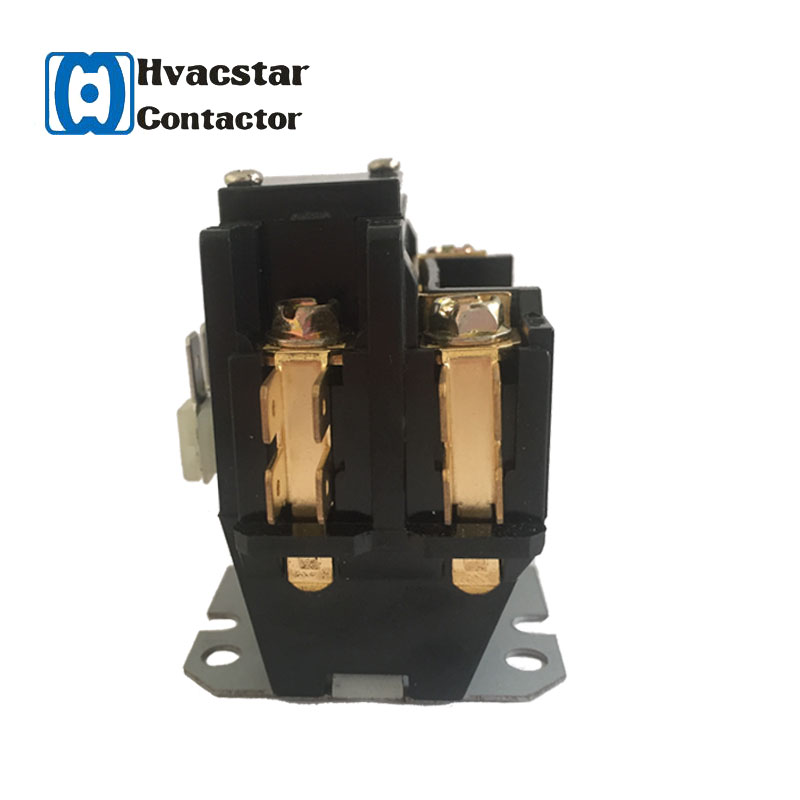

Professional HVAC Contactor
This single-phase definite purpose contactor is engineered for reliable switching in HVAC and refrigeration systems. Designed to handle demanding electrical loads, it ensures consistent performance for hermetic compressors and other electronic AC applications. With a robust design and adherence to international electrical standards, this component provides dependable operation for professional installation and maintenance.
Electrical Ratings
Rated Current
20 A
AC-1 Rating
15 A
AC-3 Rating
- Coil Voltage
- 24VAC
- Operating Frequency
- 60 Hz
Technical Specifications
Contact Ratings Per Pole
| Voltage (VAC) | FLA | LRA | RES |
|---|---|---|---|
| 240 | 30 | 180 | 40 |
| 480 | 30 | 150 | 40 |
| 600 | 30 | 120 | 40 |
Recommended Torque (Copper Conductors 75°C)
- Screws: 22 in-lbs
- Lugs: 40 in-lbs
Compliance & Standards
- Standards Compliance
- IEC60947-4-1
Service & Logistics
Available Services
OEM AvailableODM AvailableSample Available
- Lead Time
- 15-20 days after deposit
