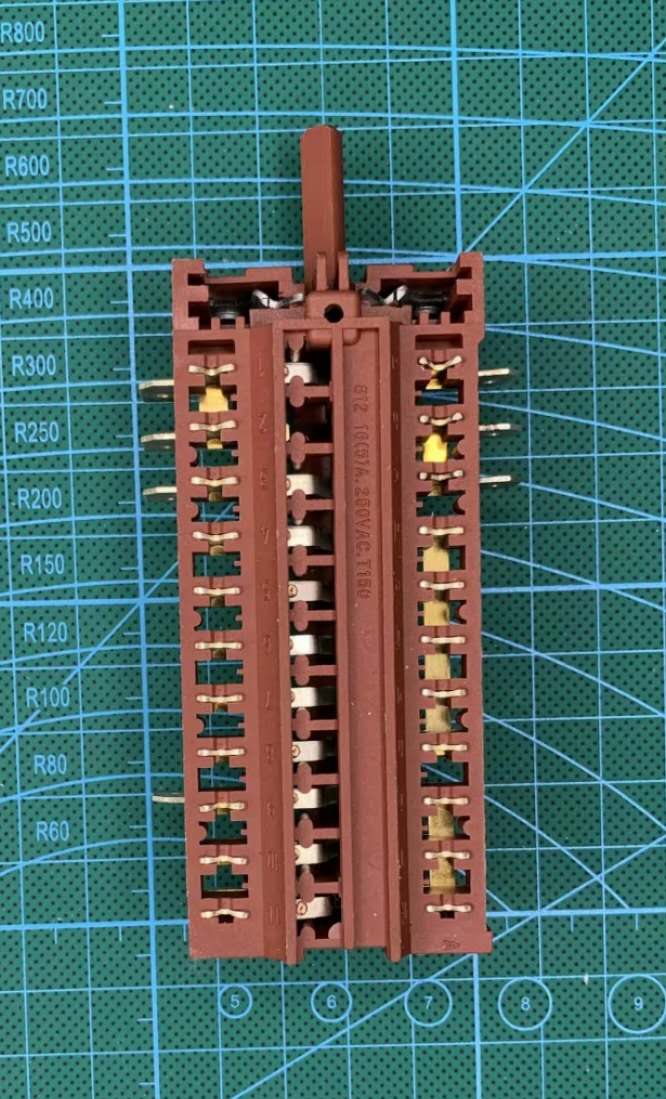

Rotary Switch 16(3)A 250VAC
This rotary switch is rated at 16(3)A, 250VAC, T150. It features a central shaft for manual operation and multiple terminals for electrical connections.
Technical Specifications
Product Overview
High-Performance Rotary Switch for Kitchen Appliances
This durable rotary switch features a robust bakelite base and a PA66 rotating shaft, ensuring reliable performance in demanding environments. Designed for precise circuit control, it enables multiple contact combinations through manual shaft rotation. Its exceptional heat resistance and flexible operation make it an ideal component for professional-grade electric ovens and ceramic heating appliances.
Technical Specifications
Rated Capacity
16 A
Current @ 250V
10 A
Current @ 400V
Construction Materials
- Bakelite base
- PA66 rotating shaft
- Operating Temperature
- -25℃ to +150℃
- Max Heat Resistance
- 150 ℃
Compliance and Quality
Certifications
SEMKOCE
- Compliance Standards
- ROHSREACH
Application
Suitable Applications
- Electric ovens
- Ceramic ovens
- Small household appliances
