Rotary Cam Switch
This rotary cam switch is designed for diverse electrical applications. It is rated for high voltage and current applications and features clearly marked terminal connections.
Technical Specifications
Overview

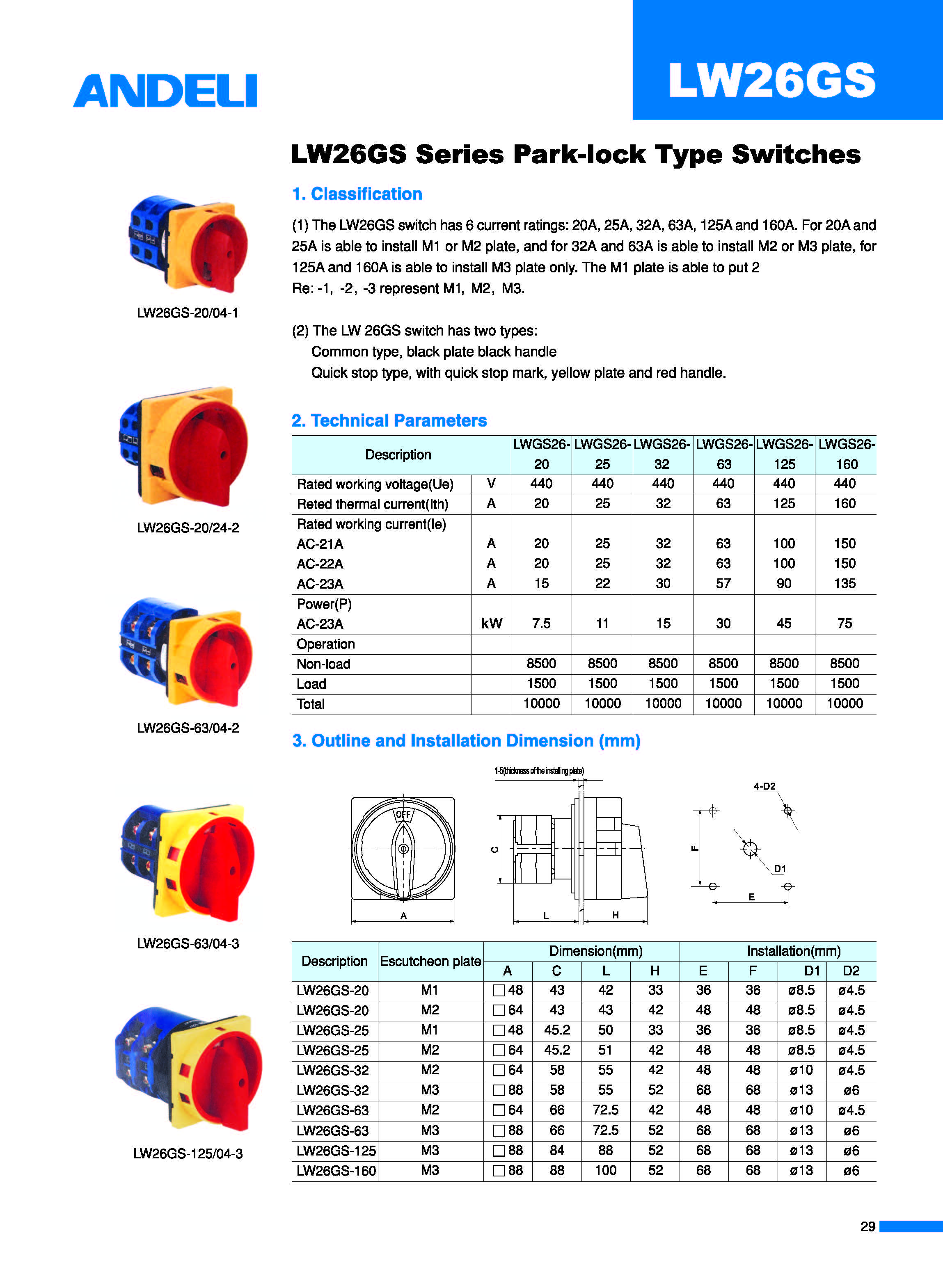

LW26GS Rotary Cam Switch
The LW26GS series rotary switch is engineered for reliable performance in diverse industrial and commercial electrical applications. Designed for versatility, it functions effectively as a control switch, transfer switch, or motor control switch. The series is available in two distinct configurations: a common type with a black plate and handle, and a quick-stop type featuring a yellow plate and red handle for enhanced visibility and safety.
Technical Specifications
Operational Life
8,500 cycles
Non-load Operations
1,500 cycles
Load Operations
10,000 cycles
Total Operations
Current and Power Ratings
| Ith (A) | AC-21A (A) | AC-22A (A) | AC-23A (A) | Power (kW) |
|---|---|---|---|---|
| 20 | 20 | 20 | 15 | 7.5 |
| 25 | 25 | 25 | 22 | 11 |
| 32 | 32 | 32 | 30 | 15 |
| 63 | 63 | 63 | 57 | 30 |
| 125 | 100 | 100 | 90 | 45 |
| 160 | 150 | 150 | 135 | 75 |
- Rated Working Voltage
- 440 V
- Available Rated Thermal Currents
- 20A25A32A63A125A160A
Installation & Mounting
Compatible Escutcheon Plates
- M1 (20A, 25A)
- M2 (20A, 25A, 32A, 63A)
- M3 (32A, 63A, 125A, 160A)
Design Options
Available Configurations
Common Type (Black Plate/Handle)Quick Stop Type (Yellow Plate/Red Handle)
