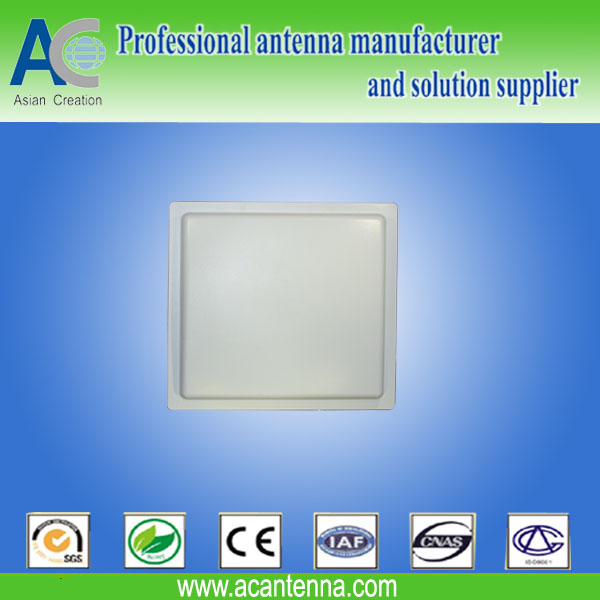

RFID MIMO Panel Antenna 902-928MHz 2x12dBi
This RFID MIMO panel antenna operates in the 902-928MHz frequency range. It provides 2*12dBi gain and measures 455*455*35mm.
Technical Specifications
Overview
High-Performance RFID Connectivity
This RFID MIMO panel antenna is engineered for reliable data capture in demanding industrial environments. It provides high-gain performance within the 902-928MHz frequency range, making it an ideal choice for warehouse management, inventory control, and asset tracking. With a robust design that includes high wind resistance and wide temperature tolerance, this antenna ensures consistent connectivity in both indoor and outdoor settings.
Key Performance Metrics
Performance Highlights
12 dBi
Gain
100 W
Max Power
241 km/h
Rated Wind Velocity
Electrical Specifications
- Frequency Range
- 902-928MHz
- V.S.W.R
- 1.5
- Polarization
- Vertical and Horizontal
- Impedance
- 50 Ω
Mechanical Specifications
- Antenna Dimensions
- 455 x 455 x 35mm
- Weight
- 2.9 KG
- Operating Temperature
- -40℃ to +70℃
Connectivity
- Connector
- 2 x N Female
- Mounting Method
- Pole
Certifications
- Industry Standards
- CEISO-09001SGSIAFCNAS
