Residual Current Circuit Breaker with Overcurrent Protection
This residual current circuit breaker (RCBO) provides protection against electrical faults and overcurrent. Compliant with GB16917.1 and IEC61009-1 standards, it has a 0.03A sensitivity and a tripping time of ≤0.1s.
Technical Specifications
Product Overview
Professional Circuit Protection

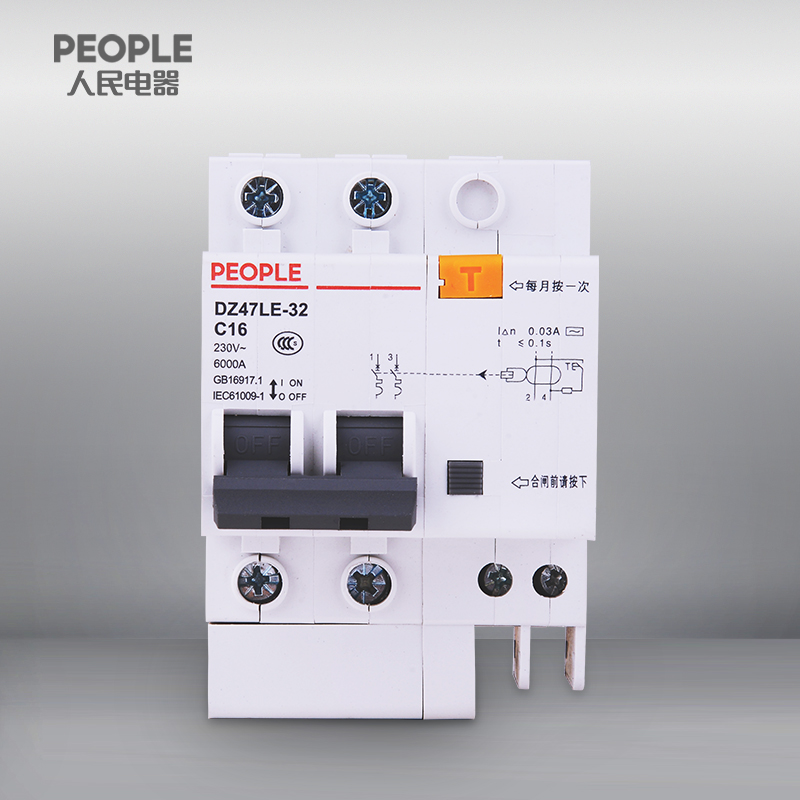

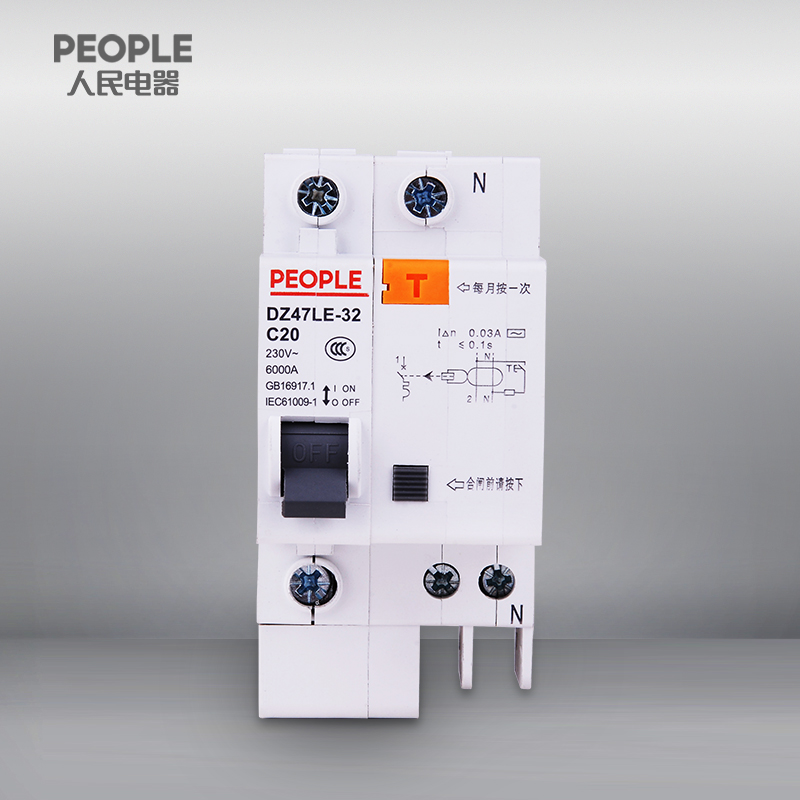

The DZ47LE-32 series is a robust residual current circuit breaker with overcurrent protection (RCBO), designed for reliable electrical safety in industrial and commercial circuits. It provides comprehensive protection against earth leakage, overload, and short-circuit faults, ensuring operational continuity and safety. With a compact design and standardized performance metrics, this device is engineered for frequent switching and dependable fault interruption.
Electrical Ratings
- Rated Working Voltage
- 230/400V
- Rated Current
- 32 A
Performance Metrics
Key Performance Indicators
6 kA
Breaking Capacity
0.03 A
Residual Current Sensitivity (IΔn)
0.1 s
Max Tripping Time
Standards & Compliance
- Compliance Standards
- GB16917.1IEC61009-1
Features
Protection Functions
Earth LeakageOverloadShort-circuit
Operational Features
- Monthly test button functionality
- On/Off status indicator
- Press-before-closing safety mechanism
- Suitable for frequent circuit switching
