Technical Specifications
Overview
Reliable Circuit Protection

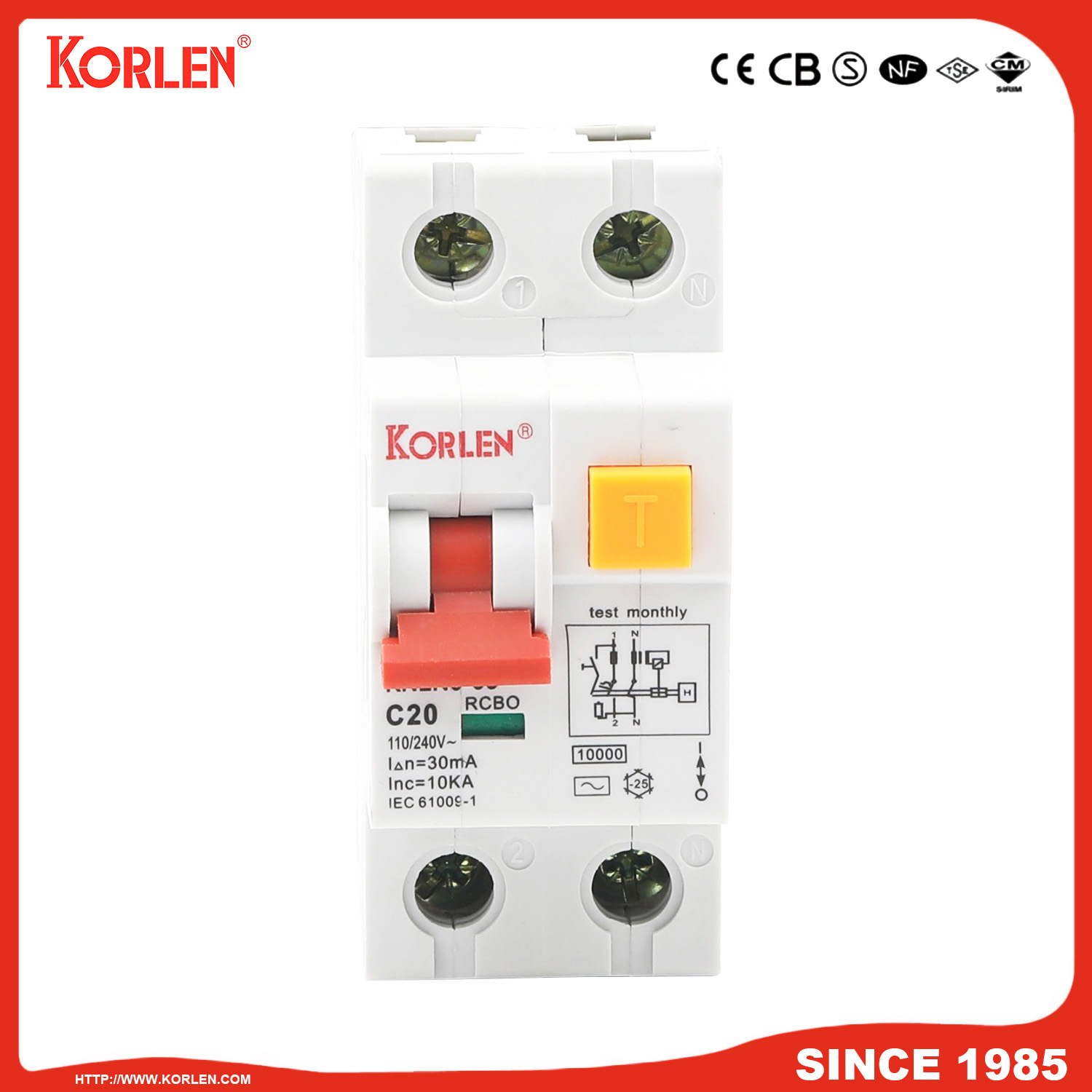

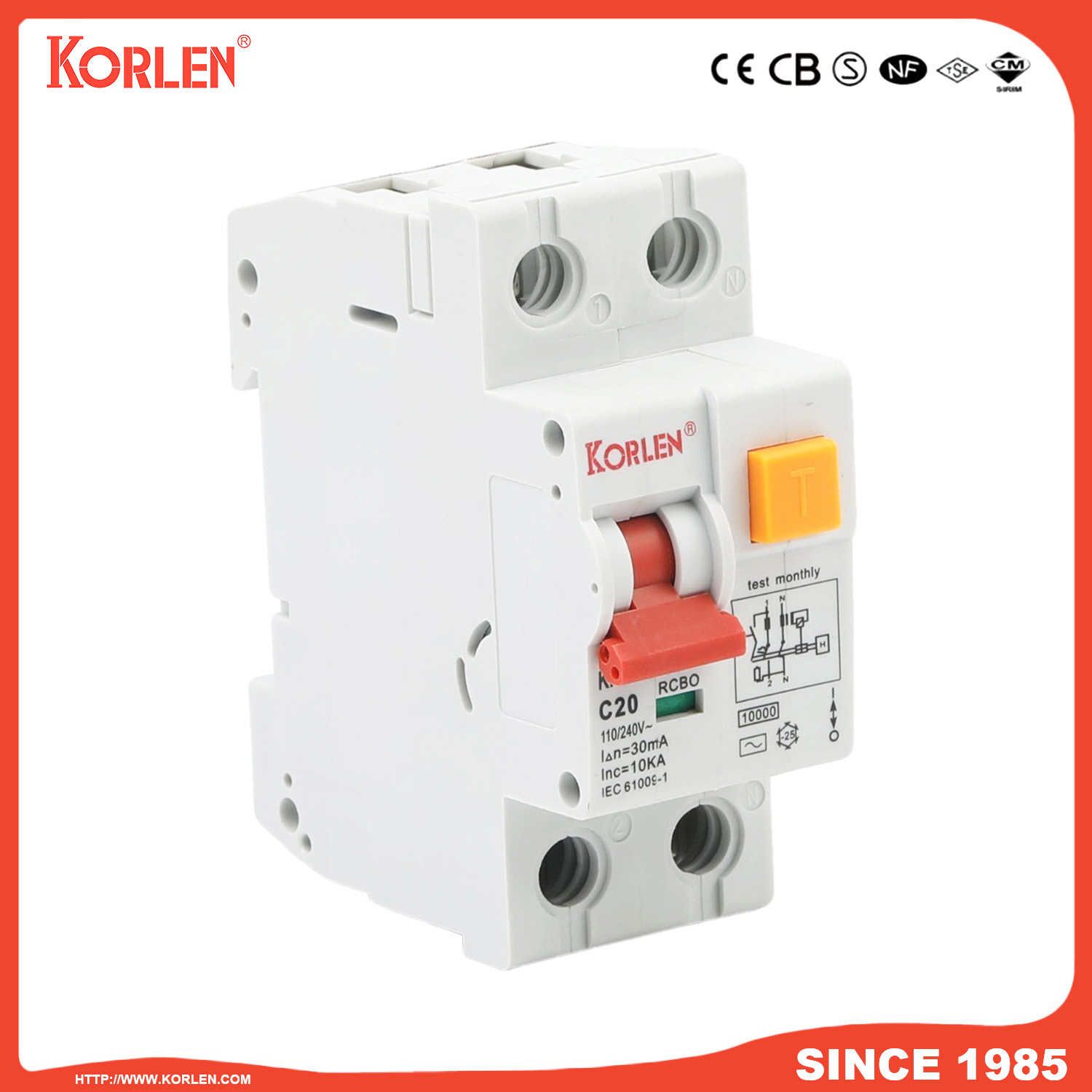

This residual current circuit breaker with overcurrent protection (RCBO) is engineered for comprehensive electrical safety. It effectively protects circuits from overloads, short-circuits, and earth leakage faults in AC 50/60Hz lines. Designed for quick response, it automatically cuts power within 0.1s to prevent accidents and ensure human safety in residential, commercial, and industrial environments.
Electrical Ratings
Available Rated Currents
- 2
- 3
- 6
- 10
- 16
- 20
- 25
- 32
- 40
- 50
- 63
- Rated Voltage
- 240 V
- Rated Frequency
- 50/60Hz
Performance Metrics
Key Performance Metrics
10,000 A
Short-Circuit Capacity
20,000 cycles
Mechanical Life
4,000 cycles
Electric Life
- Rated Residual Operating Current
- 0.01A0.03A0.1A0.3A
Standards & Compliance
Compliance Standards
IEC/EN61009-1GB16917.1
Technical Specifications
- Pole Configuration
- 1P+N
- Instant Release Type
- B TypeC Type
- Sensibility Type
- AC Type
