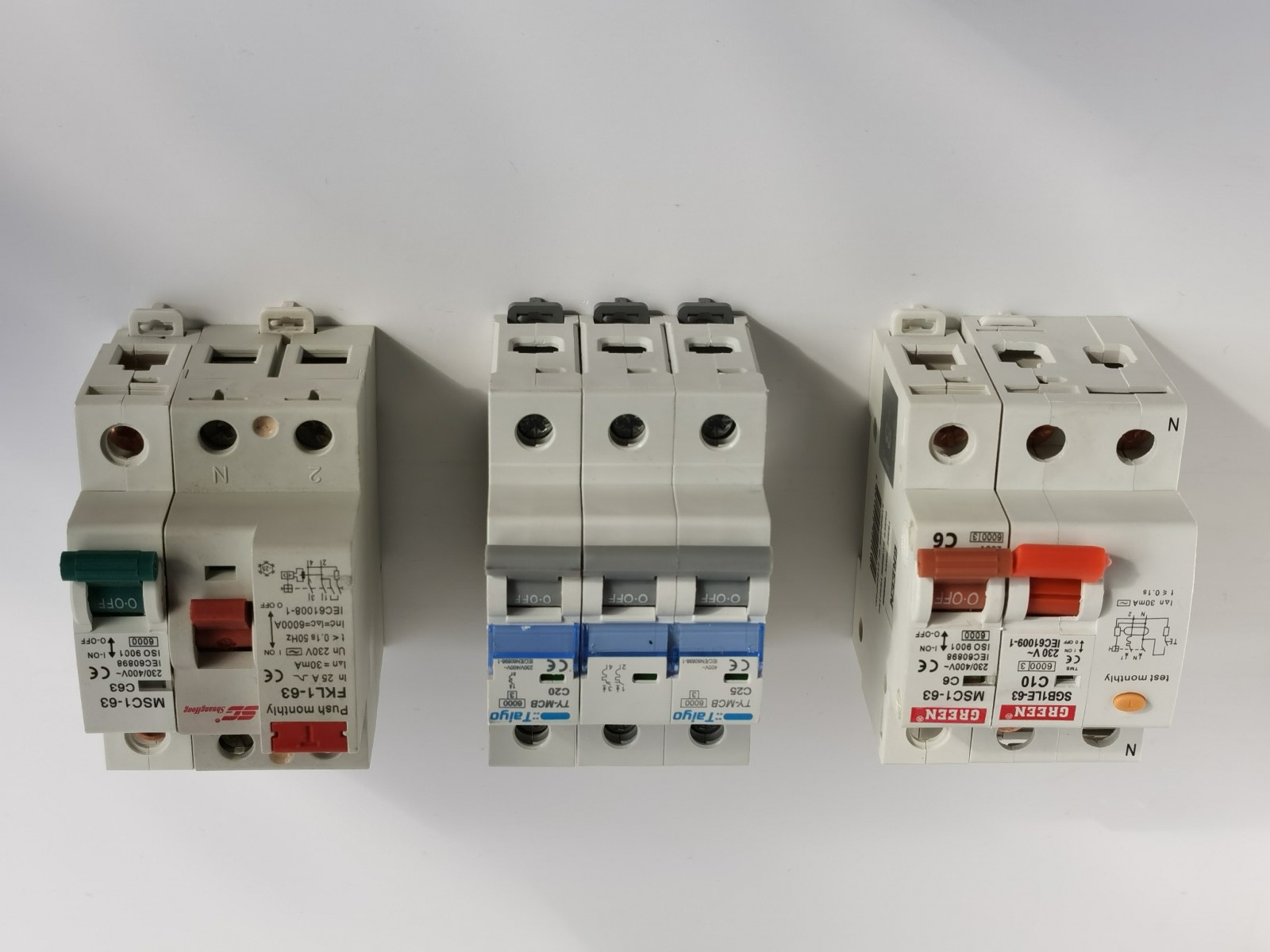

Residual Current Circuit Breaker RCCB
This residual current circuit breaker (RCCB) conforms to IEC61008-1 standards. It is designed for 230/240V (1P+N) or 400/415V (3P+N) AC 50/60Hz circuits, with rated currents from 10A to 40A and residual operating currents from 30mA to 500mA.
Technical Specifications
Product Overview
Reliable Circuit Protection
These residual current circuit breakers are engineered to provide superior protection against earth leakage currents, electrical shock, and potential fire hazards. Designed for versatility, they are suitable for a wide range of residential, commercial, and industrial electrical systems. Each unit features a compact, robust design that ensures easy installation in standard distribution boards while maintaining high operational reliability.
Electrical Specifications
Rated Voltages
- 1 Pole+N: 230/240V
- 3 Pole+N: 400/415V
Rated Residual Operating Current
- 30mA
- 100mA
- 300mA
- 500mA
- Rated Current Options
- 10A16A20A25A32A40A
Standards and Compliance
International Standards
IEC 61008-1ISO 9001
Performance Metrics
Performance Overview
6,000 A
Short-circuit Breaking Capacity
50 Hz
Operating Frequency
