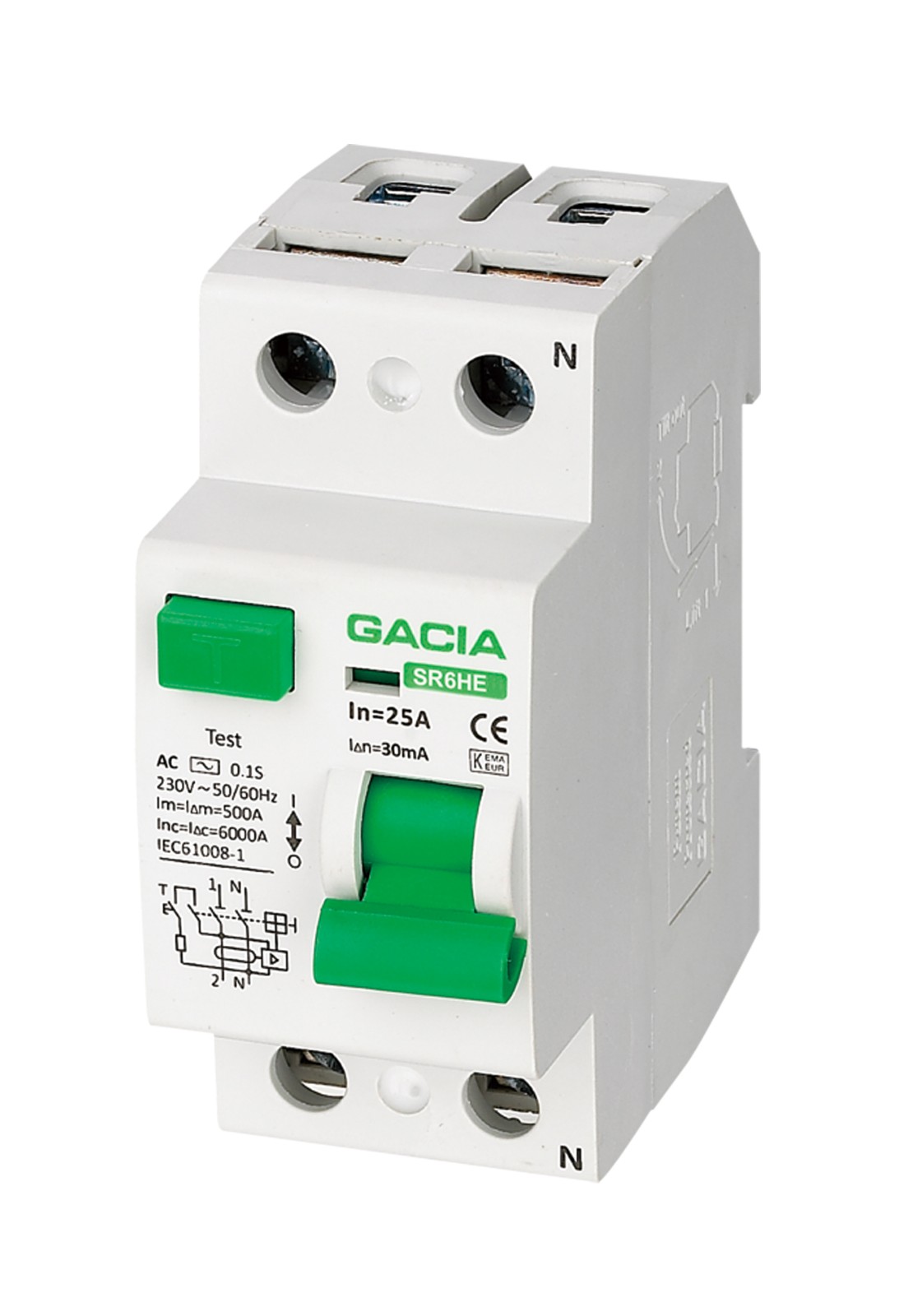

Residual Current Circuit Breaker
Residual current circuit breakers are designed for both domestic and industrial use. Based on a permanent magnet principle, they offer voltage-independent function, with voltage needed only for testing via the T test button; regular monthly testing is recommended.
Technical Specifications
Product Overview
Professional Residual Current Protection
The SR6HE series residual current circuit breakers provide reliable protection against electric shock and leakage currents for both domestic and industrial applications. Utilizing a permanent magnet principle, these devices offer voltage-independent functionality, ensuring operational integrity. They are fully compliant with international standards, providing robust safety and conditional short-circuit protection for modern electrical installations.
Technical Specifications
Rated Residual Current Sensitivity
- 10
- 30
- 100
- 300
- Rated Operational Voltage
- 230/400V AC
- Rated Current
- 63 A
- Rated Conditional Short Circuit Strength
- 6000 A
- Available Pole Versions
- 2-pole4-pole
- Device Types
- ACAAC+S
Compliance and Safety
Certified Standards
IEC/EN 61008-1CEKEMA
Recommended Test Frequency
1 month
Regular Test Period
