Residual Current Circuit Breaker
This residual current circuit breaker is designed to cut off a circuit immediately upon detection of a shock hazard or earth leakage. It is suitable for use in various plants, enterprises, and building construction projects to prevent electrical shock and fire.
Technical Specifications
Product Overview

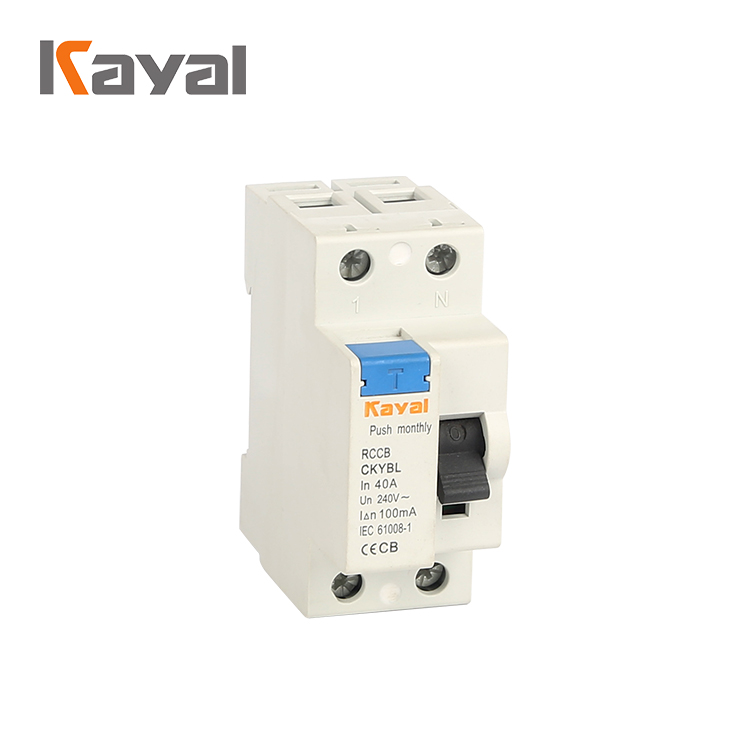

Residual Current Circuit Breaker

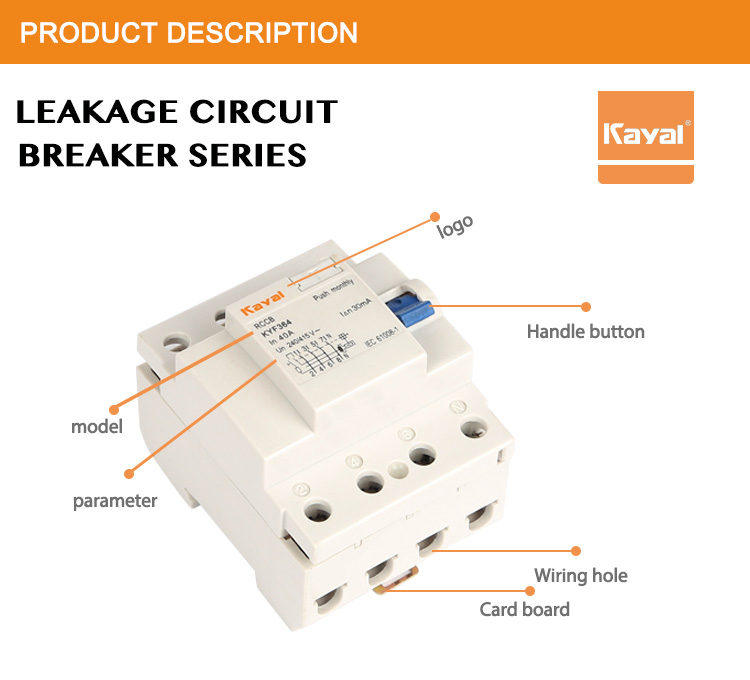

This high-performance Residual Current Circuit Breaker (RCCB) is engineered to provide critical protection against electrical shock hazards and fire risks caused by earth leakage. Designed in full conformity with the IEC 61008 international standard, it offers reliable performance for both residential and commercial building infrastructure. The unit features an integrated manual handle for operation and a dedicated test button to ensure monthly functional safety checks.
Electrical Specifications
Rated Current (A)
- 16
- 20
- 25
- 40
- 50
- 63
- Short Circuit Capacity
- 6000 A
- Rated Voltage
- AC 230/240VAC 400/415V
Performance Metrics
Key Operating Metrics
0.3 s
Off-time
0.51 In~In
Residual Current Scope
Configuration

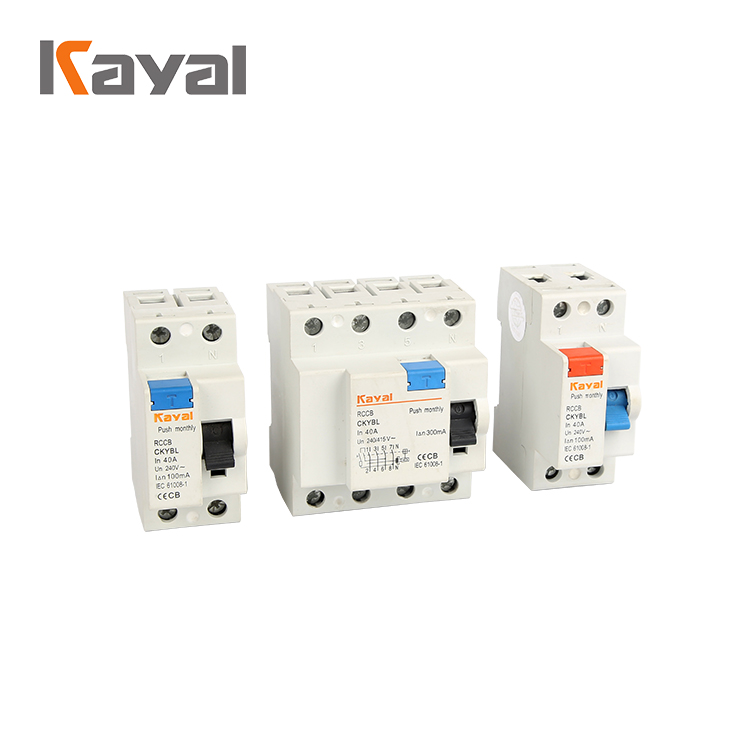

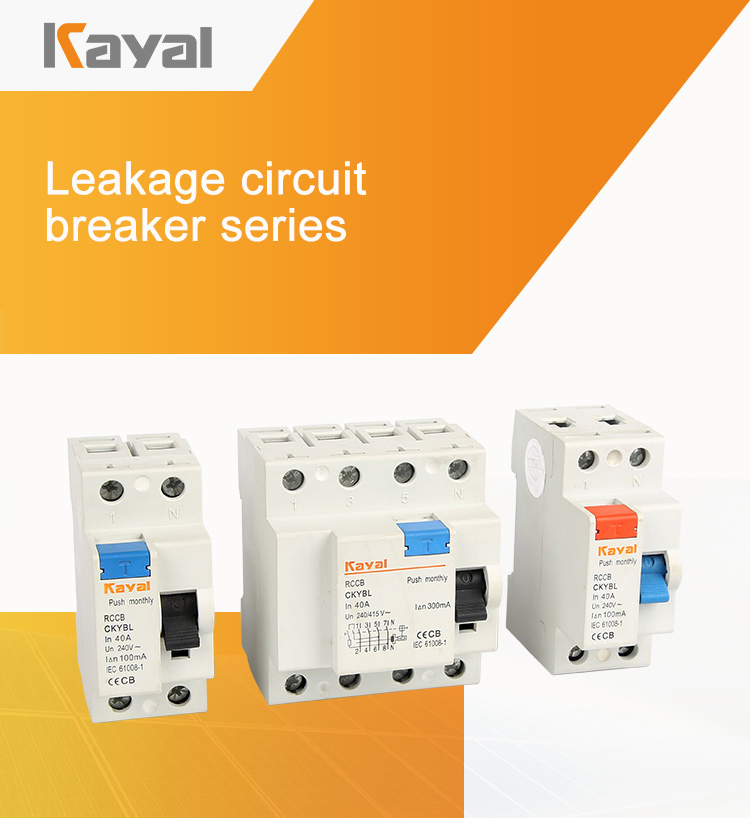

Available Poles
1P+N3P+N
- Residual Operating Current (mA)
- 30100300500
