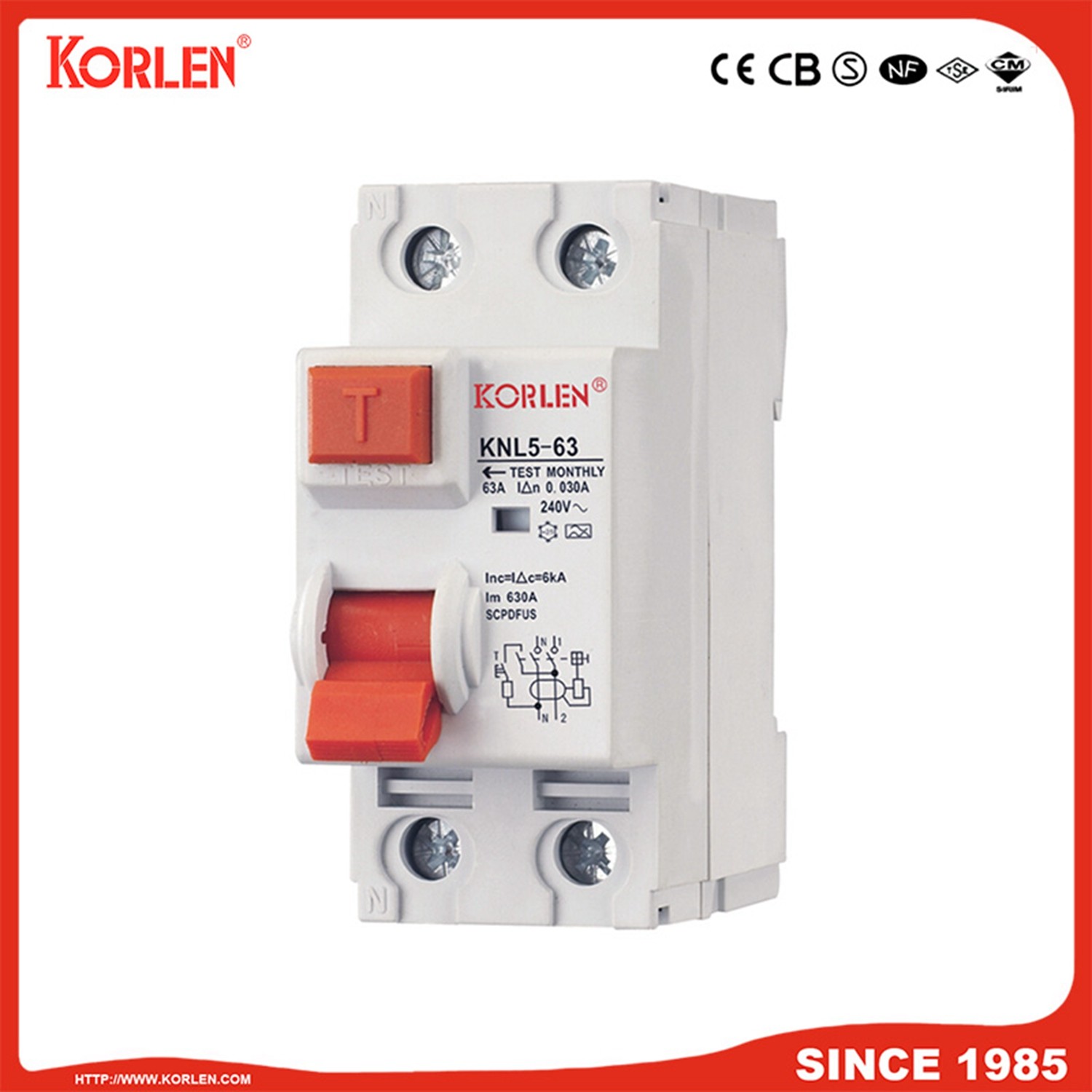

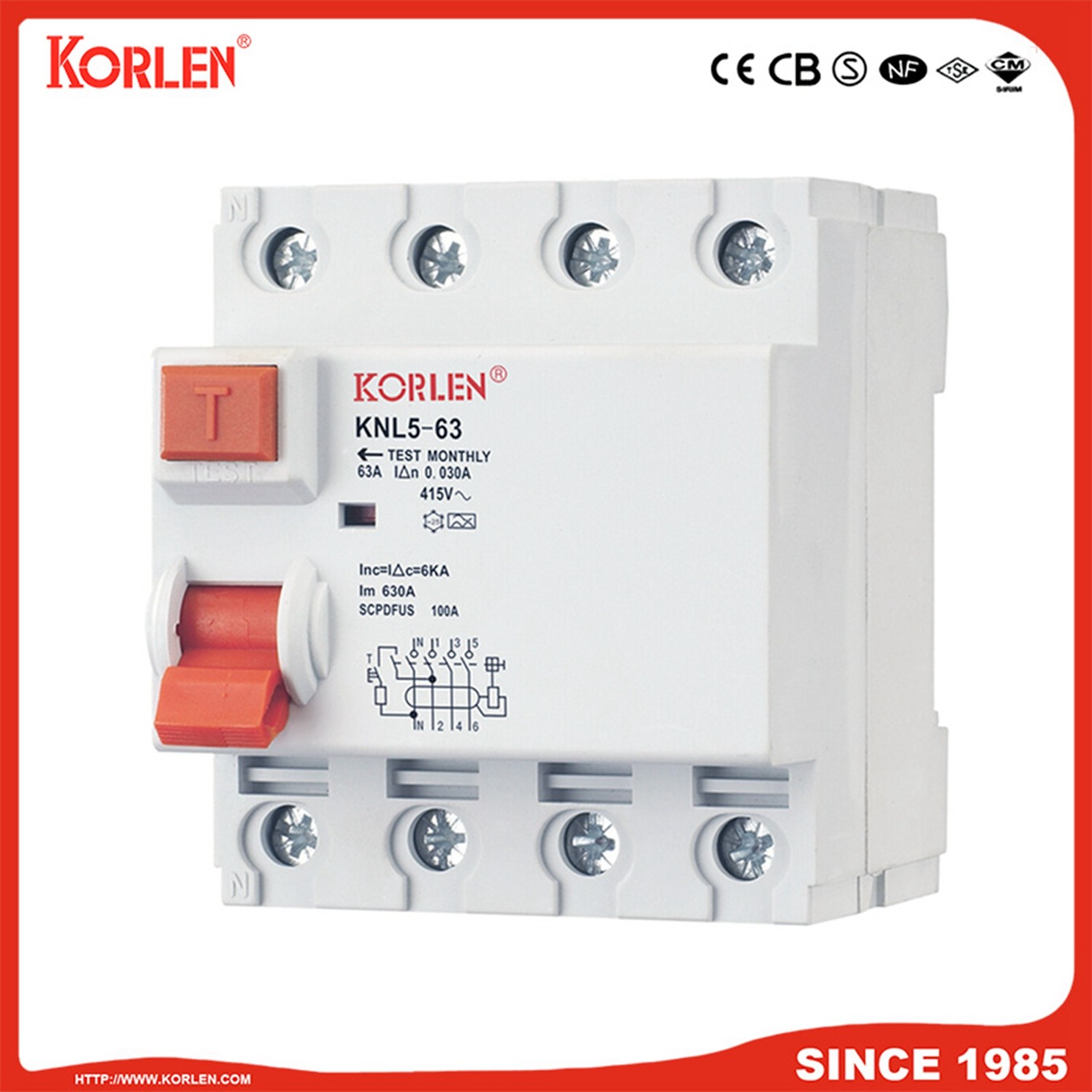

Residual Current Circuit Breaker
This residual current circuit breaker is designed for AC 50/60Hz lines with voltage 240V (2 pole) / 415V (4 pole) and rated current up to 63A. It quickly cuts off power in the event of human electricity shock or leakage current, protecting human safety and preventing accidents.
Technical Specifications
Overview
Safety and Protection
This residual current circuit breaker is engineered to provide essential electrical protection by rapidly cutting off power during leakage events or human electricity shocks. Designed for versatility, it is suitable for a wide range of environments including industrial sites, commercial buildings, and residential homes. The unit ensures reliable operation and safety compliance, serving as an effective solution for preventing electrical accidents.
Electrical Specifications
Rated Current Options
- 16
- 20
- 25
- 32
- 40
- 50
- 63
Performance Metrics
6,000 A
Rated Short-Circuit Current
10,000 cycles
Mechanical Life
4,000 cycles
Electric Life
- Rated Working Voltage
- 240/415V
- Rated Frequency
- 50/60Hz
Technical Details
Residual Current Settings
| Parameter | Values |
|---|---|
| Rated Residual Operating Current | 0.03, 0.1, 0.3, 0.5A |
| Rated Residual Un-operating Current | 0.015, 0.05, 0.15, 0.25A |
Sensibility Type
A TypeAC Type

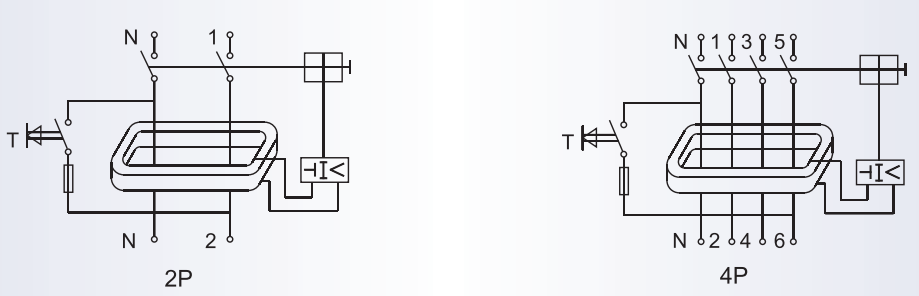

- Pole Configurations
- 2P4P
Compliance
- Standards Compliance
- GB 16916.1IEC/EN 61008.1
