Residual Current Circuit Breaker

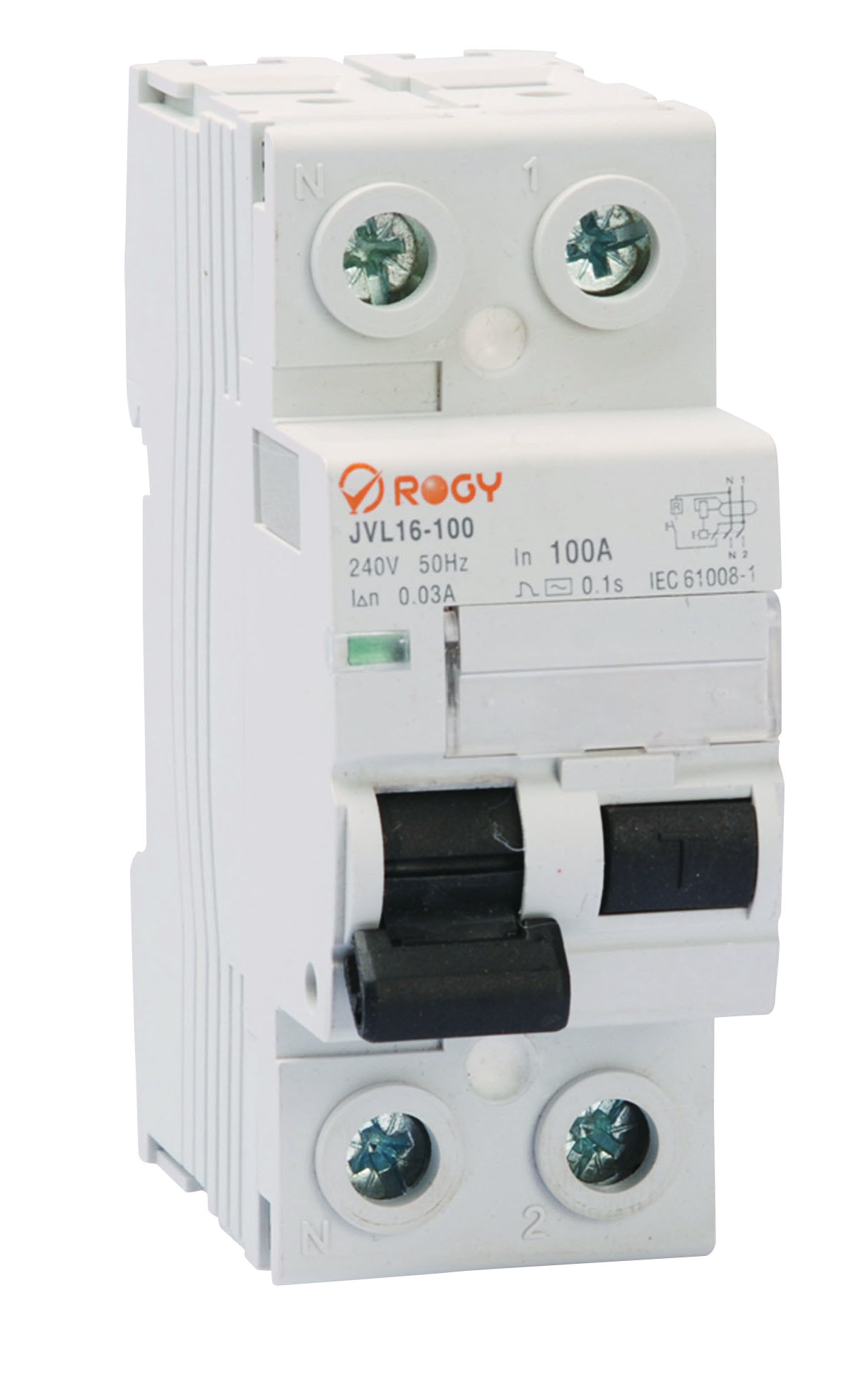

This residual current circuit breaker (RCCB) is designed for electrical protection, operating at 240V or 415V and 50Hz. It has a rated current of 100A and a tripping current of 0.03A with a tripping time of 0.1s, compliant with IEC 61008-1 standards.
Technical Specifications
Product Overview
Professional Electrical Protection
This Residual Current Circuit Breaker (RCCB) is engineered for high-performance electrical safety, providing protection against earth faults and leakage currents. Featuring an elegant, arc-shaped design for comfortable operation, it includes a clear contact position indicator for rapid troubleshooting. The unit is built with fire-resistant materials and is independent of line voltage fluctuations to ensure reliable performance in diverse commercial and terminal applications.
Electrical Ratings
Rated Current
- 63
- 80
- 100
- Rated Voltage
- AC 230/400
- Rated Frequency
- 50/60Hz
Performance Metrics
Key Performance Indicators
10 kA
Short-circuit Capacity
4,000 cycles
Endurance
- Rated Residual Operating Current
- 0.03A0.1A0.3A0.5A
Technical Specifications
Technical Data
| Attribute | Value |
|---|---|
| Mechanism Type | Electro-magnetic |
| Pole Configurations | 2, 4 |
| Residual Characteristics | A, AC, G, S |
| Terminal Height | 19mm |
