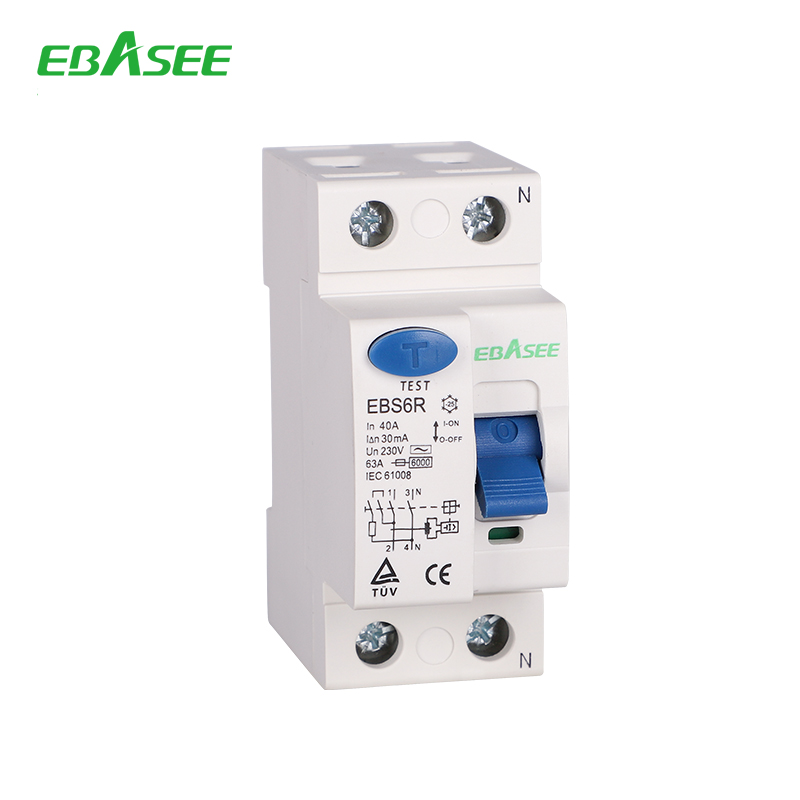

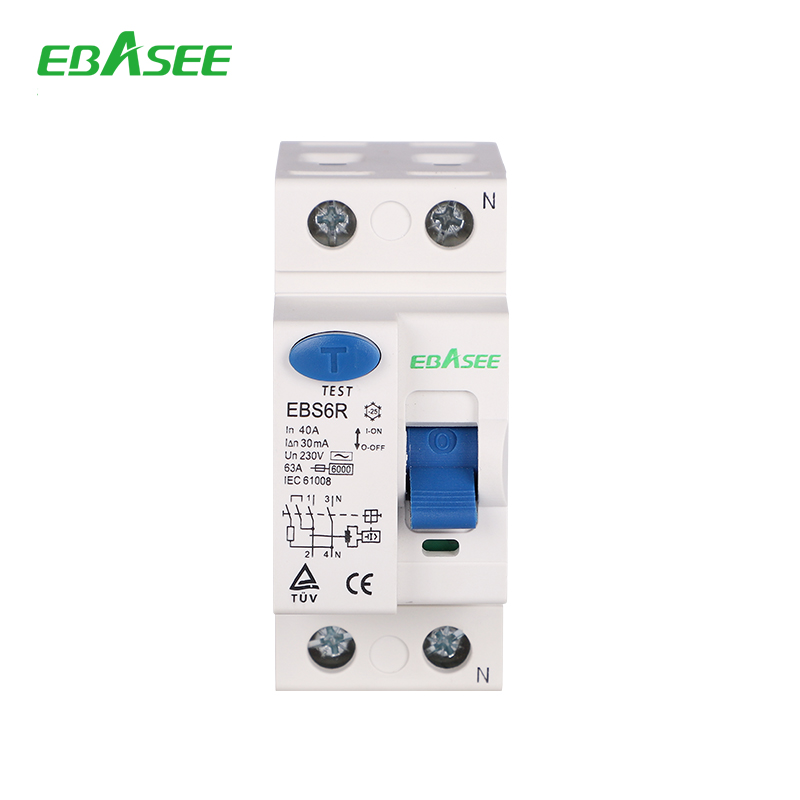

Residual Current Circuit Breaker
This residual current circuit breaker is designed to protect against electrical shock and fire hazards. It can be used in residential, commercial, and industrial settings.
Technical Specifications
Product Overview
Professional Residual Current Protection

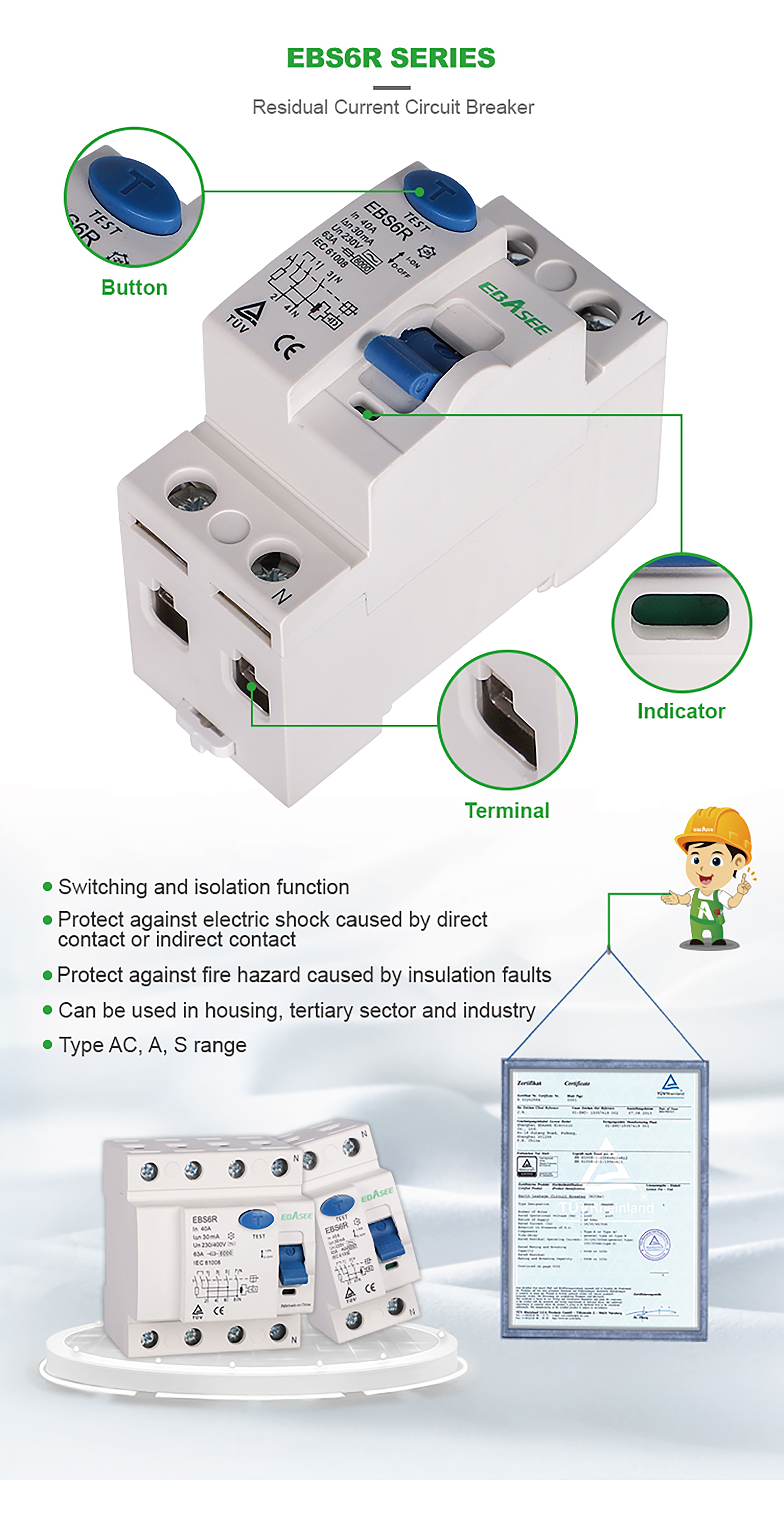

The EBS6R series is designed for reliable switching and isolation in housing, tertiary sector, and industrial applications. It provides critical protection against electric shocks from direct or indirect contact while preventing fire hazards caused by insulation faults. This circuit breaker is engineered for seamless compatibility with standard miniature circuit breakers.
Electrical Specifications
Rated Current (In)
- 25
- 32
- 40
- 50
- 63
- Rated Voltage (Un)
- 230/400V AC 50/60Hz
- Short-Circuit Capacity
- 6000 A
Physical & Standards
International Standards
IEC61008-1CETÜV
- Pole Configuration
- 2P4P
Protection Features
Key Protection Functions
- Switching and isolation function
- Protection against direct/indirect electric shock
- Prevention of fire hazards from insulation faults
- Overload and short-circuit protection
