Remote I/O Module for Industrial Automation
This remote I/O module facilitates flexible and distributed data acquisition and control. It is designed for various industrial automation applications, featuring multiple communication interfaces and I/O channels.
Technical Specifications
Product Overview
Industrial Remote I/O Module

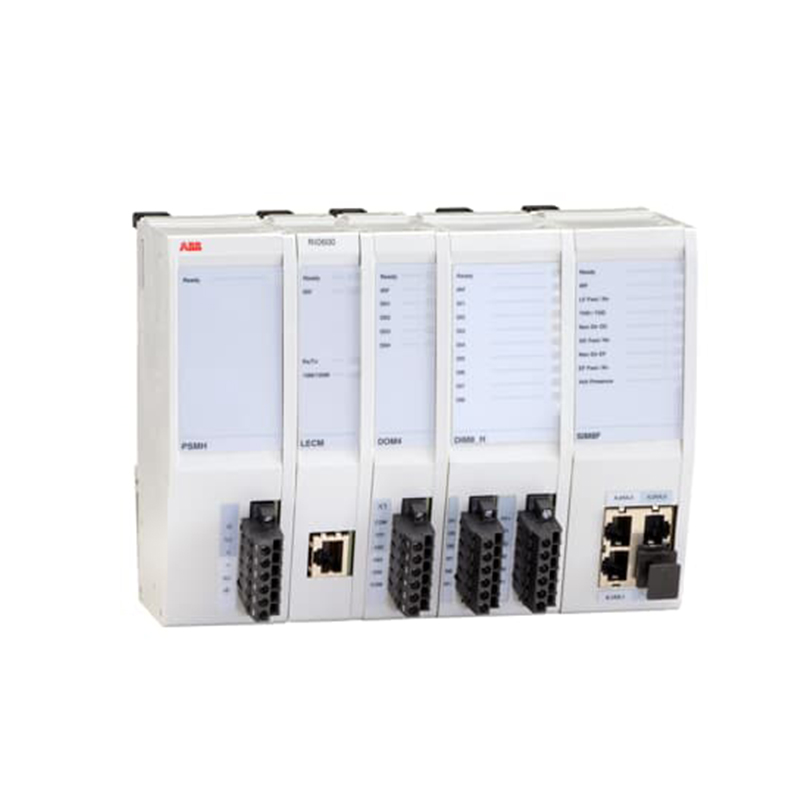

The RIO600 is a versatile remote I/O module designed to enhance digital and analog connectivity in substation automation. By integrating seamlessly with existing protection relays and control systems via IEC 61850 and Modbus TCP, it drastically reduces complex substation wiring. The unit provides robust fault management through advanced directional earth fault indication and features a web-browser-based HMI for secure, real-time local and remote operations.
Communication & Protocols
- Communication Protocols
- IEC 61850Modbus TCP
- Communication Performance
- Type 1A, class P1
Operational Features
Core Functionalities
- Web-browser-based human machine interface (HMI)
- Fault Passage Indication (FPI) for grid automation
- High-sensitivity directional earth fault indication
- Real-time communication between protection and control relays
Environmental & Reliability
Electromagnetic Compatibility (EMC)
| Metric | Specification |
|---|---|
| Electrostatic Discharge | 8 kV (Air discharge) |
| Radiated RF Field | 10 V/m |
| Magnetic Field (50Hz) | 100 A/m (Continuous) |
Electrical Standards
Surge Immunity
4 kVp
Auxiliary Power Supply (L-Gnd)
2 kVp
Auxiliary Power Supply (L-L)
