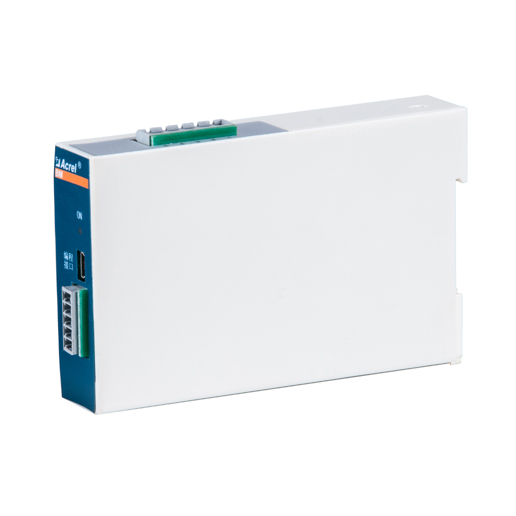

DIN Rail Analog Signal Isolator
This signal transmitter accurately measures DC analog signals, Pt100 resistance, and potentiometers. It isolates and transmits these signals into a standard analog output for connection to meters, PLCs, and computer systems.
Technical Specifications
Product Overview
High-Performance Signal Isolation
The BM series analog signal isolators are designed to measure both electrical and non-electrical parameters with high accuracy and speed. These devices convert measured values into standard analog outputs, facilitating seamless integration with PLC systems, A/D converters, and digital instruments. Ideal for automation in power, railway, and petrochemical industries, they provide essential protection against ground loops and voltage spikes.
Mounting Type
DIN Rail
Core Performance
Key Performance Metrics
0.15 %
Accuracy
500 ms
Response Time
2 kV
Isolation Voltage
Technical Specifications
- Maximum Output Current
- 24 mA
- Temperature Drift
- 200 ppm
- Set Point Adjustment
- 0-110% of input range
Load & Relay Ratings
Load Resistance Ratings
| Voltage Type | Rating |
|---|---|
| AC 220V | 5A |
| AC 125V | 10A |
| DC 30V | 5A |
Environmental Conditions
- Working Temperature
- 0 to 70℃
- Storage Temperature
- -20 to 85℃
Application Areas
- Target Industries
- PowerRailwayPetrochemicalMetallurgicalFood WarehousingIndustrial Automation
Input/Output Support
Supported Signal Types
- 4-20mA DC
- 0-10V DC
- PT100 RTD
- Voltage/Current Parameters
- Temperature/Resistance
