Technical Specifications

Product Overview

Professional Electrical Protection

This Residual Current Circuit Breaker with Overcurrent Protection (RCBO) provides comprehensive safety by combining the functions of an MCB and an RCD in one compact unit. It is engineered to protect electrical circuits against overload, short-circuit, and dangerous residual currents. Ideally suited for residential, commercial, and industrial infrastructure, this device ensures reliable performance, quick fault detection, and increased safety against fire and electric shock.

Technical Specifications

Breaking Capacity

6,000 A

Breaking Capacity

Available Rated Currents

6
10
16
20
25
32

Poles: 1P+N
Rated Voltage: 240 V
Tripping Characteristics: BC

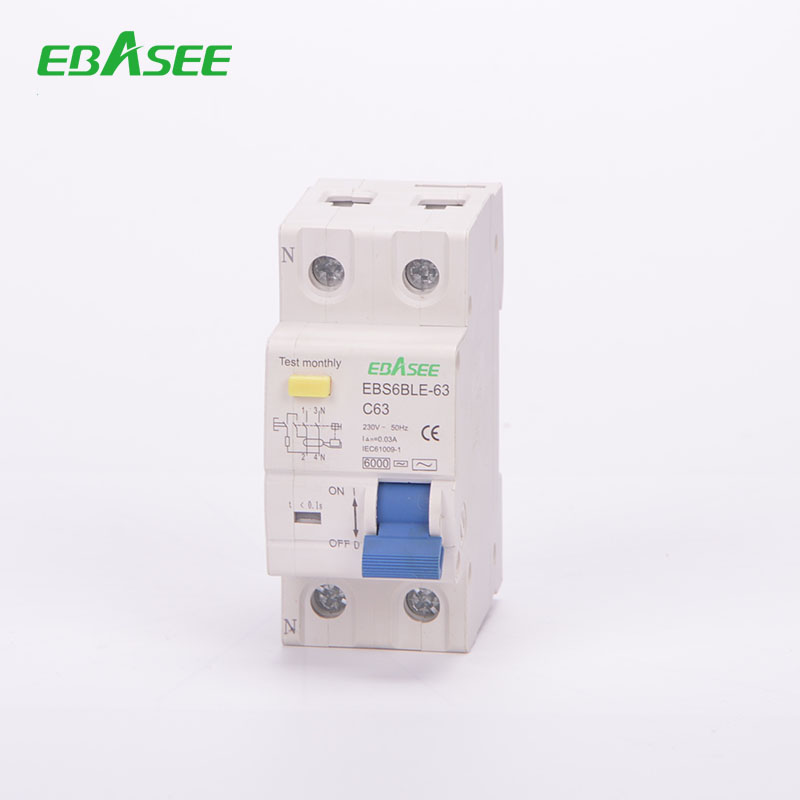

RCBO close-up showing technical markings and test button — High-visibility design featuring a monthly test button and clear ON/OFF status indicator.

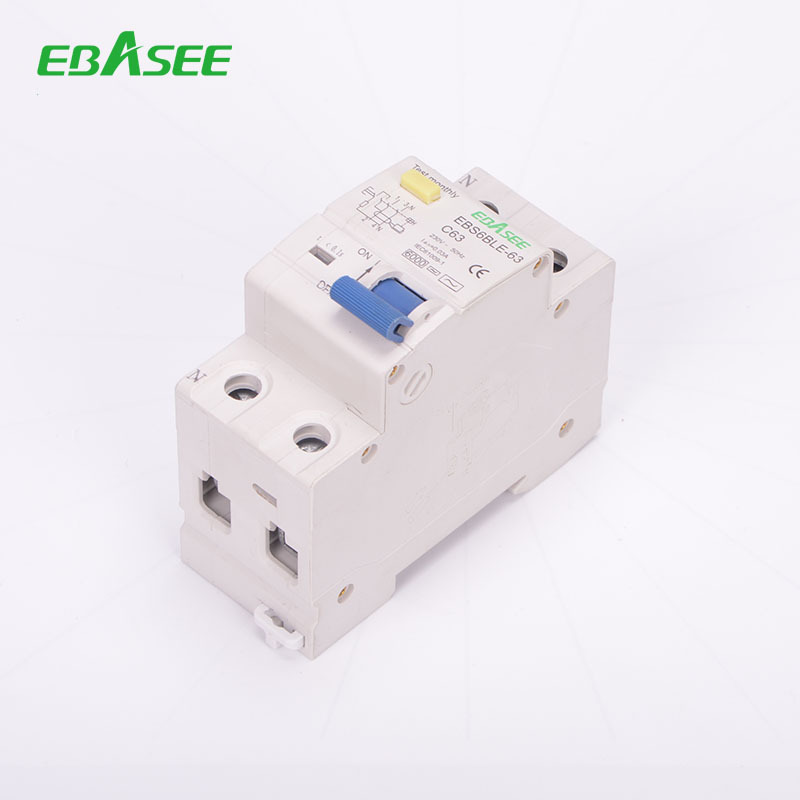

RCBO front view for installation reference — Compact 1P+N RCBO unit designed for efficient rail mounting.

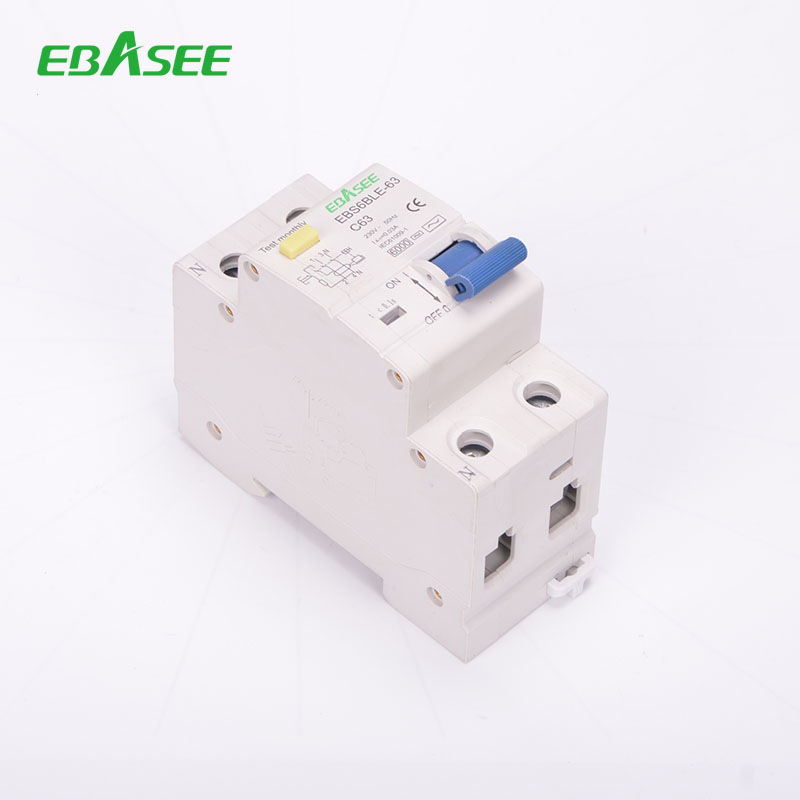

Robust terminal construction for secure electrical connections.

Compliance and Safety

Certifications

CERoHSTUVCQC

Standards: IEC61009-1
Response Time: < 0.1s

Interested in Sourcing This Product?

Submit a request to connect with verified manufacturers who produce this product.

RCBO Residual Current Circuit Breaker with Overcurrent Protection

This RCBO provides both residual current and overcurrent protection. The device protects against electric shock caused by direct or indirect contact, as well as fire hazards from insulation faults.

Request a Quote Download PDFPDF

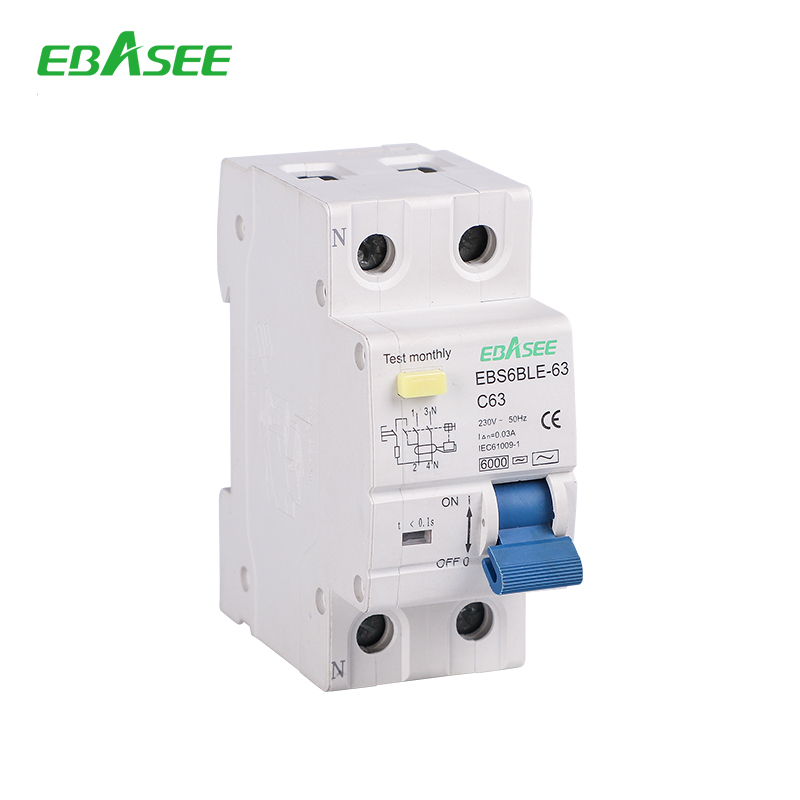

RCBO Residual Current Circuit Breaker with Overcurrent Protection - Image 1
