Railway Axle Counting System

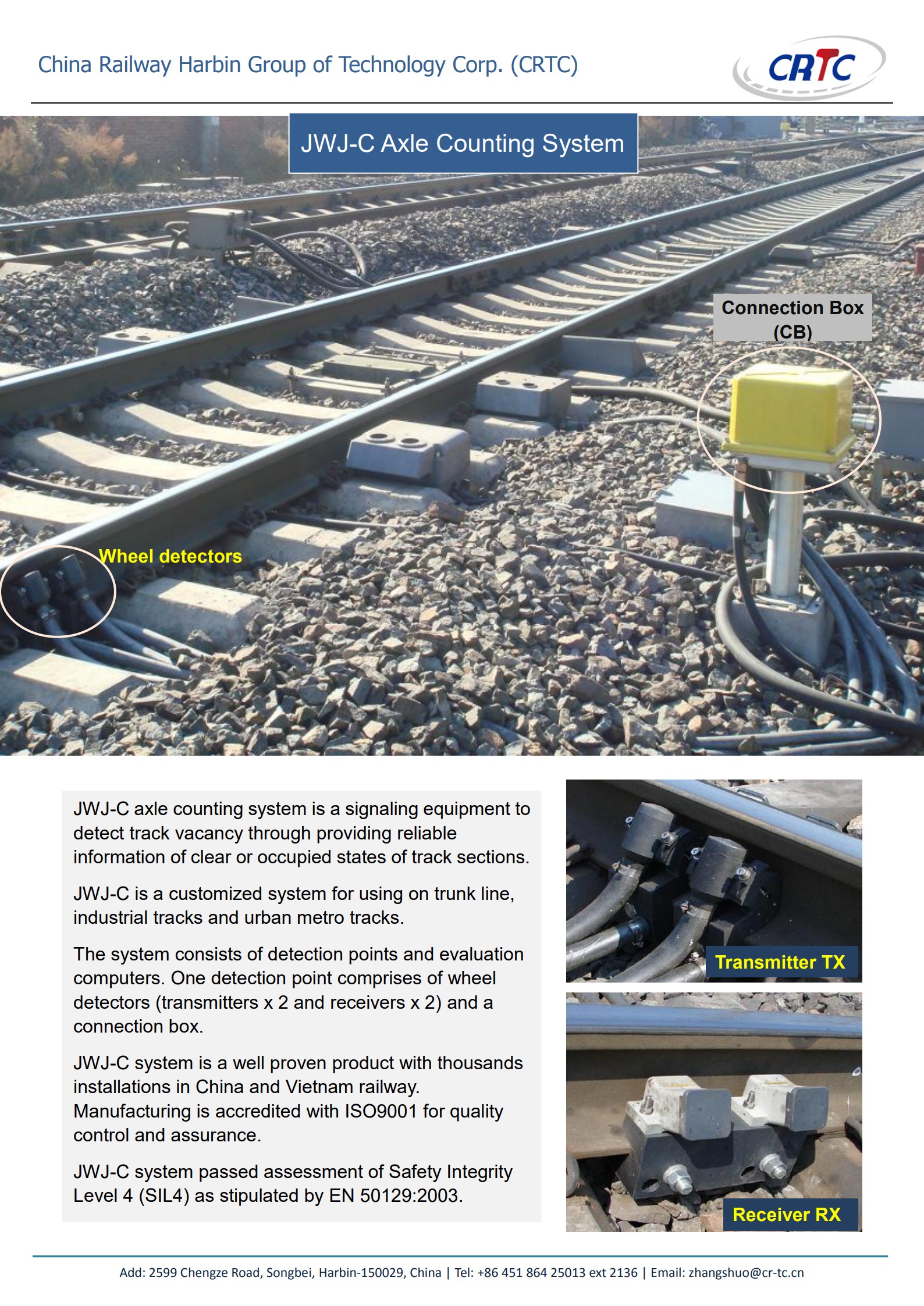

This signaling equipment detects track vacancy by providing information on clear or occupied track sections. The system utilizes wheel sensors to count axles, ensuring accurate train detection and tracking.
Technical Specifications
Overview
High-Reliability Axle Counting System
This advanced signaling equipment is designed to detect track vacancy by providing reliable information on the clear or occupied states of track sections. It is a customized solution suitable for trunk lines, industrial tracks, and urban metro systems, featuring a redundant design and fail-safe operation to ensure high economic efficiency and low life cycle costs. The system utilizes robust wheel sensors and evaluation computers to provide critical data for signaling, safety, and traffic management.
Certifications & Standards
- Compliance & Quality
- SIL4EN 50129:2003ISO9001
Performance Metrics
Key Performance Metrics
175,000 hours
MTBF
65,536 axles
Capacity per Section
1,000,000,000 axles
Counting Capability

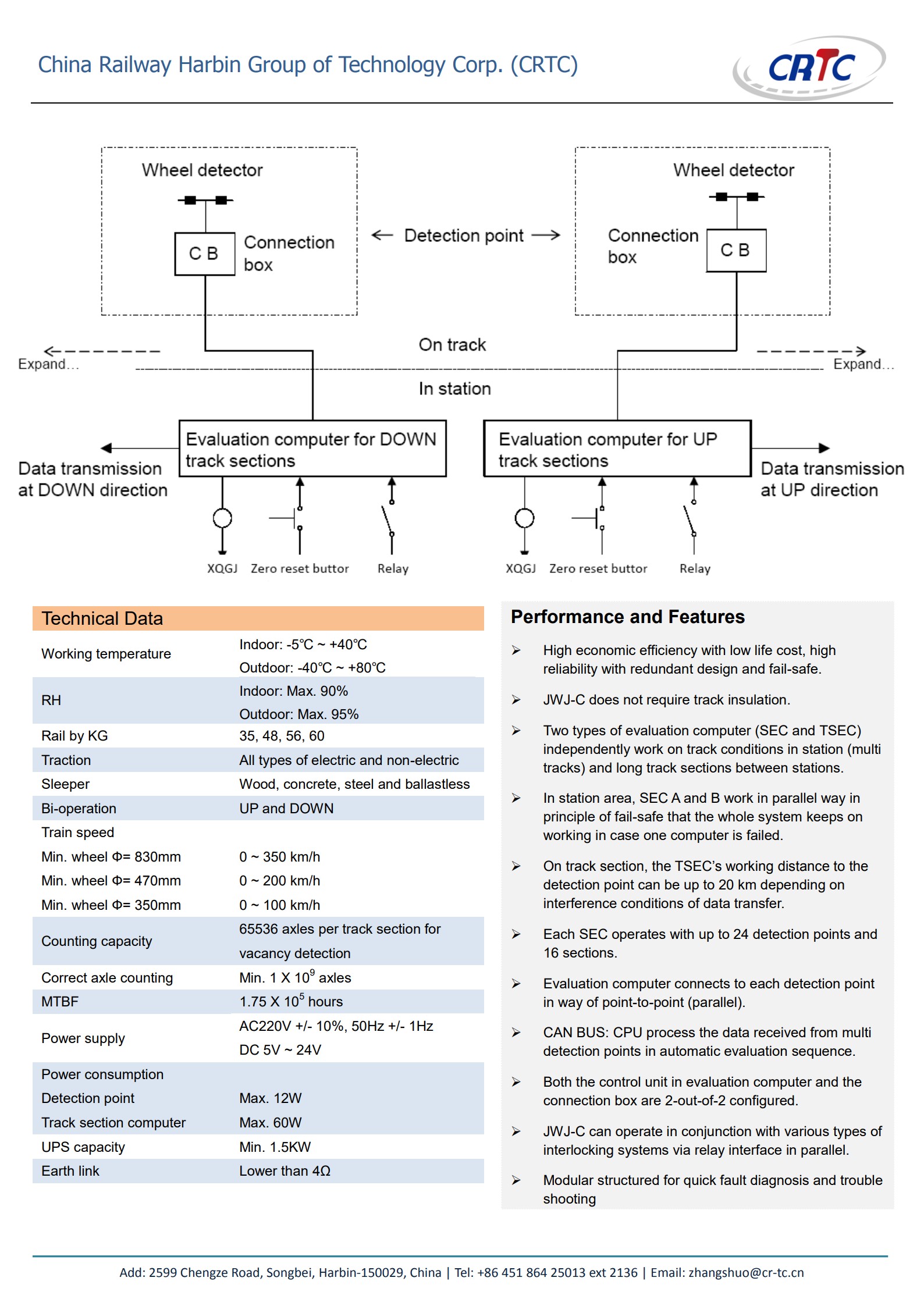

Technical Specifications
Speed and Wheel Compatibility
| Min. Wheel Diameter | Max. Train Speed |
|---|---|
| 830 mm | 0-350 km/h |
| 470 mm | 0-200 km/h |
| 350 mm | 0-100 km/h |
Operating Environment
- Indoor Temp: -5°C to +40°C
- Outdoor Temp: -40°C to +80°C
- Indoor Humidity: Max 90%
- Outdoor Humidity: Max 95%
Power Requirements
- AC Power: 220V ±10%, 50Hz ±1Hz
- DC Power: 5V - 24V
- Detection Point Consumption: Max 12W
- Track Section Computer Consumption: Max 60W
Compatibility
Supported Rail Sizes
35 KG48 KG56 KG60 KG
- Supported Sleeper Types
- WoodConcreteSteelBallastless
