Pressure Transmitter for Industrial Applications
This pressure transmitter is designed for accurate and reliable pressure measurement in various industrial applications. Its stainless steel construction ensures durability and corrosion resistance.
Technical Specifications
Product Overview

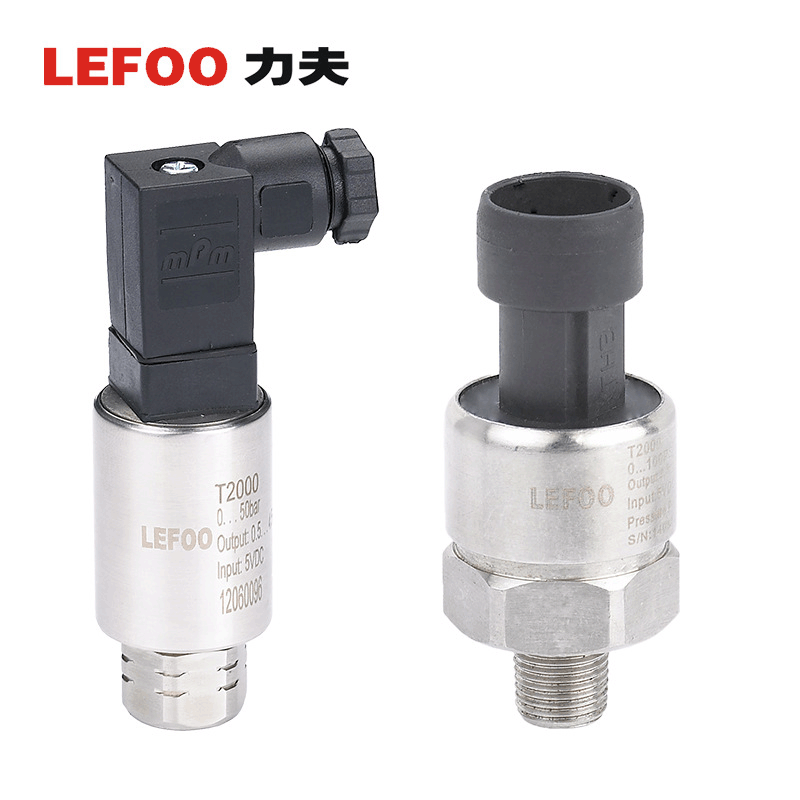

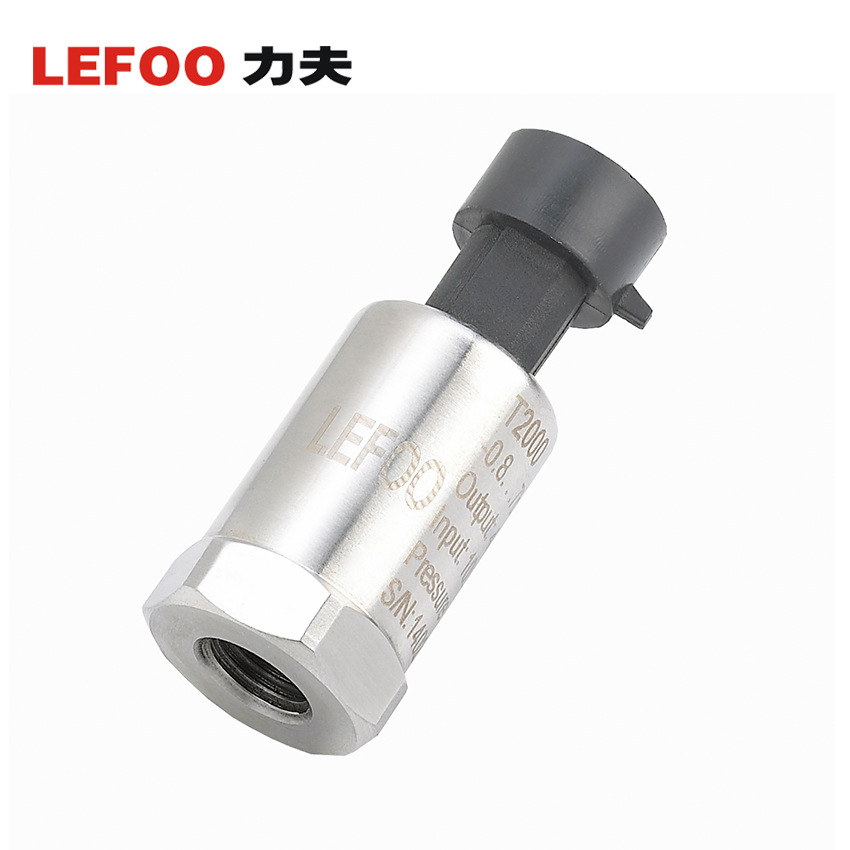

High-Precision Industrial Pressure Transmitter
The T2000 series is a professional-grade pressure transmitter featuring a temperature-compensated ceramic sensor, laser-trimmed for superior span and offset accuracy. Its compact design allows for seamless integration into confined spaces, making it an ideal choice for automation, compressors, hydraulic pumps, and engine control systems. Built with a 1Cr18Ni9Ti stainless steel enclosure, this device offers exceptional durability in demanding industrial environments.
Key Performance Metrics
Technical Capabilities
0.5 % F.S
Accuracy
10 ms
Response Time
100 MΩ
Insulation Resistance
Operating Conditions
Temperature Tolerances
| Environment | Range |
|---|---|
| Medium Temperature | -40°C to +100°C |
| Compensated | -10°C to +80°C |
| Storage | -50°C to +125°C |
Technical Specifications
Pressure Type
Gauge Pressure
Output Signals
- 4-20mA (2 wire)
- 0.5-4.5V (3 wire)
- 0/1-5V (3 wire)
- 0-10V (3 wire)
- Protection Rating
- IP67
- Process Connections
- G1/4NPT1/4M20×1.5G1/27/16-20UNF
