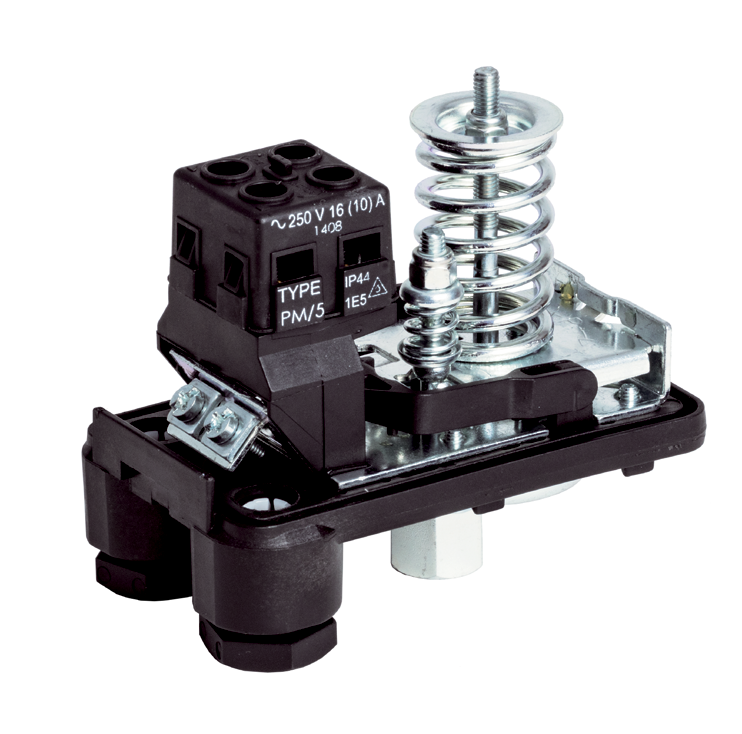

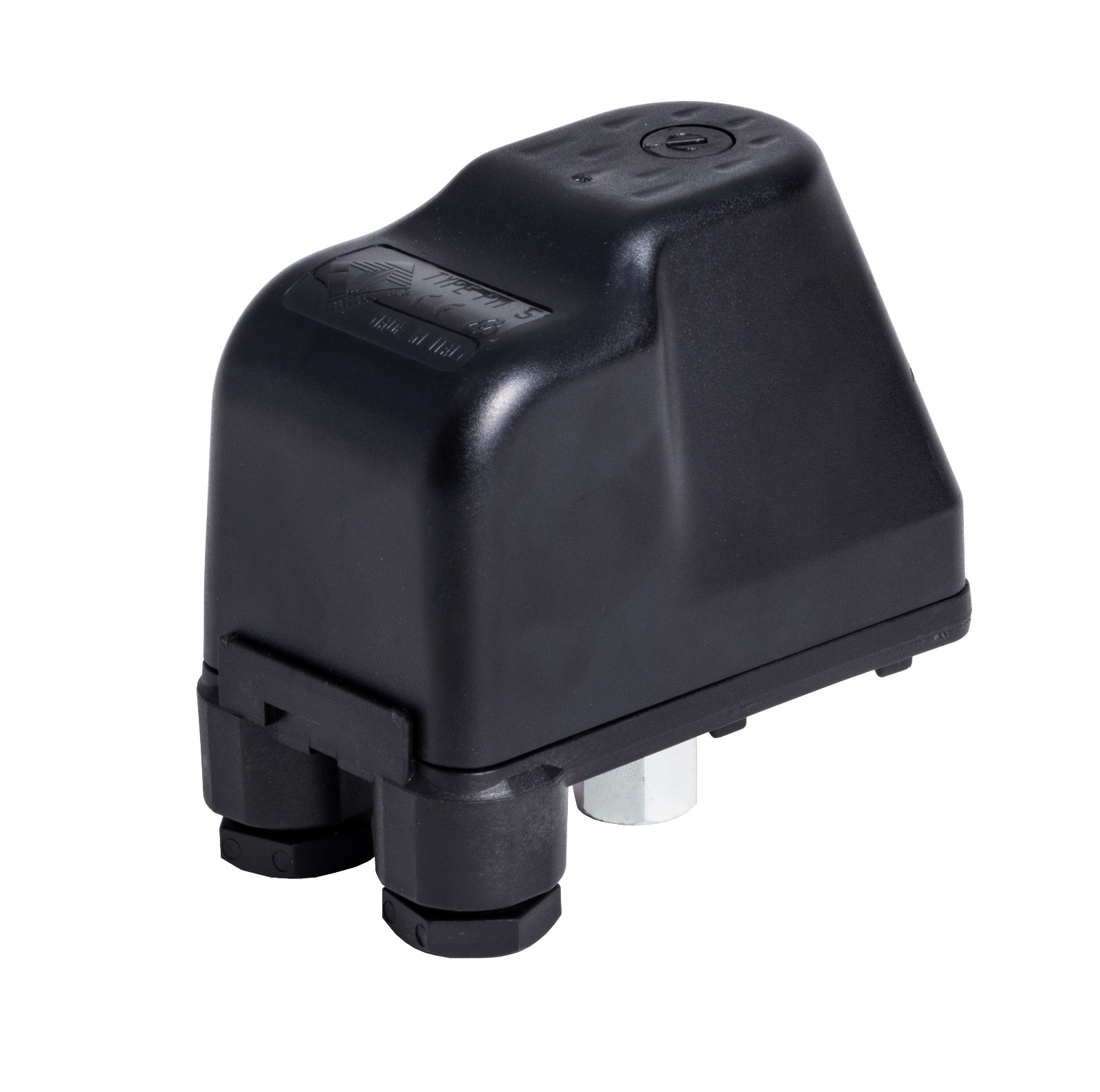

Pressure Switch for Booster Sets
This pressure switch is designed for booster sets and fire fighting units. It automatically ensures the start and stop functions of the electric pump according to the set pressure values.
Technical Specifications
Overview
Professional Grade Pressure Control
This electromechanical pressure switch is engineered for high-performance booster sets and fire-fighting systems. It enables precise, automatic start and stop functions for electric pumps based on customizable pressure parameters. Featuring robust construction with high-quality contact materials and corrosion-resistant components, this switch ensures reliable operation in demanding industrial environments.
Technical Specifications
Electrical Ratings
16 A
Rated Current
250 V
Rated Voltage
Environmental Conditions
55 °C
Max Fluid Temp
55 °C
Max Ambient Temp

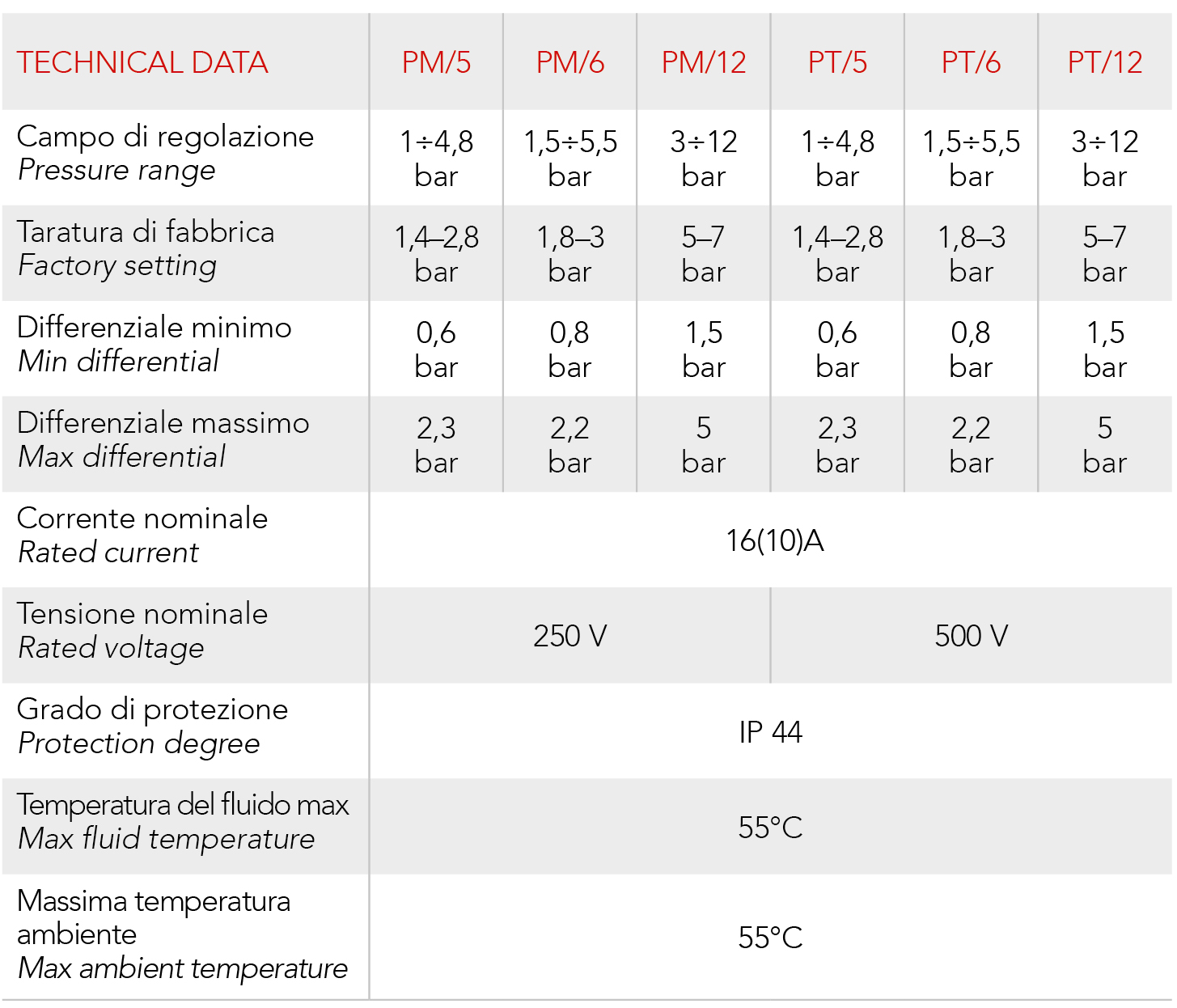

Performance Data Table
| Metric | Range |
|---|---|
| Pressure Range | 1 - 12 bar |
| Factory Setting | 1.4 - 7 bar |
| Min Differential | 0.6 - 1.5 bar |
| Max Differential | 2.2 - 5 bar |
Construction & Materials
Protection Degree
IP44
- Contact Material
- Brass alloy with Ag-Ni surfacing
- Membrane Construction
- NBR white membrane with PA (nylon) insert
Applications
Typical Applications
- Booster Sets
- Fire Fighting Units
