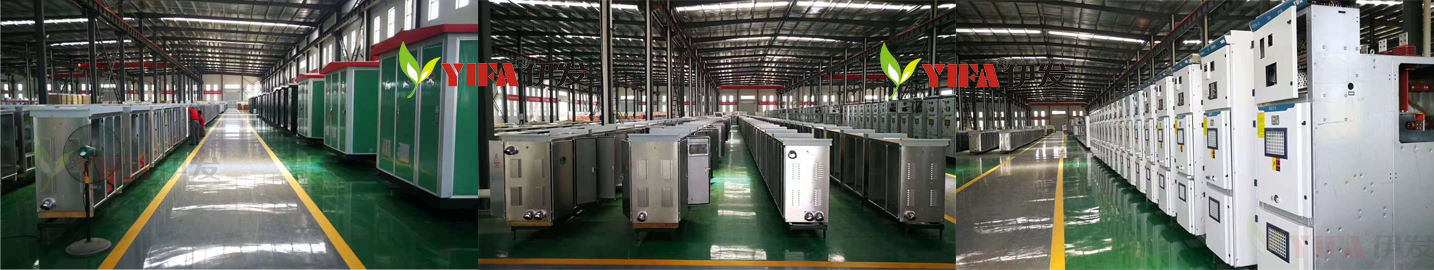

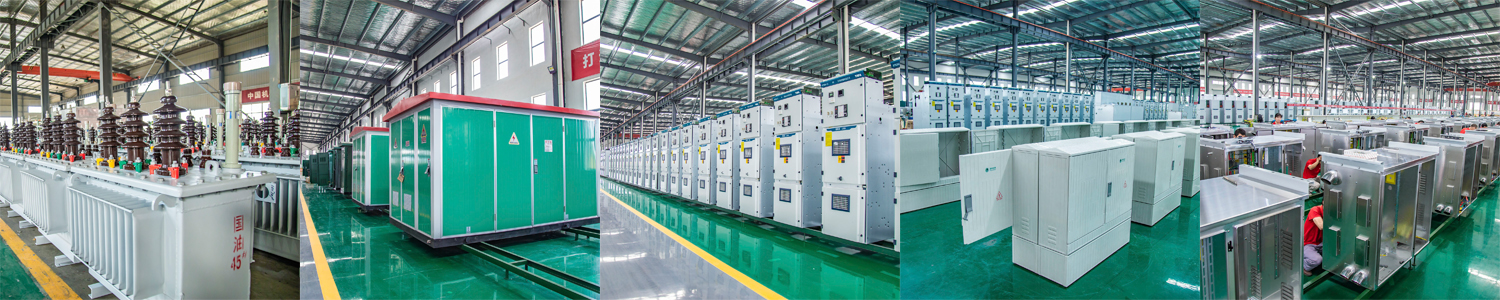

Pre-Installed Box-Type Substation
This pre-installed box-type substation integrates high-voltage switchgear, transformers, and low-voltage switchgear into a single unit. It offers convenient installation, reduced land occupation, and minimal maintenance.
Technical Specifications
Overview
Intelligent Pre-Installed Substation
This pre-installed box-type substation provides a comprehensive, all-in-one solution for power distribution, integrating high-voltage, transformer, and low-voltage equipment into a compact enclosure. Designed for high reliability, it features intelligent monitoring and control systems to optimize safety and performance. Its modular, pre-fabricated design significantly reduces installation time, land footprint, and ongoing maintenance requirements.
Operational Metrics
Rated Voltage by Component
| Component | Voltage |
|---|---|
| HV electrical equipment | 7.2, 12 kV |
| Transformer | 6/0.4, 10/0.4 kV |
| LV electrical equipment | 0.4 kV |
Capacity
Rated Capacity Ranges
- Transformer (High Voltage side): 200-1250 kVA
- Transformer (Low Voltage side): 50-400 kVA
Performance
Key Electrical Performance
630 A
Max Rated Current (HV)
3,000 A
Max Rated Current (LV)
63 kA
Max LV Breaking Current
Features
- Key Characteristics
- Intelligent ControlCompact DesignEnvironmentally ConsciousLow MaintenanceEasy InstallationLong Service Life
