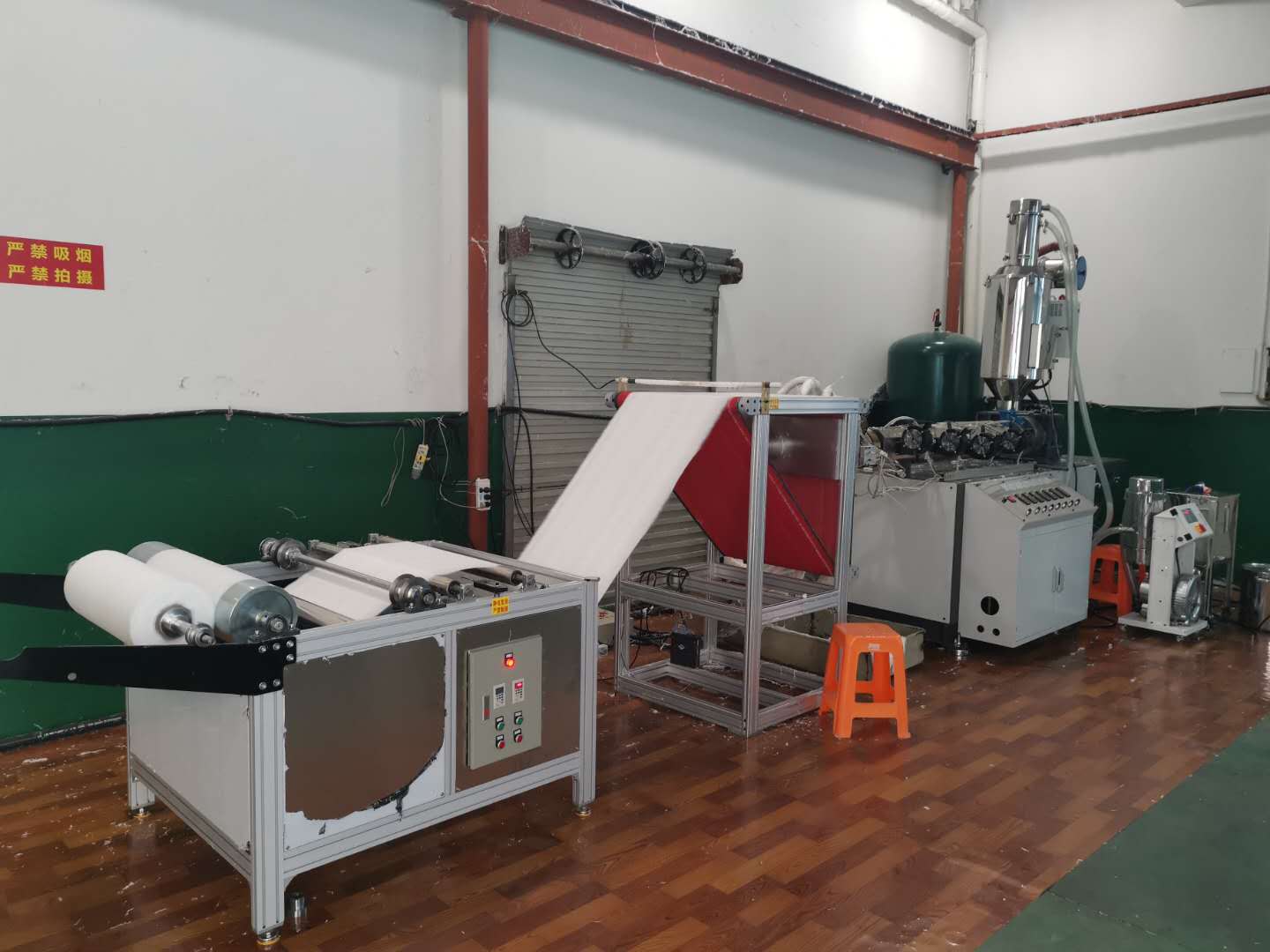

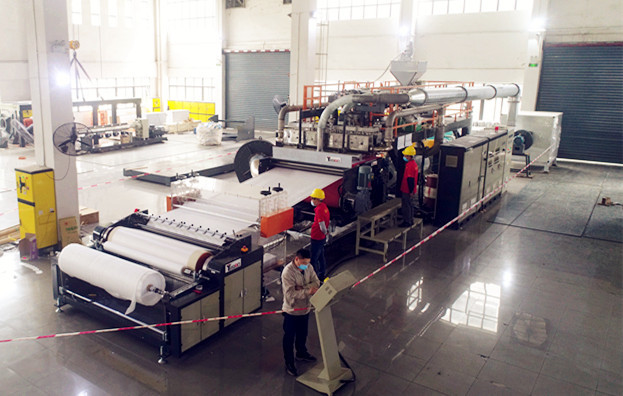

PP Meltblown Nonwoven Fabric Production Line
This PP meltblown nonwoven fabric production line creates high-quality nonwoven fabric. It boasts a capacity of 1500kg per day and is suitable for producing materials for medical masks, filters, and hygiene products.
Technical Specifications
Overview
High-Capacity Meltblown Production

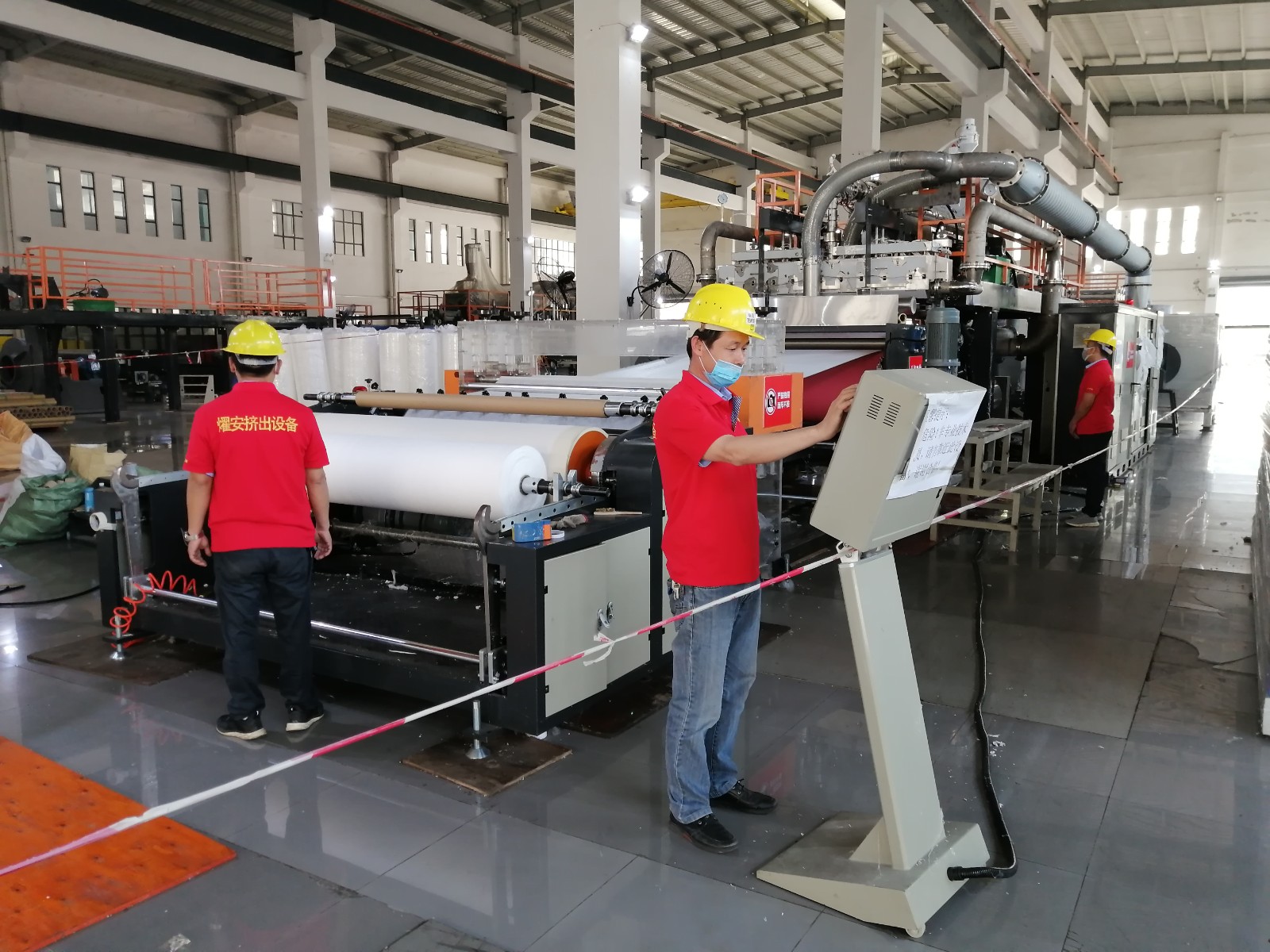

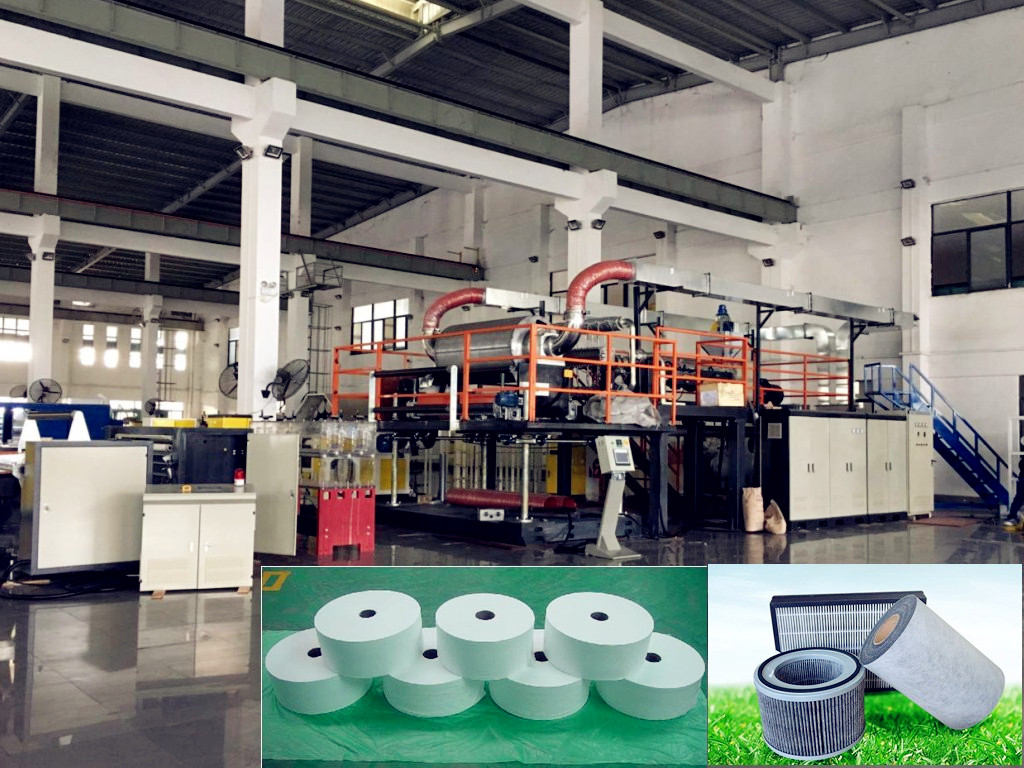

The AF-1600mm is a high-performance production line designed for the continuous manufacturing of polypropylene meltblown non-woven fabrics. This automated system transforms PP chips into high-quality filter media through a precise extrusion and spinning process, delivering a daily output of 1500kg. Engineered for reliability and ease of use, the line features PLC touch-screen controls and a well-structured design suitable for large-scale industrial applications.
Key Performance Metrics
Performance Highlights
1,500 kg/day
Daily Capacity
1,600 mm
Standard Width
380 V
Operating Voltage
Technical Specifications
Embossing Type
Diamond
- Raw Material
- Polypropylene (PP) chips MFI 1200-1500
- Fabric Weight Range
- 10g/sm - 200g/sm
- Adjustable Fabric Width
- 1.6m to 3.2m
- Machine Power Consumption
- 600kw ~ 1200kw
- Color Versatility
- Capable of producing over 30 kinds of colors
Production Features
System Features
- Highly automated production line
- PLC controlled with touch-screen interface
- High-performance control elements from well-known makes
- Customizable main frame and auxiliary equipment configuration
- Integrated edge material recycling
Production Process
Production Workflow
- Melt Extrusion
- Filter Metering
- Meltblow Device Processing
- Web Forming
- Winding and Slitting
- Finished Product Packaging
Applications
- Application Fields

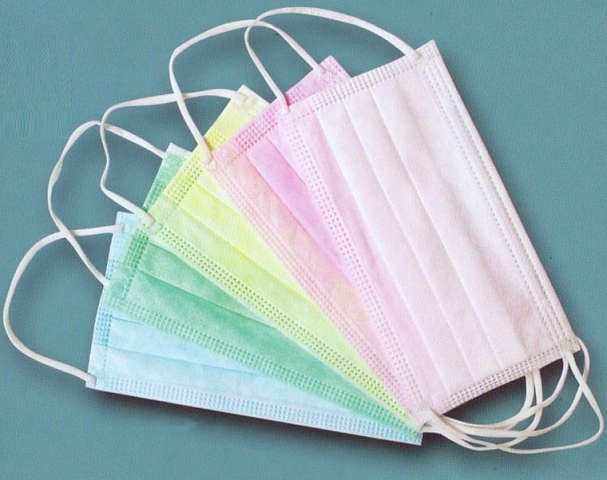

- Medical MasksGarment InsulationCar CoversOil Absorbent FeltBaby DiapersGas FiltersDisposable Products
