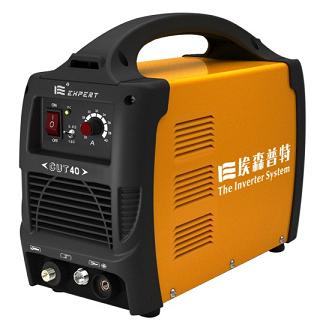

Portable Plasma Cutting Machine
This plasma cutting machine is compact and portable, suitable for a variety of metal cutting tasks. It utilizes inverter technology for efficient power conversion and includes an integrated cooling system.
Technical Specifications
Overview
Versatile Portable Plasma Cutting Solution
This series of portable plasma cutting machines offers a compact and lightweight design, making them ideal for field operations and mobile workshop use. They deliver high-speed cutting performance that significantly outpaces traditional gas cutting methods while maintaining high precision and minimal material distortion. Designed for durability, these units feature integrated multi-protective circuits to ensure safe, dependable operation across a wide range of conductive metals.
Key Performance Metrics
Performance Highlights
20 mm
Max Cutting Thickness
60 %
Duty Cycle
85 %
Max Efficiency
Technical Specifications
Model Specifications Comparison
| Parameter | CUT-40 | CUT-60 |
|---|---|---|
| Input Voltage | 1 Phase AC220V±10% | 3 Phase AC380V±10% |
| Rated Input Current | 30 A | 12 A |
| Output Current Range | 20-40 A | 25-60 A |
| Rated Output (A/V) | 40/96 | 60/104 |
| No-load Voltage | 230 V | 280 V |
| Max Cutting Thickness | 12 mm | 20 mm |
| Efficiency | 80% | 85% |
- Frequency
- 50/60 Hz
Material Compatibility
- Suitable Materials
- Common SteelStainless SteelAluminumCopperCast Iron
Product Features
Core Advantages
- Inverter technology for efficient power conversion
- High successful rate of arc striking
- Smooth cutting surface with small distortion
- Inner installing multi-protective circuit for safety
- Integrated cooling system for enhanced durability
- Built-in air regulator and gauge for precise control
Operational Characteristics
Portability
Small VolumeLight WeightPortableField Ready
