Technical Specifications
Product Overview
Professional Portable Plasma Cutter
This portable plasma cutting machine utilizes advanced IGBT inverter and PWM control technology to deliver precise, constant current output for high-quality metal cutting. Designed for versatility, it is capable of cutting various metals including carbon steel, stainless steel, cast iron, and aluminum alloys. The unit features a compact, lightweight design that offers up to 30% energy savings, while robust protection functions guard against over-current and overheating for reliable, long-term operation.
Technical Specifications

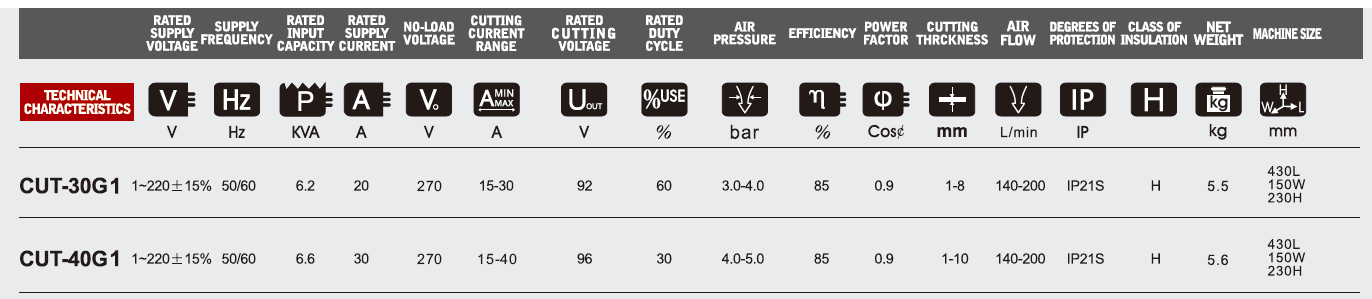

Model Specifications
| Feature | CUT-30G1 | CUT-40G1 |
|---|---|---|
| Cutting Current Range | 15-30 A | 15-40 A |
| Duty Cycle | 60 % | 30 % |
| Cutting Thickness | 1-8 mm | 1-10 mm |
| Net Weight | 5.5 kg | 5.6 kg |
- Supply Voltage
- 1~220V ±15%
- Supply Frequency
- 50 Hz
- Machine Dimensions
- 430 x 150 x 230 mm
Performance & Safety
Protection Class
IP21SWaterproofAnti-corrosionAnti-vibration
Safety Features
- Over-current protection
- Over-heat protection
- Constant Current (CC) output
- Insulation Class
- H
Included Accessories
- Package Contents
- Electrode holderEarth clampWelding cableBrush hammerProtective maskCarton box
