Technical Specifications
Overview
Compact IGBT Inverter Welder
This portable MMA welding machine utilizes advanced IGBT inverter technology to deliver high-performance welding in a compact form factor. Designed for efficiency, it offers a high duty cycle and superior power utilization, making it an excellent choice for light to medium-duty welding tasks. It is specifically optimized for welding low carbon and low alloy steels, providing consistent arc stability and quality.

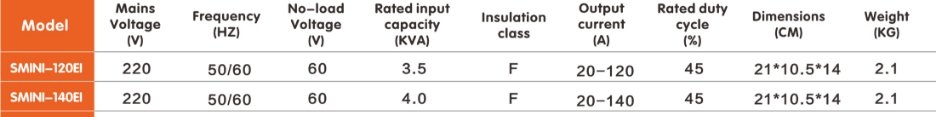

Technical Specifications
Model Specifications
| Feature | 120EI Model | 140EI Model |
|---|---|---|
| Input Capacity (KVA) | 3.5 | 4.0 |
| Output Current (A) | 20-120 | 20-140 |
| Mains Voltage (V) | 220 | 220 |
| No-load Voltage (V) | 60 | 60 |
| Duty Cycle (%) | 45 | 45 |
| Insulation Class | F | F |
Performance & Features
- Welding Capabilities
- MMA WeldingLow Carbon SteelLow Alloy SteelIGBT Technology
Physical Characteristics
Dimensions & Weight
21 cm
Length
10.5 cm
Width
14 cm
Height
2.1 kg
Weight
