Technical Specifications
Overview
Compact & Efficient Welding Solution

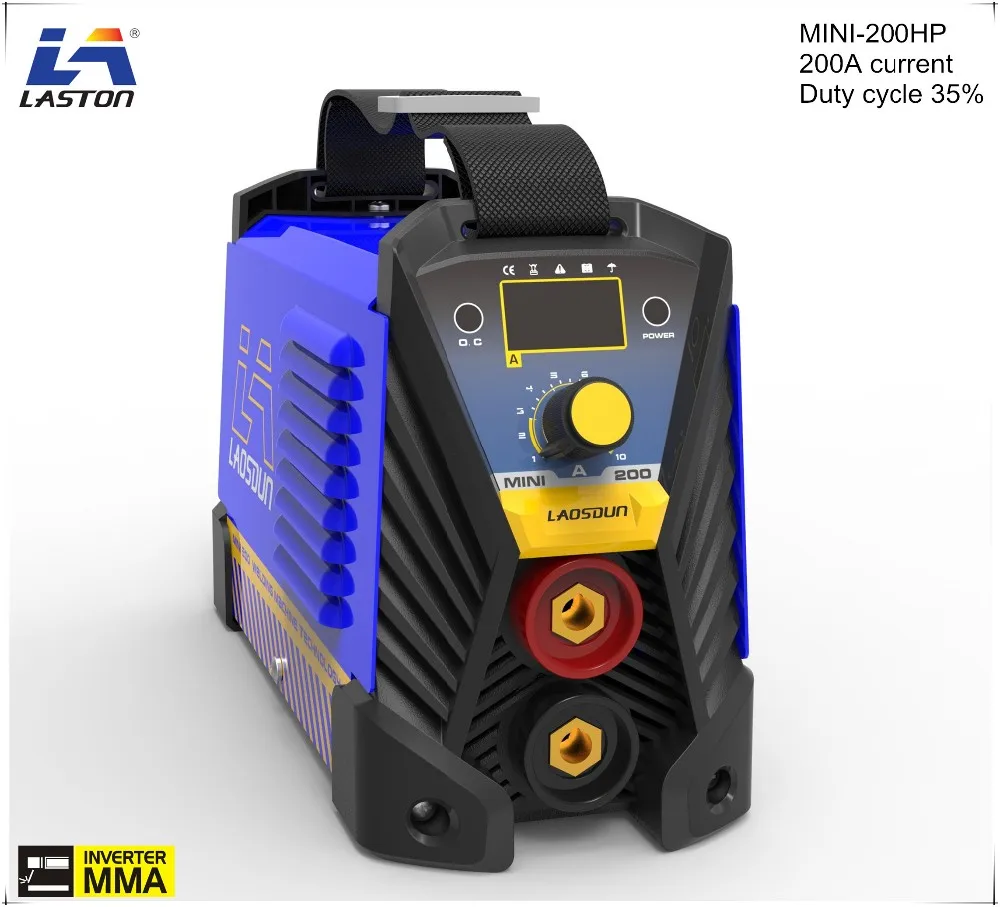

This portable IGBT inverter stick welder is engineered for high efficiency and energy savings in a compact form factor. Designed for versatility, it supports a wide range of ferrous metal welding tasks, including low carbon, medium carbon, and alloy steels. With integrated features like hot start, arc force, and overload protection, it provides a stable and reliable welding experience for both professional and DIY applications.
Technical Specifications
Key Performance Metrics
| Parameter | Value |
|---|---|
| Input Voltage | AC220V 50Hz |
| Current Range | 30-200A |
| Duty Cycle | 35% |
| No-Load Voltage | 56V |
| Protection Class | IP21S |
| Electrode Range | 1.6-5.0mm |
Physical Dimensions
310 mm
Length
195 mm
Width
230 mm
Height
5 kg
Weight
Performance & Features
Compatible Materials
Low Carbon SteelMedium Carbon SteelAlloy Steel
- Advanced Features
- IGBT Inverter TechnologyHot StartArc ForceAnti-stickThermostatic ControlFan CooledOverload Protection
Included Accessories
Package Contents

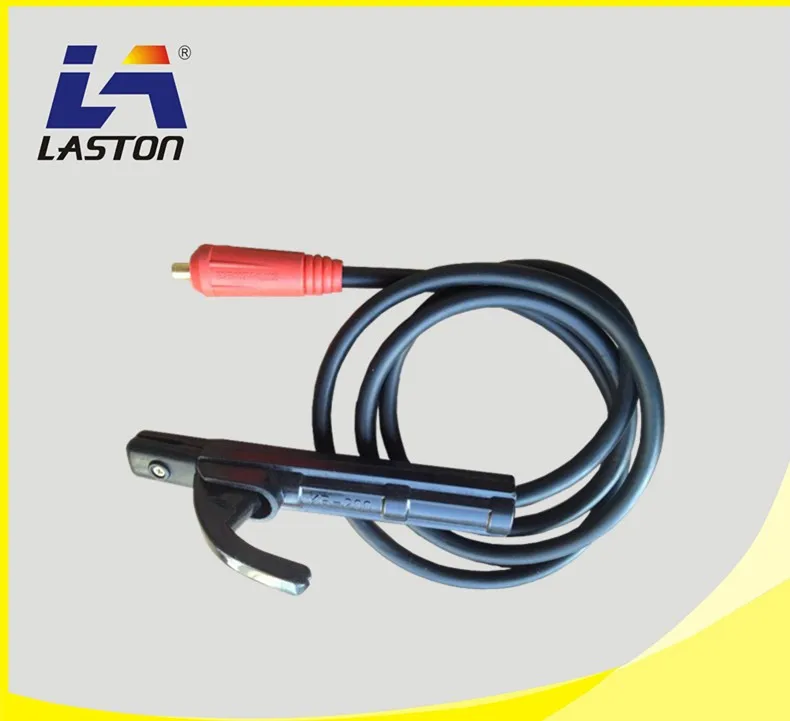

- Electrode holder
- Earth clamp
- Face mask
- Welding brush
