Technical Specifications
Product Overview
Professional IGBT Inverter Welder
This portable MMA arc welding machine utilizes advanced IGBT inverter technology to deliver high-performance welding in a compact form factor. Designed for efficiency, it offers a high power utilization rate and low open circuit loss, ensuring consistent welding quality. It is an ideal solution for welding low carbon and low alloy steels, making it suitable for workshops, construction sites, and maintenance operations.
Key Features
- Supported Applications
- MMA WeldingLow Carbon SteelLow Alloy SteelPortable Design
Technical Specifications
Power Requirements
220 V
Mains Voltage
50 Hz
Frequency
60 %
Rated Duty Cycle

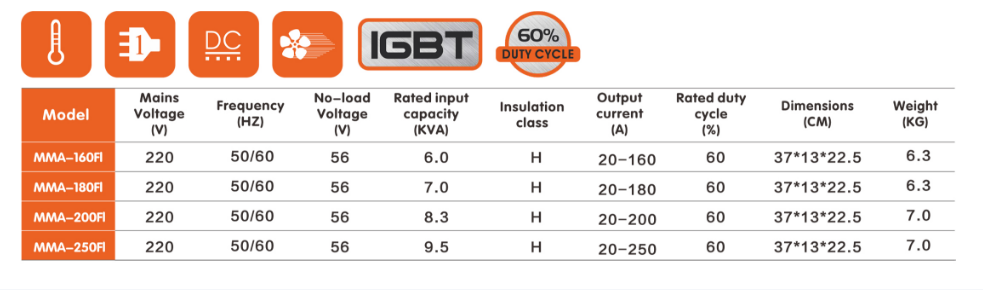

Model Specifications
| Model | Input Capacity | Current Range | Weight |
|---|---|---|---|
| MMA-160FI | 6.0 KVA | 20-160A | 6.3 KG |
| MMA-180FI | 7.0 KVA | 20-180A | 6.3 KG |
| MMA-200FI | 8.3 KVA | 20-200A | 7.0 KG |
| MMA-250FI | 9.5 KVA | 20-250A | 7.0 KG |
General Parameters
- No-load Voltage: 56V
- Insulation Class: H
- Dimensions: 37 x 13 x 22.5 CM
