Portable IGBT DC MMA Welding Machine
This portable welding machine utilizes IGBT inverter technology, providing a strong and compact design with a high duty cycle. It is suitable for MMA welding of low carbon and low alloy steel with various welding rods.
Technical Specifications
Product Overview
High-Efficiency Inverter Welding
This portable DC MMA welding machine utilizes advanced IGBT inverter technology to deliver a compact yet powerful welding solution. Engineered for high power utilization and minimal open circuit loss, it ensures stable arc characteristics and superior welding quality. The unit is versatile, making it suitable for welding low carbon and low alloy steels with a wide range of welding rods.
General Specifications
- Insulation Class
- H
- Rated Duty Cycle
- 60 %
- No-Load Voltage
- 56 V
- Mains Voltage
- 220 V
- Frequency
- 50/60 Hz
Model Comparison

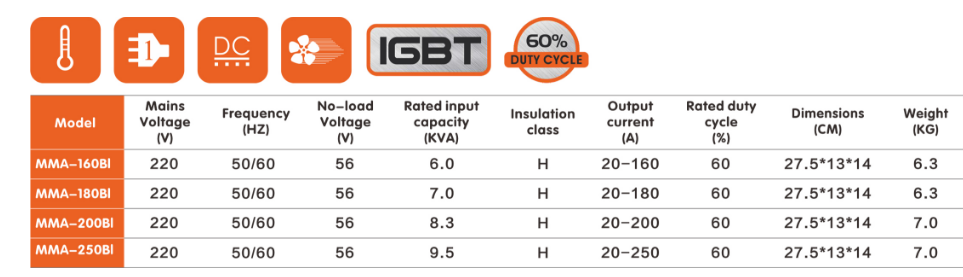

Technical Specifications by Model
| Model | Input Capacity (KVA) | Output Current (A) | Weight (KG) |
|---|---|---|---|
| MMA-160BI | 6 | 20-160 | 6.3 |
| MMA-180BI | 7 | 20-180 | 6.3 |
| MMA-200BI | 8.3 | 20-200 | 7 |
| MMA-250BI | 9.5 | 20-250 | 7 |
Physical Dimensions
- Dimensions
- 27.5 x 13 x 14 cm
Features
Core Technology
IGBT InverterDC MMA
- Suitable Materials
- Low carbon steelLow alloy steel
